18 21 051 Replacing all exhaust suspension elements

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of burning and other injuries!
These tasks should only be carried out on an exhaust system that has cooled down!

Necessary preliminary tasks:

Remove rear muffler or exhaust system, refer to 18 12 030 Removing and installing/replacing rear muffler (COOPER S)

Release screws (1) and remove reinforcement plate.

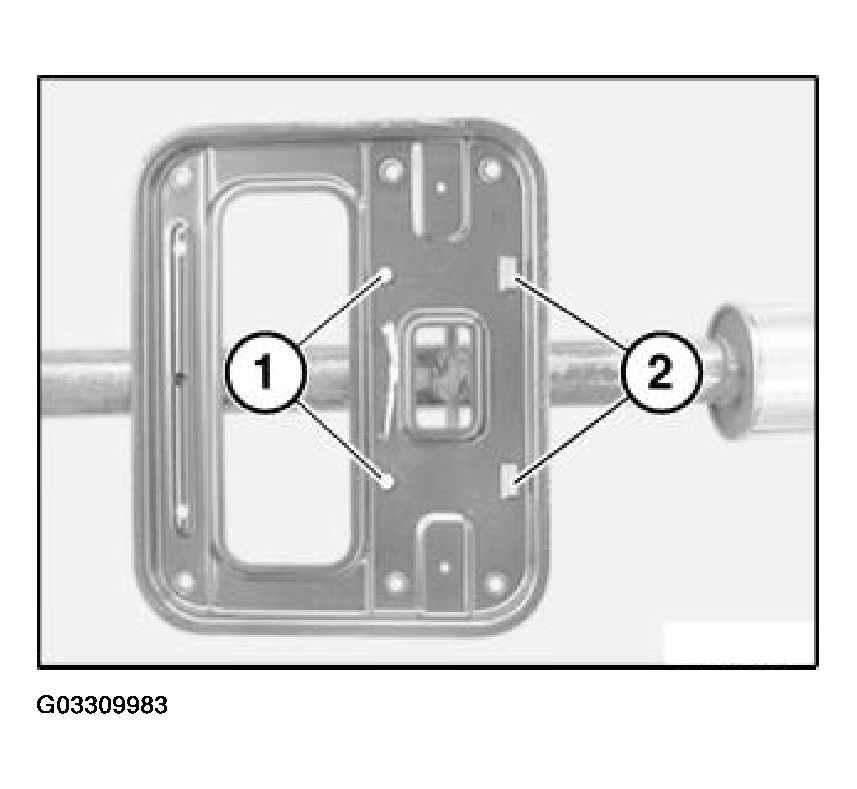

Fig 1: Removing Rubber Mount From Exhaust Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber mount (2) from exhaust pipe and replace.

Tightening torque 18 00 4AZ. Refer to EXHAUST SYSTEM - TIGHTENING TORQUES .

Remove rubber mount (1) of rear exhaust suspension element and mountings and replace.

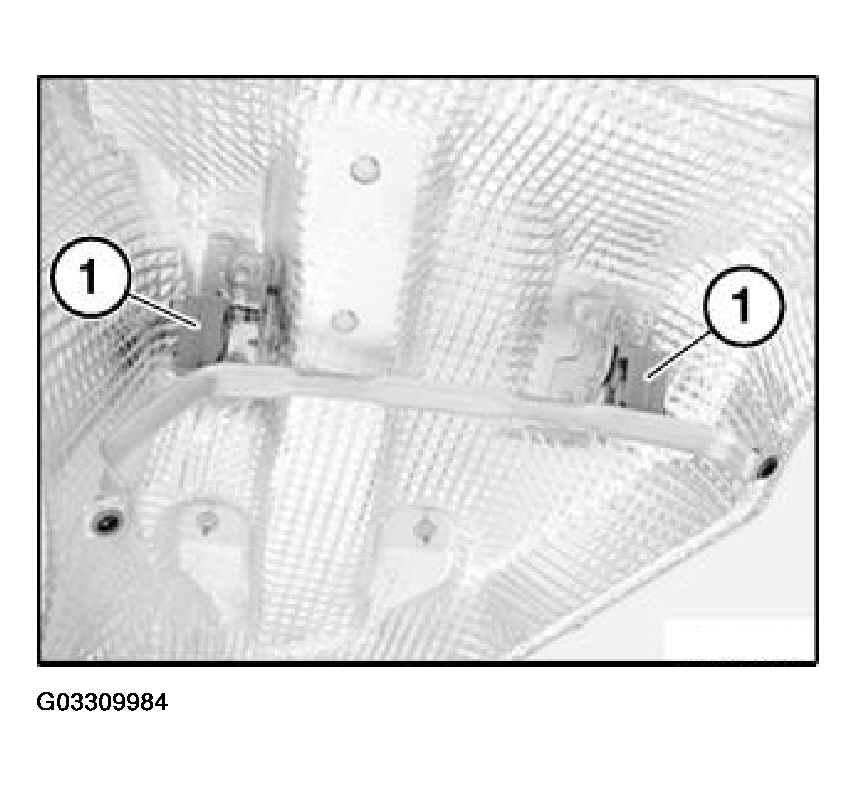

Fig 2: Removing Rubber Mount From Rear Exhaust Suspension Element

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Always replace rubber mount if rear muffler mounting or rear exhaust suspension element is replaced.
