17 51 104 Removing and installing/replacing sealing rings on intercooler

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Remove intercooler. Refer to 17 51 000 Removing and installing/replacing intercooler .

Remove screws (1) from brackets for sealing rings, remove brackets and sealing rings.

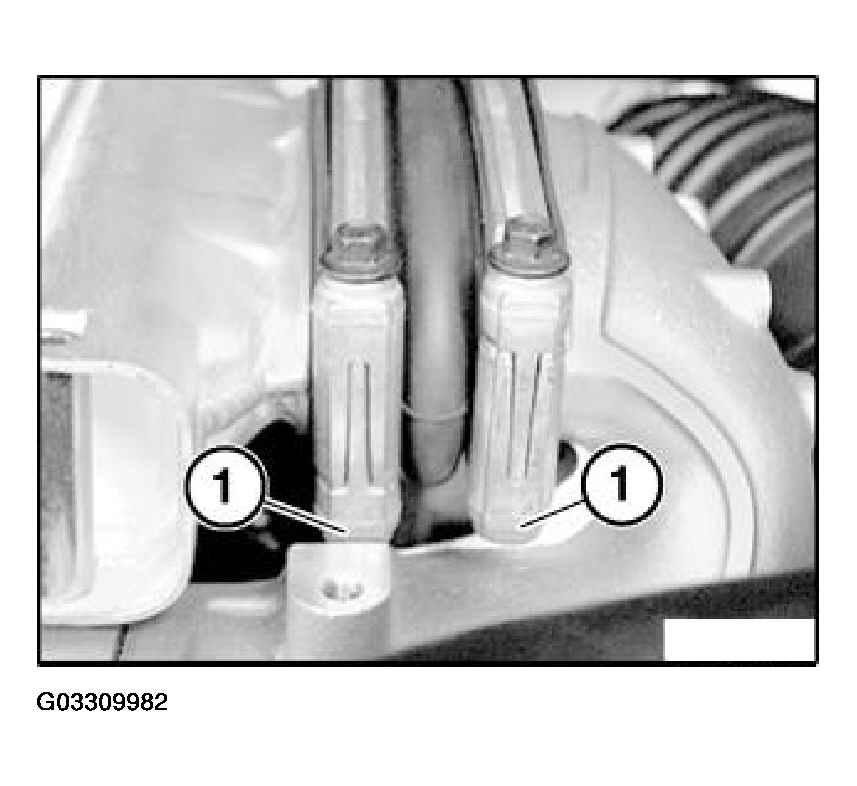

Fig 1: Removing Brackets & Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing rings.

Tightening torque 17 51 2AZ. Refer to COOLING SYSTEM - TIGHTENING TORQUES .

Installation:

Before installing sealing ring, first place sealing ring bracket on left side of intercooler on sealing ring.

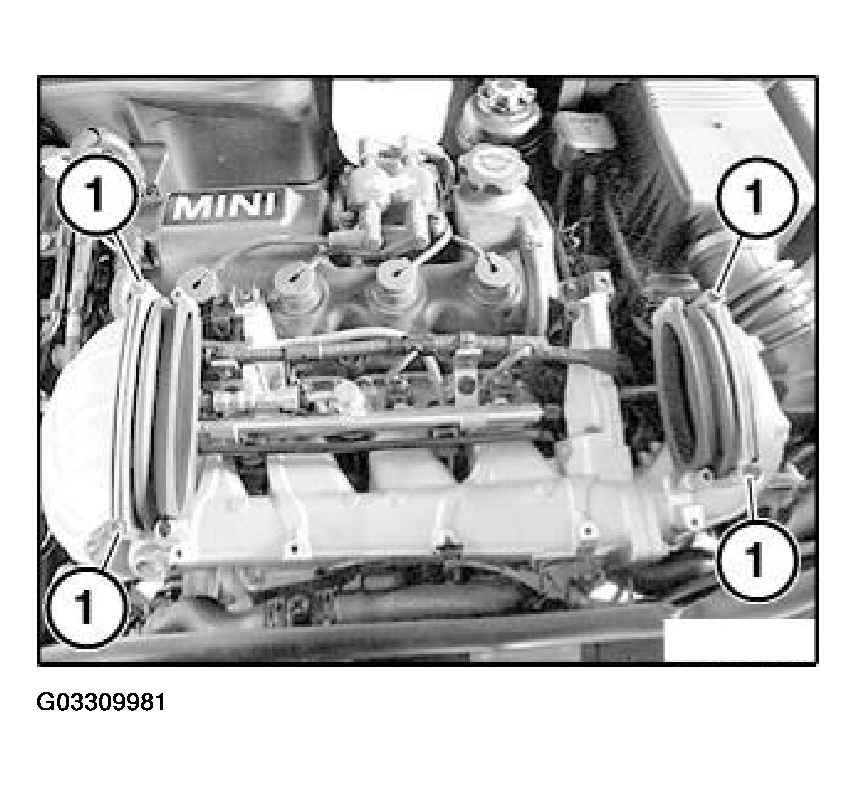

Fig 2: Aligning Brackets And Threads

Courtesy of BMW OF NORTH AMERICA, INC.

Check that sealing rings and brackets are correctly positioned.

Pay attention to alignment of brackets and threads on underside (1).
