17 51 090 Removing and installing or replacing turbocharger inlet pipe

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 8 401
11 8 402

Remove impact tube. Refer to 31 11 020 Removing and installing/replacing bumper bracket .

Lower front end module and attach special tools 11 8 401 and 11 8 402.

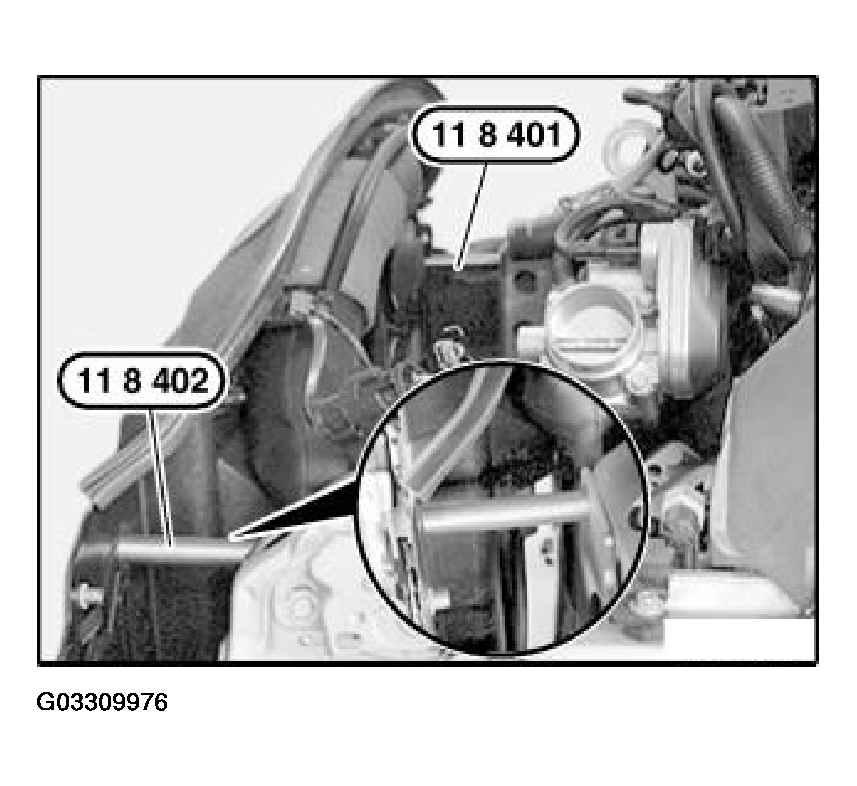

Fig 1: Attaching Special Tool

G03309976

Courtesy of BMW OF NORTH AMERICA, INC.

Remove pipe from intercooler to intake manifold. Refer to 17 51 085 Removing and installing/replacing pipe between intercooler and intake manifold (left) .

Remove retaining bolt (1) for turbocharger inlet.

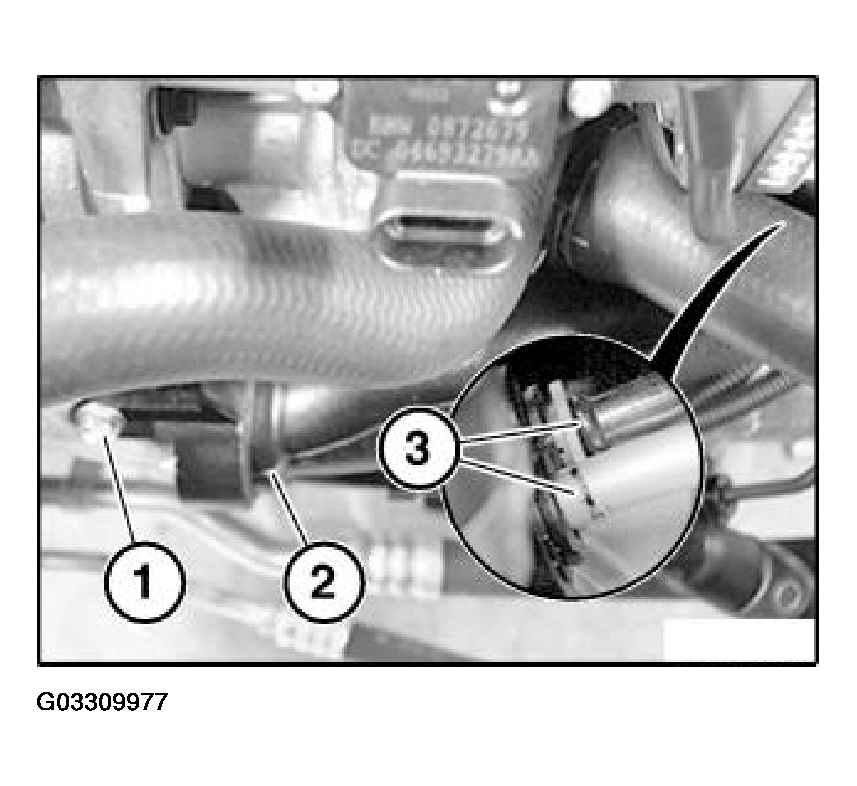

Fig 2: detaching Turbocharger Inlet Pipe From Feed Lines

G03309977

Courtesy of BMW OF NORTH AMERICA, INC.

Detach turbocharger inlet pipe (2) from feed lines (3).

NOTE: Release pipes at quick -release couplings.

Tightening torque 11 65 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

Check sealing ring (1) for damage.

NOTE: Guide lug (2).

Replace sealing ring if damaged.

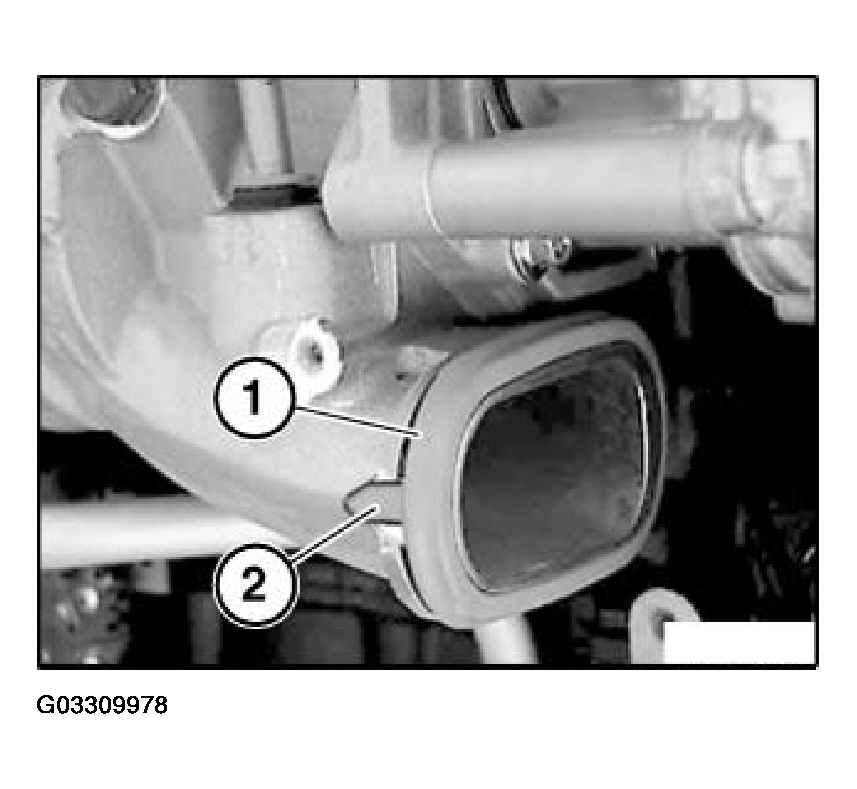

Fig 3: Checking Sealing Ring

G03309978

Courtesy of BMW OF NORTH AMERICA, INC.
