13 31 029 Checking delivery pressure of fuel pump (COOPER S)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 8 480
13 1 130
13 3 063
13 5 222

Necessary preliminary tasks:

Switch off ignition
Remove intercooler, refer to 17 51 000 REMOVING AND INSTALLING/REPLACING INTERCOOLER

IMPORTANT: The fuel in the fuel lines is under pressure (approx. 3 bar)!

Recycling:

Catch and dispose of escaping fuel.

Observe country-specific waste -disposal regulations.

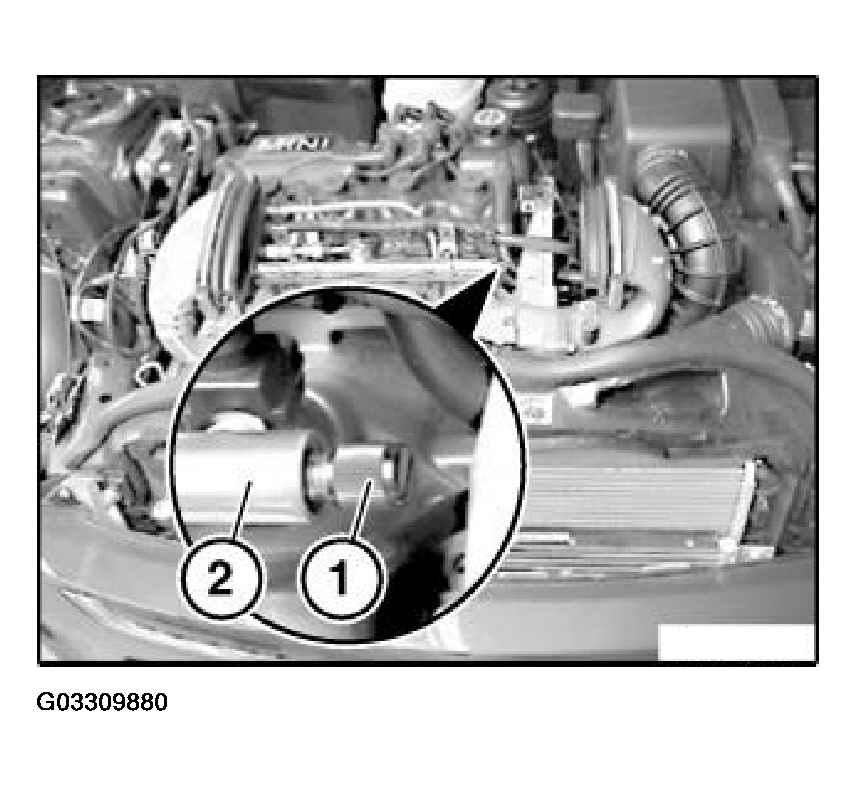

Detach dust cap (1) from measuring valve on injection pipe (2).

Fig 1: Detaching Dust Cap From Measuring Valve

G03309880

Courtesy of BMW OF NORTH AMERICA, INC.

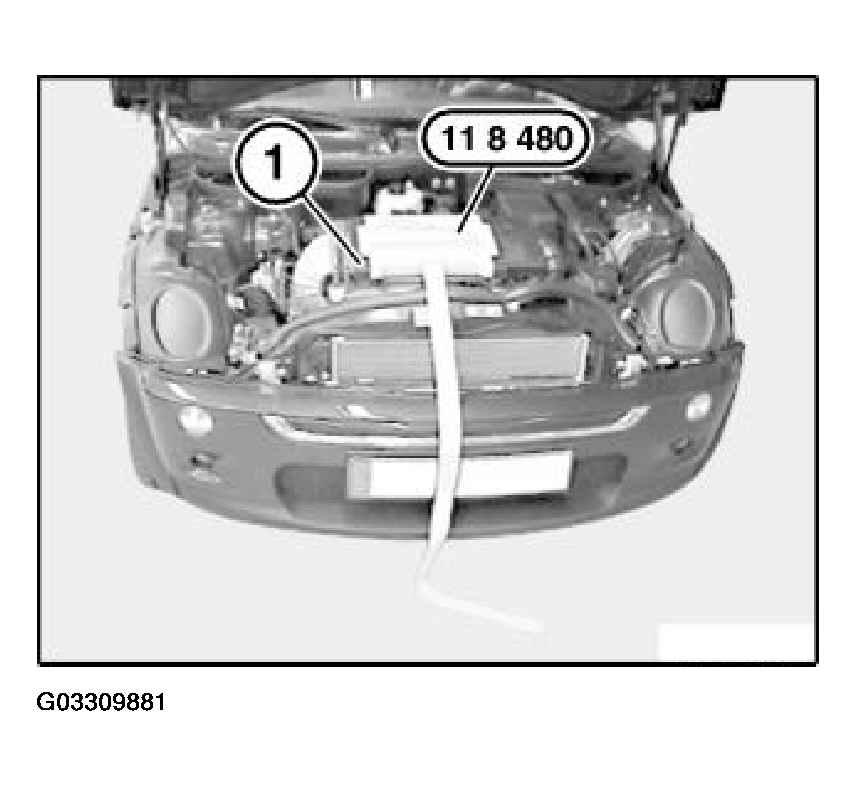

IMPORTANT: When working in engine compartment, always place special tool 11 8 480 on intercooler (1) (risk of damage).

Fig 2: Installing Special Tool

G03309881

Courtesy of BMW OF NORTH AMERICA, INC.

Checking fuel pressure with diagnosis system:

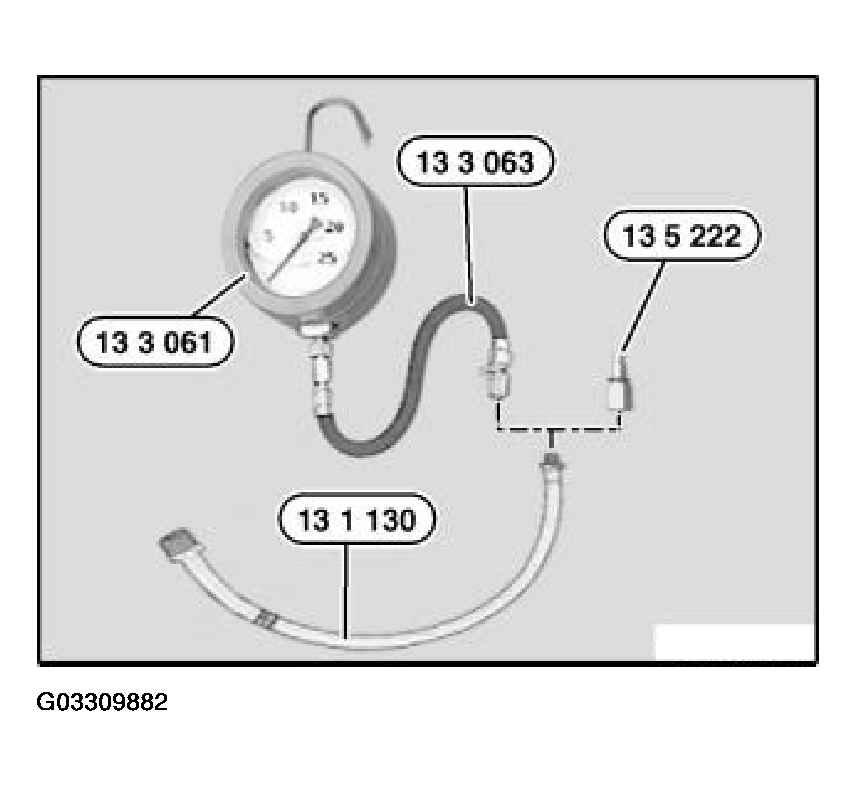

Fig 3: View Of Special Tool

G03309882

Courtesy of BMW OF NORTH AMERICA, INC.

Connect special tools 13 1 130 and 13 5 222 to pressure sensor of diagnosis system.

Checking fuel pressure with pressure gauge:

Attach special tools 13 3 063 and 13 1 130.

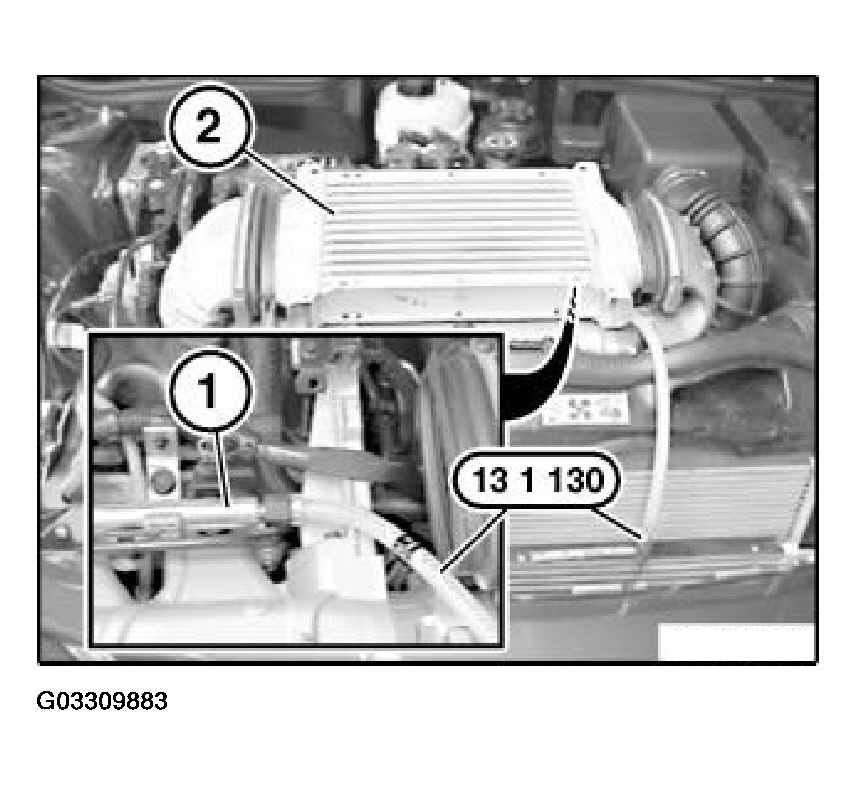

Connect special tool 13 1 130 first to pressure gauge or diagnosis system and then to fuel rail (1).

Fig 4: Connecting Special Tool

G03309883

Courtesy of BMW OF NORTH AMERICA, INC.

Install intercooler (2).

Measuring fuel pressure:

Start engine.

Check fuel delivery pressure. Refer to FUEL SYSTEM - TECHNICAL DATA .

Switch off engine.

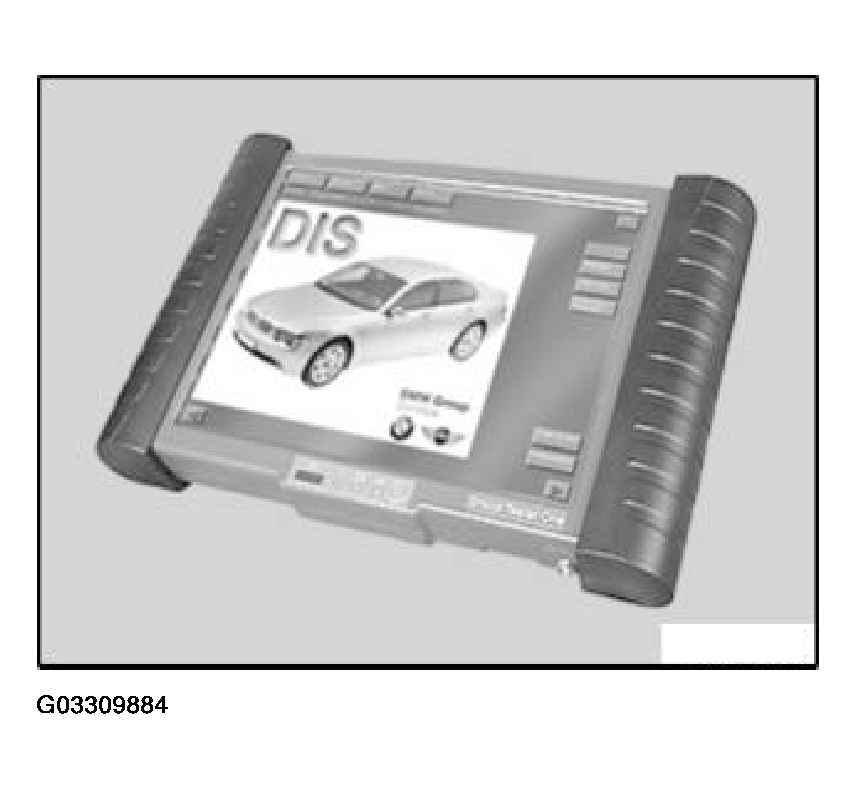

Fig 5: Identifying Programmable DIS

G03309884

Courtesy of BMW OF NORTH AMERICA, INC.
