11 12 729 Checking cylinder head for water leaks (W10 /W11)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 8 431
11 8 432
11 8 433

Necessary preliminary tasks:

Remove cylinder head. Refer to 11 12 100 Removing and installing/sealing cylinder head (COOPER S) .
Remove camshaft. Refer to 11 31 001 Replacing camshaft .
Remove thermostat.

Place special tools 11 8 431 on sealing surface of cylinder head.

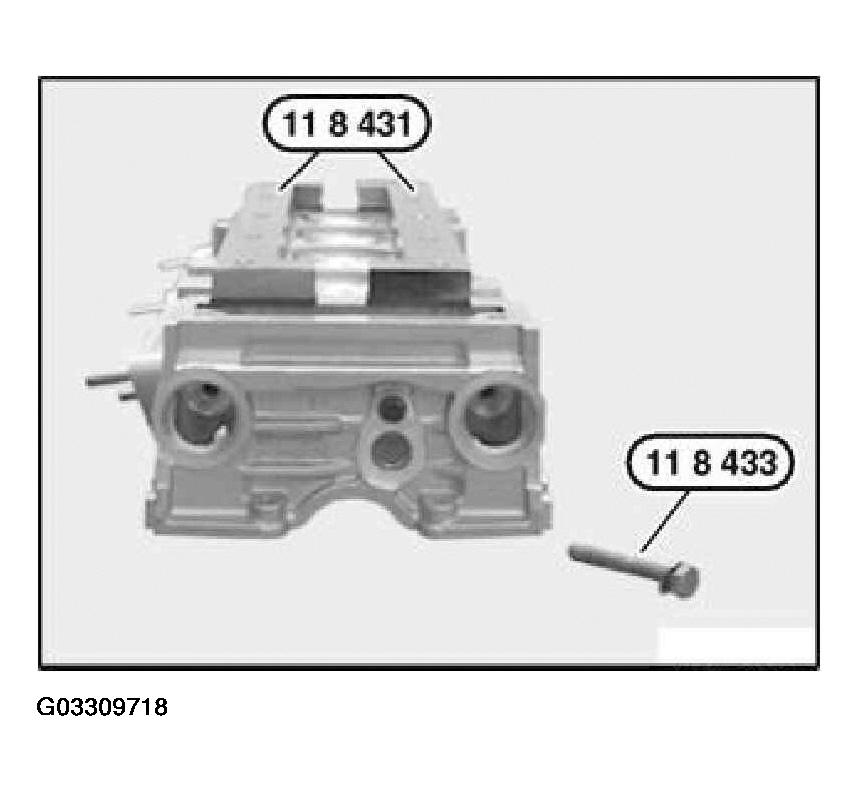

Fig 1: Placing Special Tools On Sealing Surface Of Cylinder Head

G03309718

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tools 11 8 431 with special tool 11 8 433.

NOTE: Clean sealing surfaces.

Close off coolant opening with special tool 11 8 432.

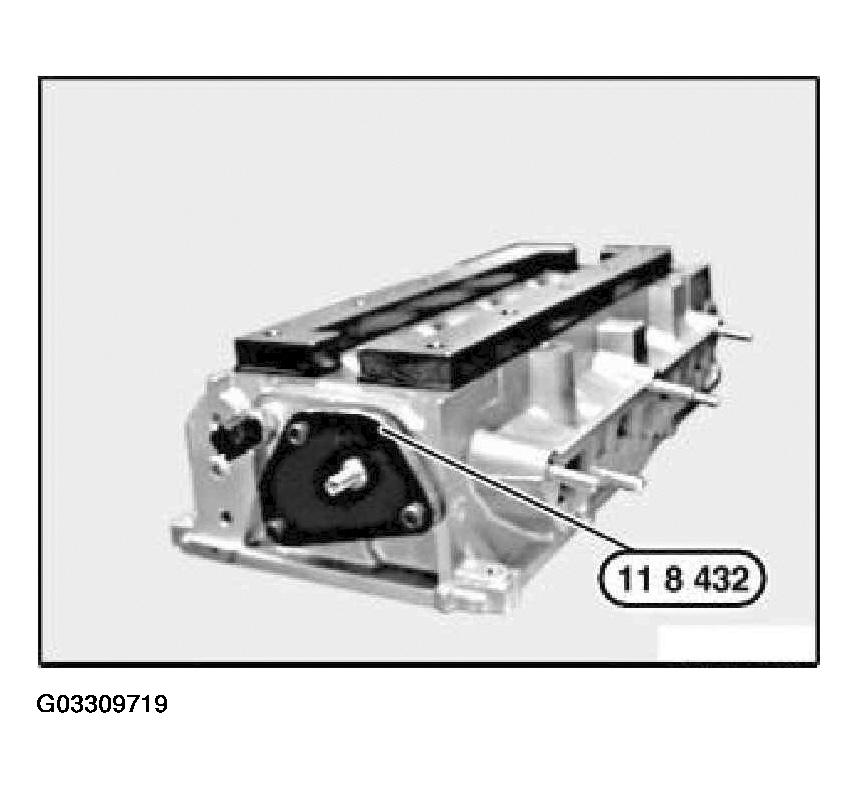

Fig 2: Closing Off Coolant Opening

G03309719

Courtesy of BMW OF NORTH AMERICA, INC.

Connect compressed air supply to special tool 11 8 432.

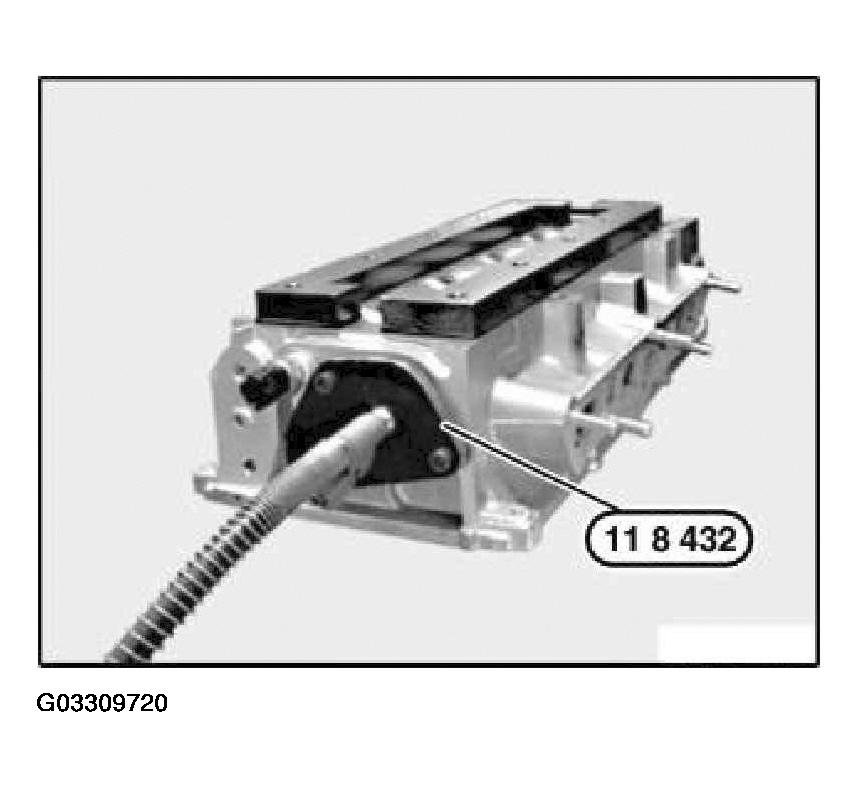

Fig 3: Connecting Compressed Air Supply

G03309720

Courtesy of BMW OF NORTH AMERICA, INC.

Test pressure: 4.5 bar.

Immerse cylinder head in a water bath.

Check cylinder head for escaping air (cracks).

NOTE: If necessary, soften the bath water with a cleaning agent.

Assemble engine.
