11 12 260 Removing and installing spark plug well

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 8 500
12 1 211
12 1 212

Necessary preliminary tasks:

Remove cylinder head cover. Refer to 11 12 000 Removing and installing, sealing cylinder head cover (COOPER S) .
Remove spark plug. Refer to 12 12 011 REPLACING ALL SPARK PLUGS .

Fit special tool 11 8 500 in spark plug well.

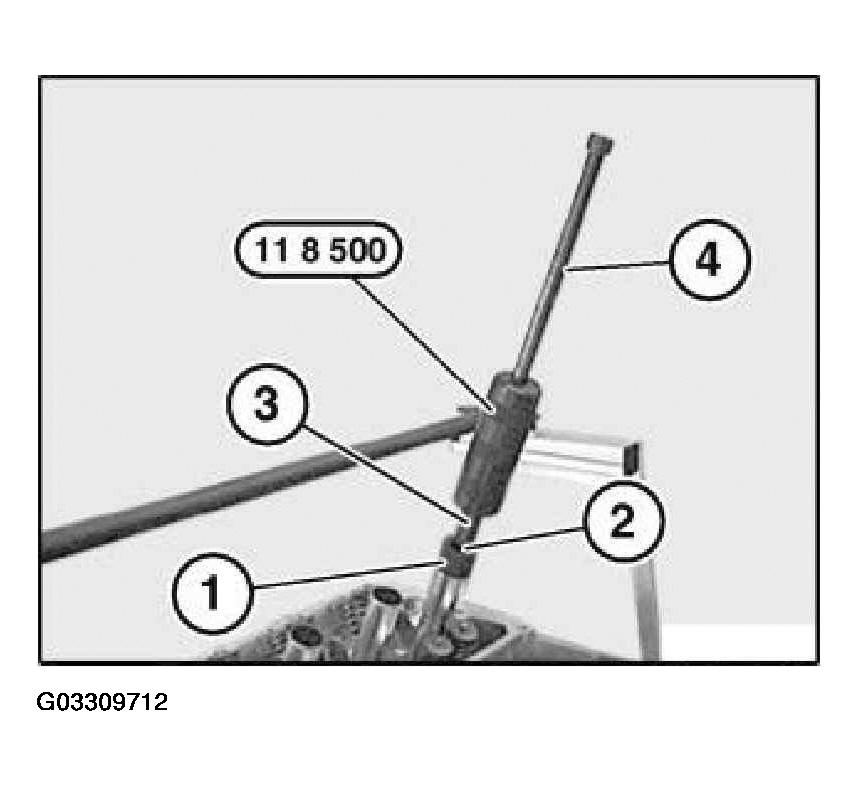

Fig 1: Fitting Special Tool In Spark Plug Well

Courtesy of BMW OF NORTH AMERICA, INC.

Firmly tighten retaining claws (1) with lock screw (2).

Screw on adapter (3).

Screw in impact weight with screw (4).

NOTE: Drive out spark plug well.

Installation note:

Spark plug well must be replaced after disassembly.

Clean area around spark plug well.

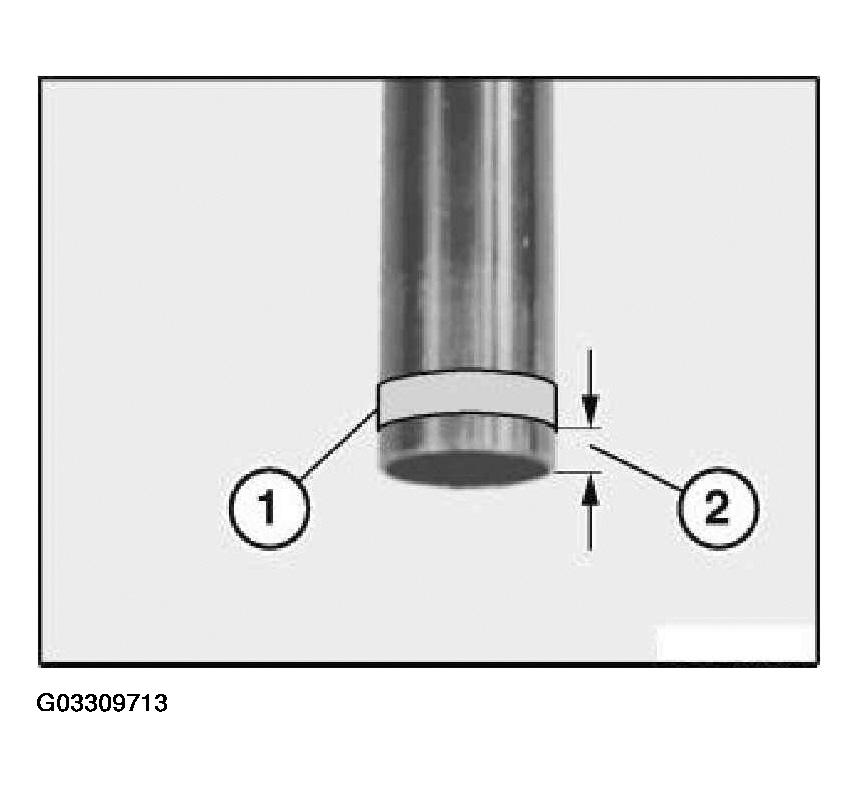

Fig 2: View Of End Of Well

Courtesy of BMW OF NORTH AMERICA, INC.

Apply 3 mm thick bead of Loctite 277 sealing compound at a distance of about 1 mm from the end of the well.

To be obtained from BMW Parts Service.

1 = Bead of sealing compound

2 = 1 mm from end of well

Screw special tool 12 1 212 into spark plug hole.

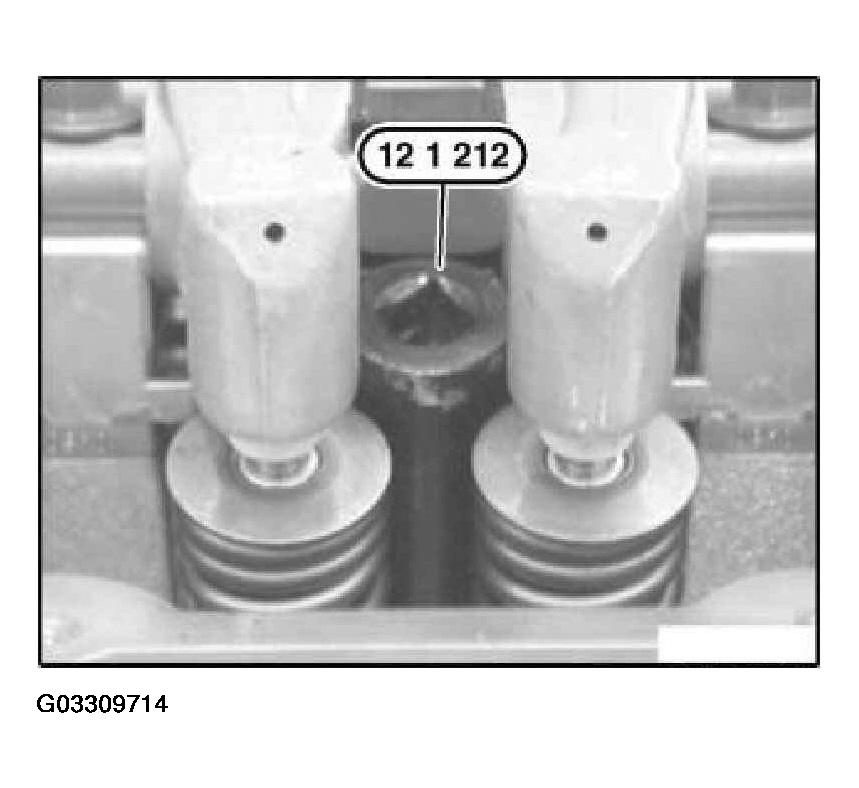

Fig 3: Screwing Special Tool Into Spark Plug Hole

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully install spark plug well (1).

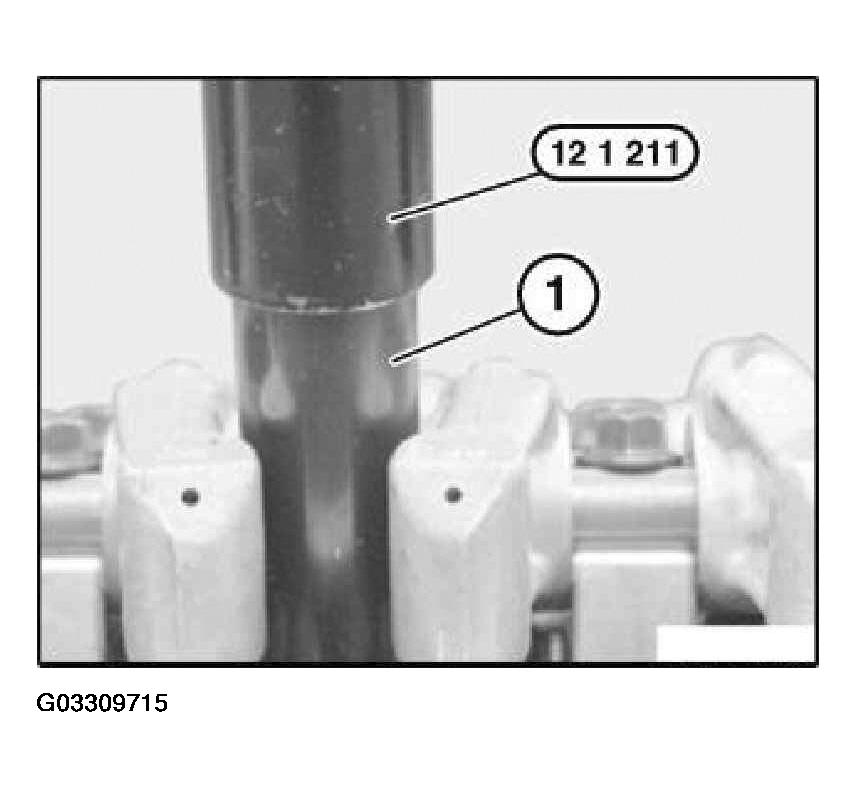

Fig 4: Installing Spark Plug Well

Courtesy of BMW OF NORTH AMERICA, INC.

Fit well with special tool 12 1 211.

Use special tool 12 1 211 to drive in spark plug well.

Installation note:

Spark plug well (1) is installed correctly when special tool 12 1 211 makes contact with special tool 12 1 212.

Assemble engine.
