12 13 513 Replacing ignition coil

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Switch off ignition.
Read out fault memory of DME control unit.
Check stored fault messages.

Unlock plug (1) and remove.

Detach ignition cable (2) from ignition coil.

Release screws (3).

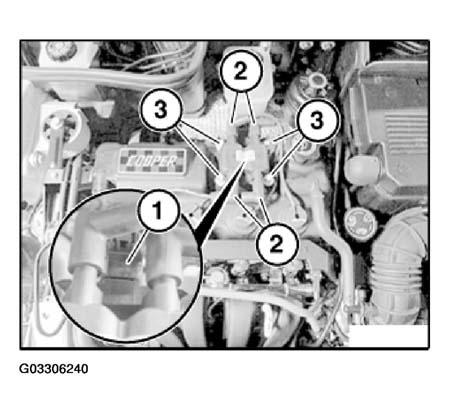

Fig 1: Locating Ignition Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screw (1) and spacer tube (2) are only available as a single set.

Check insulating rings (3), replace if necessary.

Tightening torque, refer to 12 13 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - COOPER (1.6L) R50/W10 .

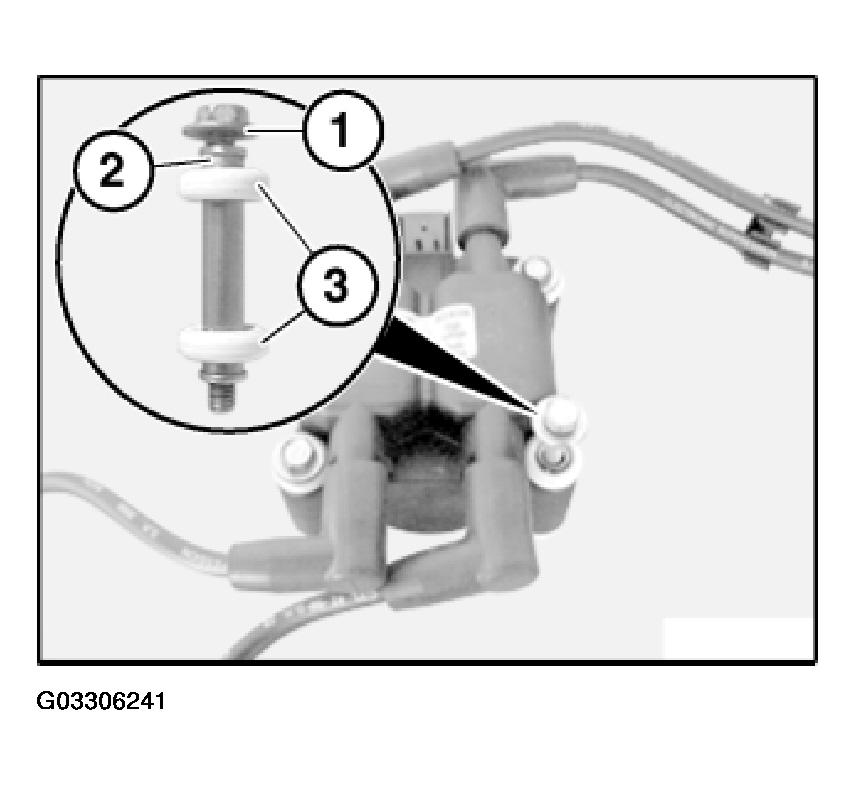

Fig 2: Installing Spacer Tube

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Now clear the fault memory.
