67 16 011 Removing and installing/replacing left headlight vertical aim adjuster (xenon headlamp, from 09/2000)
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Remove intake filter housing, refer to 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING (M54) .
WARNING:
Xenon headlamps: Danger to life due to high voltage!
Therefore disconnect xenon headlamps from voltage supply.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.
Therefore disconnect xenon headlamps from voltage supply.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.
NOTE:
Headlamp removed for purposes of clarity.

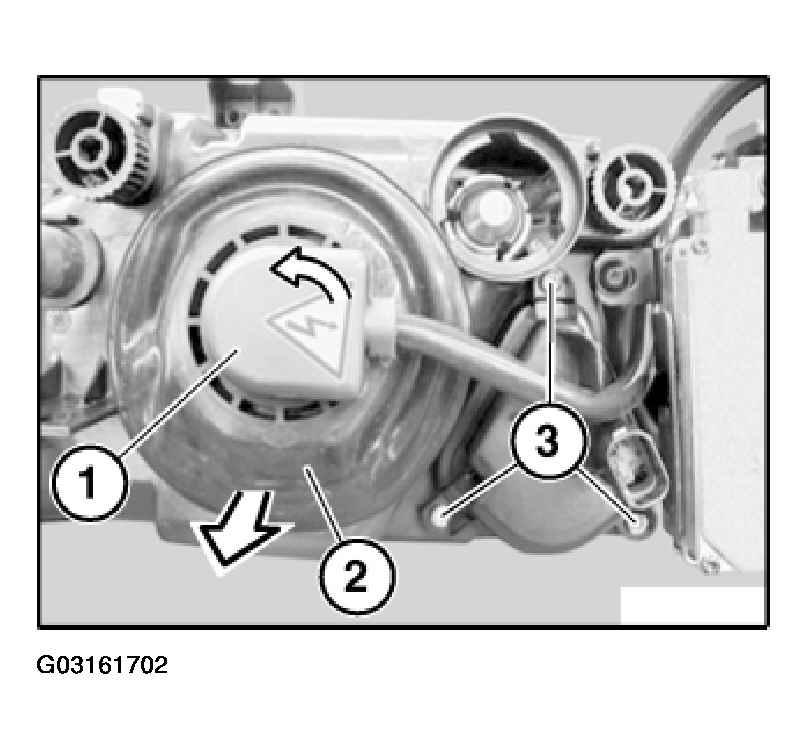

Turn plug connection (1) in direction of arrow and remove.
Remove low beam cover (2) in direction of arrow.
Release screws (3).

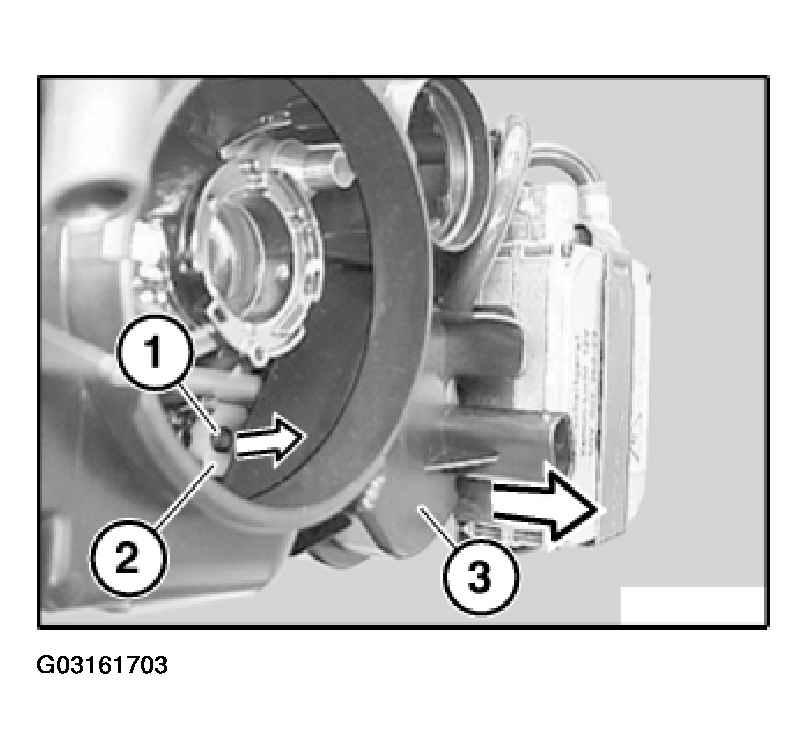

Feed ball head (1) in direction of arrow out of mounting (2).
Remove cover cap with headlight vertical aim adjuster (3) in direction of arrow.
Installation :
Make sure ball head (1) is correctly seated in mounting (2).

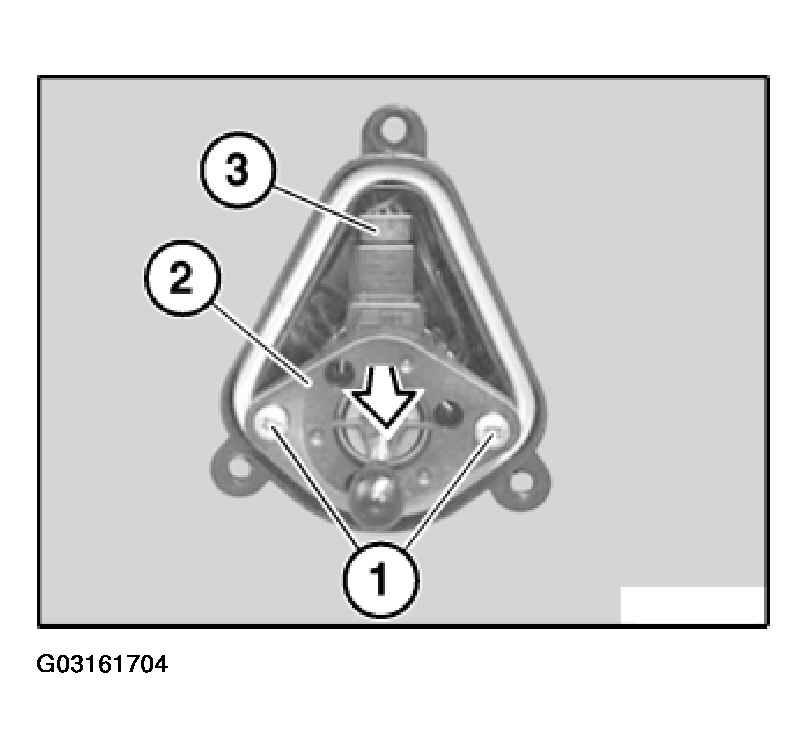

Release screws (1).
Remove headlight vertical aim adjuster (2) in direction of arrow and disconnect plug connection (3).
Installation :
Adjust headlamp. Refer to 63 10 004 ADJUSTING HEADLIGHTS .
