67 16 010 Removing and installing/replacing left headlight vertical aim adjuster (up to 09/2000)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove lens/reflector, refer to 63 12 034 REMOVING AND INSTALLING/REPLACING LENS/REFLECTOR FOR LEFT HEADLIGHT (UP TO 09/2000) .

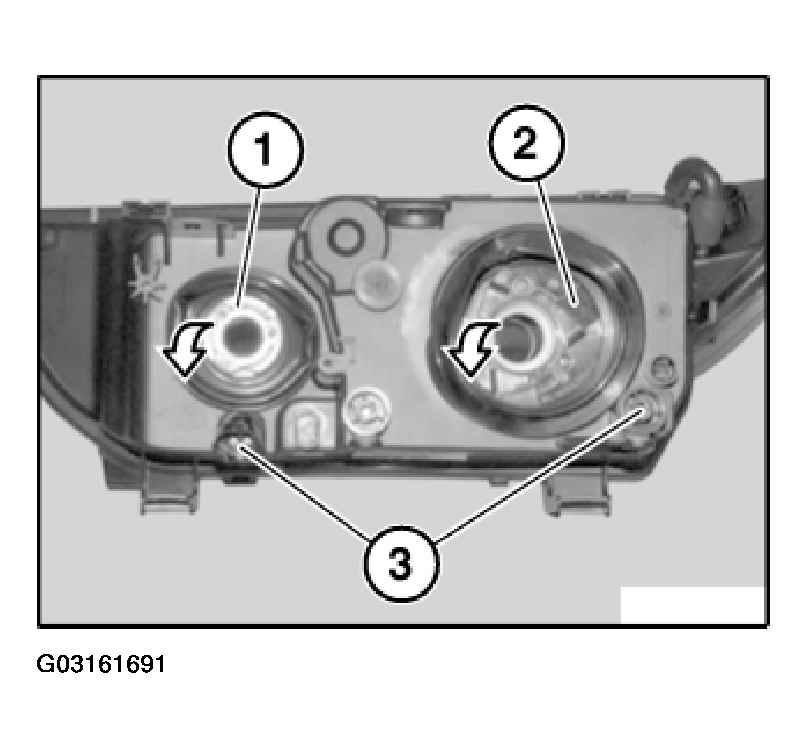

Detach high beam cover cap (1) and low beam cover (2) in direction of arrow.

Fig 1: Detaching High Beam And Low Beam Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation instructions :

Make sure high beam cover cap (1) and low beam cover (2) are correctly seated.

Fully release adjusting screws (3).

Up To 01/1997:

Detach insert (1) at bottom from interior headlight vertical aim adjuster in direction of arrow.

Fig 2: Detaching Insert From Interior Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Installation :

Ensure insert (1) is correctly seated on interior headlight vertical aim adjuster.

From 01/1997:

In addition, turn lower holder through approx. 90° and lever out at headlight vertical aim adjuster underneath.

All:

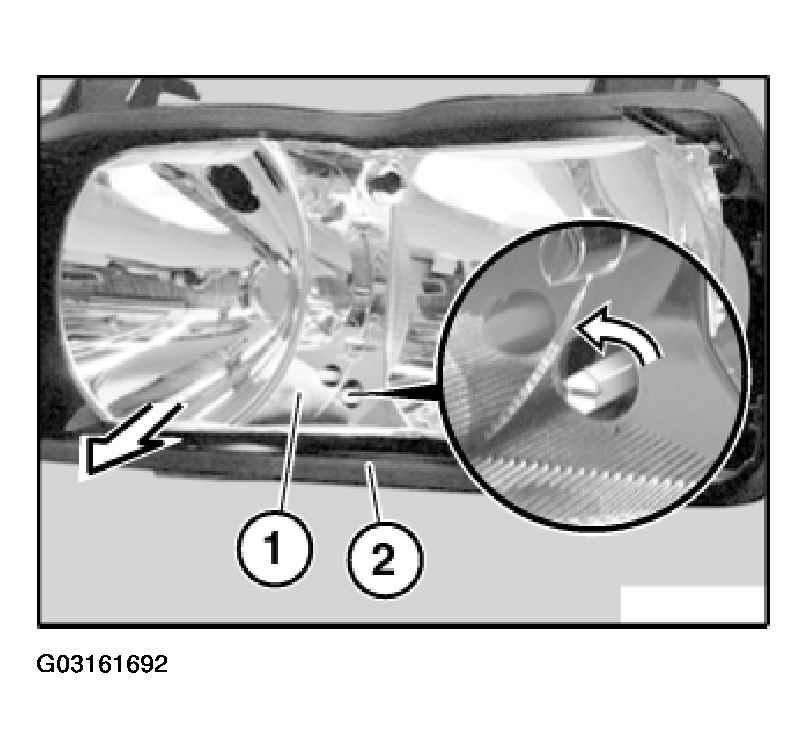

Pull insert (1) in direction of arrow out of headlamp housing (2).

Installation :

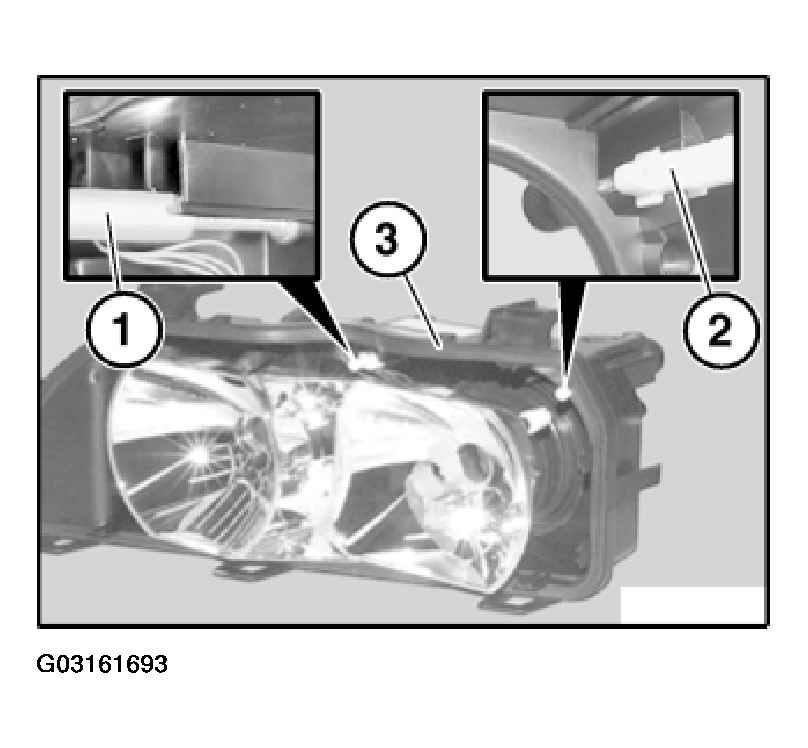

Make sure guides (1) and (2) are correctly seated in headlamp housing (3).

Fig 3: Ensure Guides Are Correctly Seated In Headlamp Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Up to 01/1997:

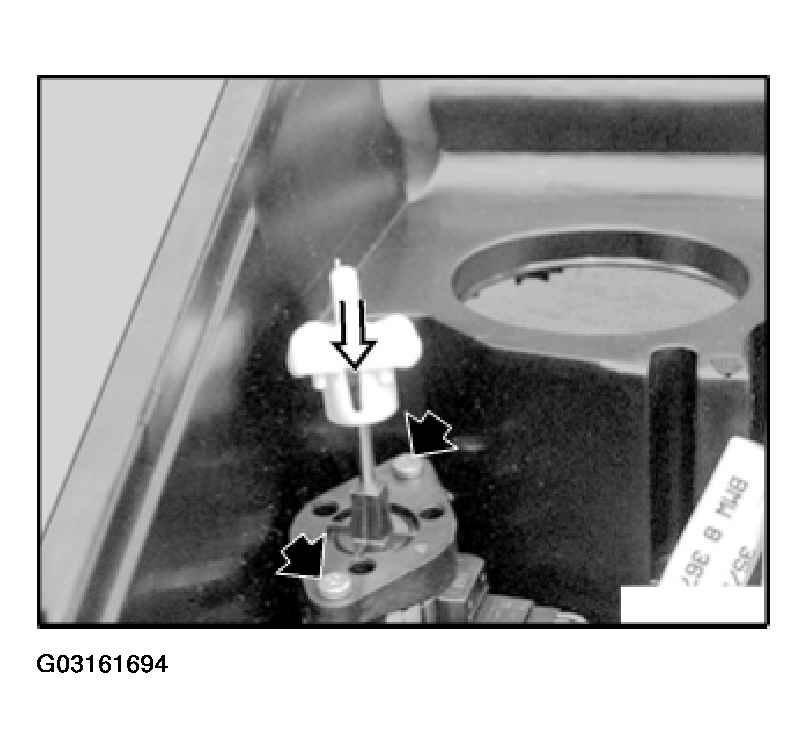

When converting the headlight vertical aim adjuster from a headlight (old version), you must clip the supplied holder onto the headlight vertical aim adjuster.

Fig 4: Converting Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

All:

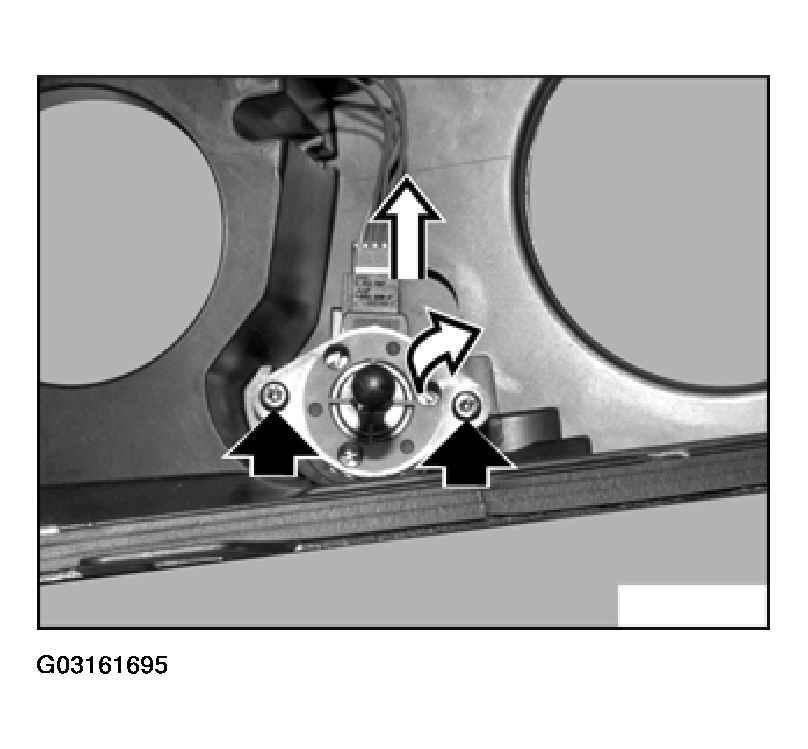

Unfasten screws.

Disconnect plug connection and remove headlight vertical aim adjuster.

Fig 5: Removing Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Installation :

Adjust headlamps. Refer to 63 10 004 ADJUSTING HEADLIGHTS .
