67 62 020 Removing and installing/replacing flat motor for rear left or right power window lifter

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT DOOR TRIM PANEL .

Carefully remove sheeting.

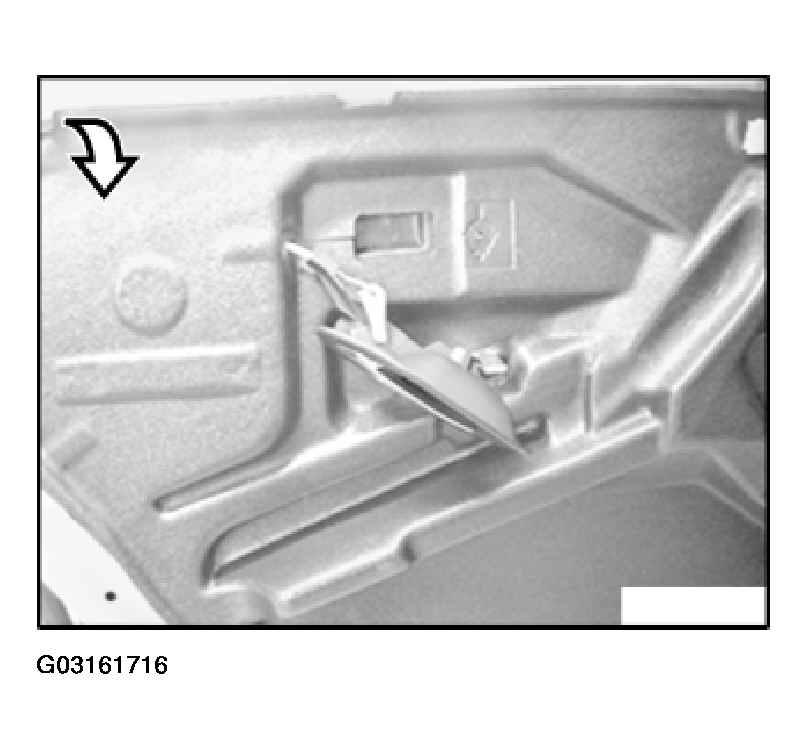

Fig 1: Removing Protective Sheeting

G03161716

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Acoustic insulation in picture only serves as an illustration:
It is not identical to detached acoustic insulation.

Installation:

If necessary, stick butylene tape (1) to detached areas.

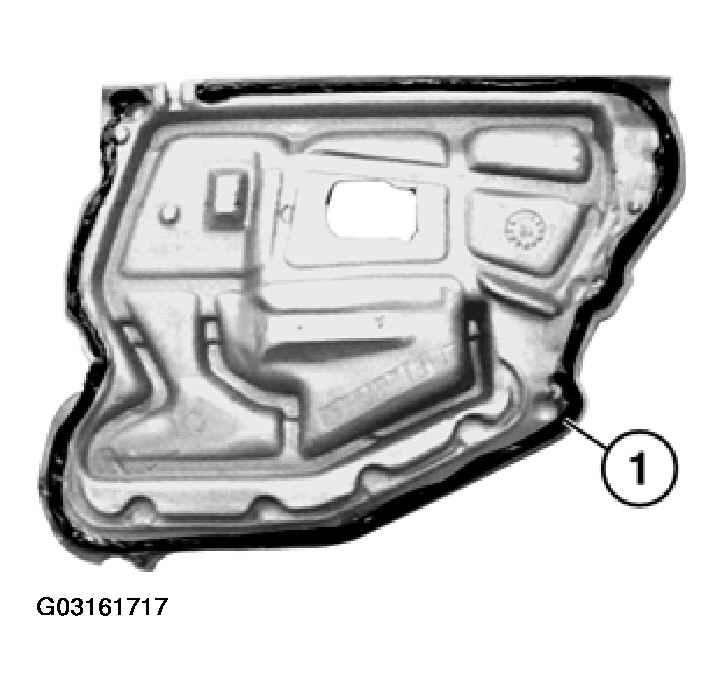

Fig 2: Sticking Butylene Tape Upon Installation

G03161717

Courtesy of BMW OF NORTH AMERICA, INC.

Feed door opener (1) out of sheeting. Pull off connectors.

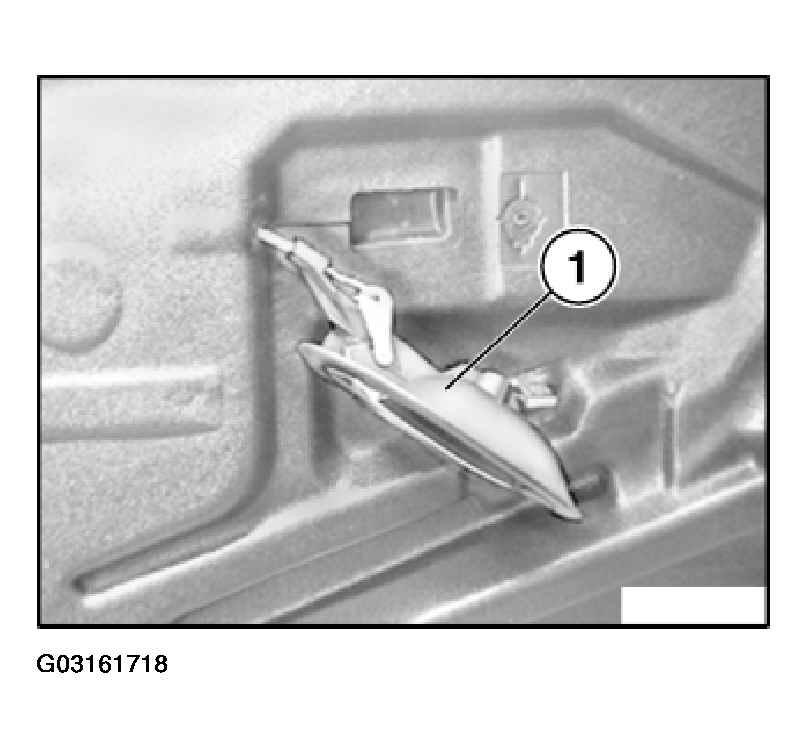

Fig 3: Feeding Door Opener Out Of Sheeting

G03161718

Courtesy of BMW OF NORTH AMERICA, INC.

Pull of connectors.

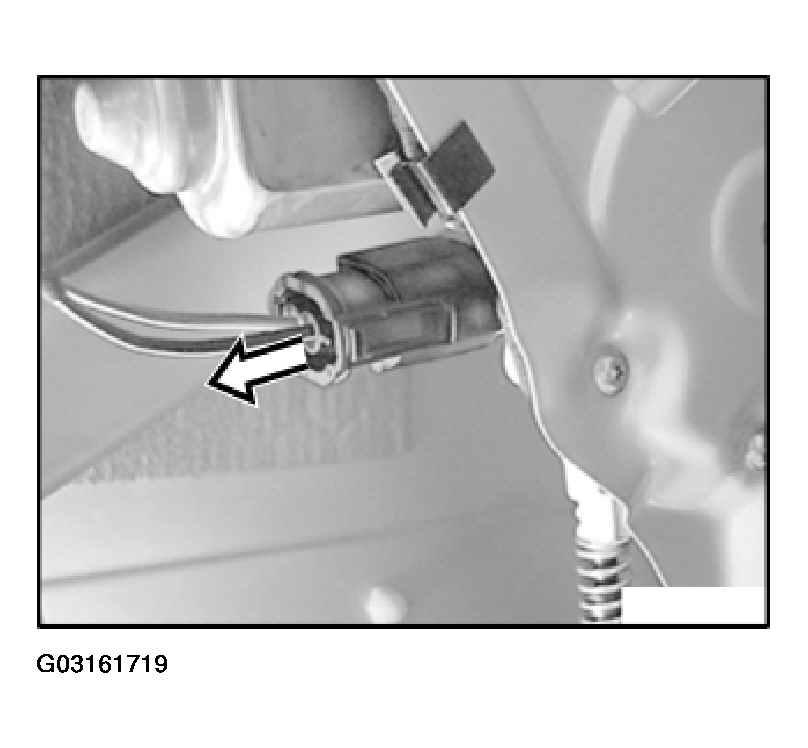

Fig 4: Disconnect Window Motor Connectors

G03161719

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and feed out flat motor with Bowden cables.

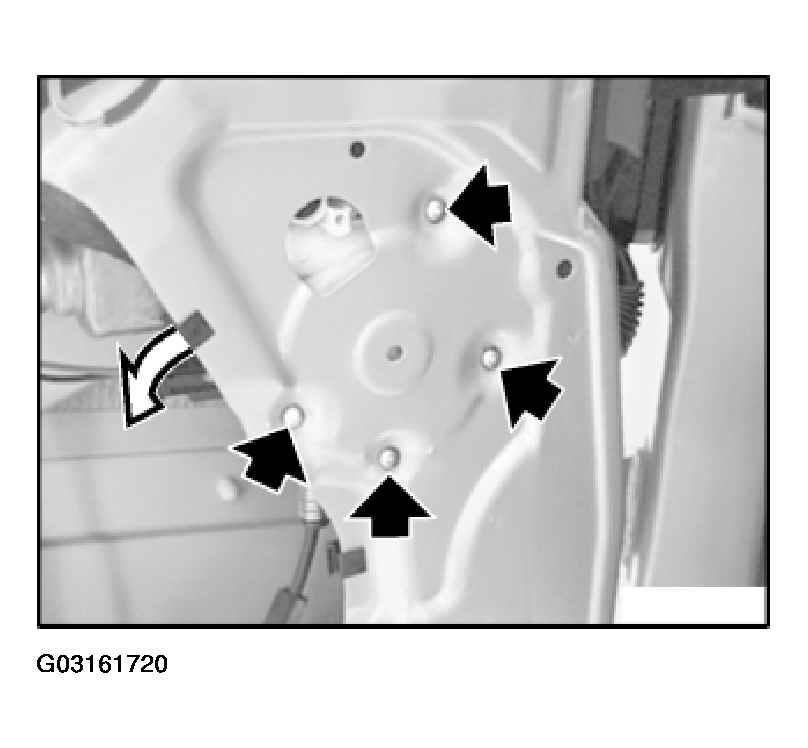

Fig 5: Removing Window Flat Motor With Bowden Cables

G03161720

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws, remove cover from gear by moving it back and forth and simultaneously raising it.

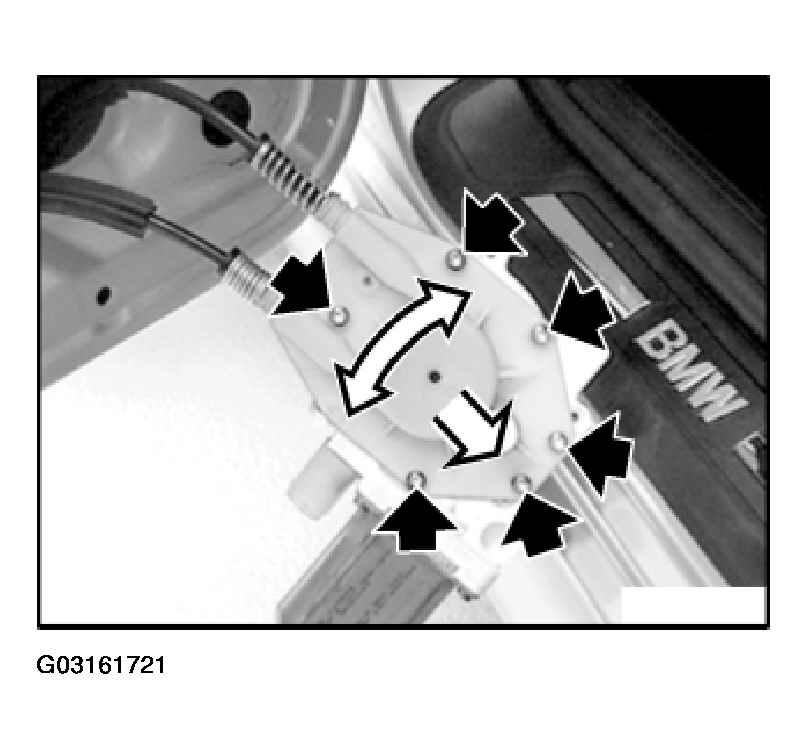

Fig 6: Removing Cover From Gear

G03161721

Courtesy of BMW OF NORTH AMERICA, INC.
