65 52 530 Removing and installing/replacing LC display for on-board monitor

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove on-board monitor,

refer to 65 52 510 REMOVING AND INSTALLING ON-BOARD MONITOR .

CAUTION: Place trim panel on special tool 12 7 192 (anti-static mat) and ground in order to avoid a static charge.

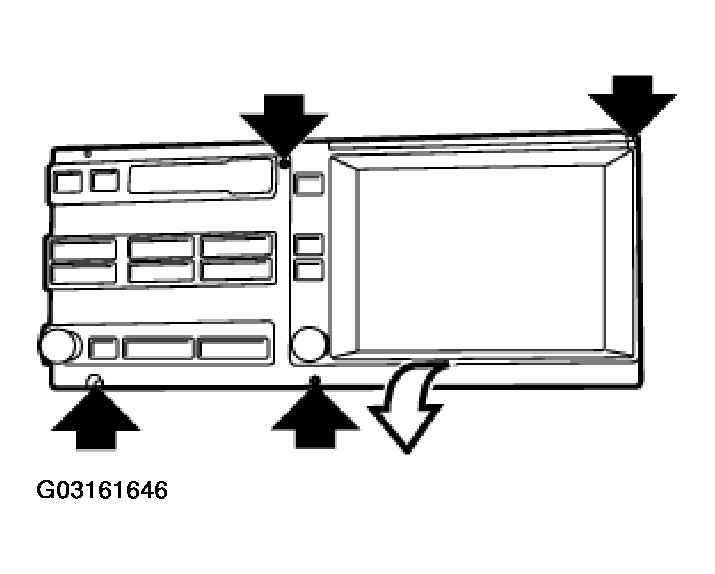

Unfasten screws. Turn over frame.

Fig 1: Unfastening On-Board Monitor LC Display Screws

Courtesy of BMW OF NORTH AMERICA, INC.

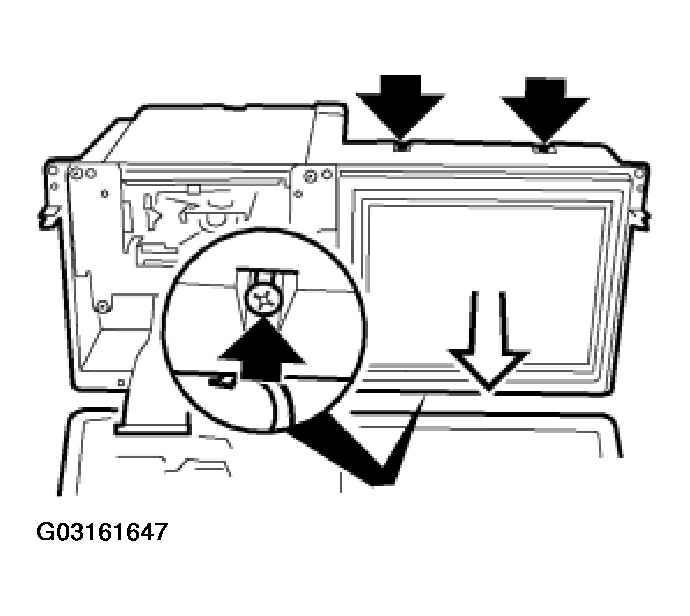

Unfasten screws. Slide LC display out towards front.

Fig 2: Sliding On-Board Monitor LC Display Out

Courtesy of BMW OF NORTH AMERICA, INC.

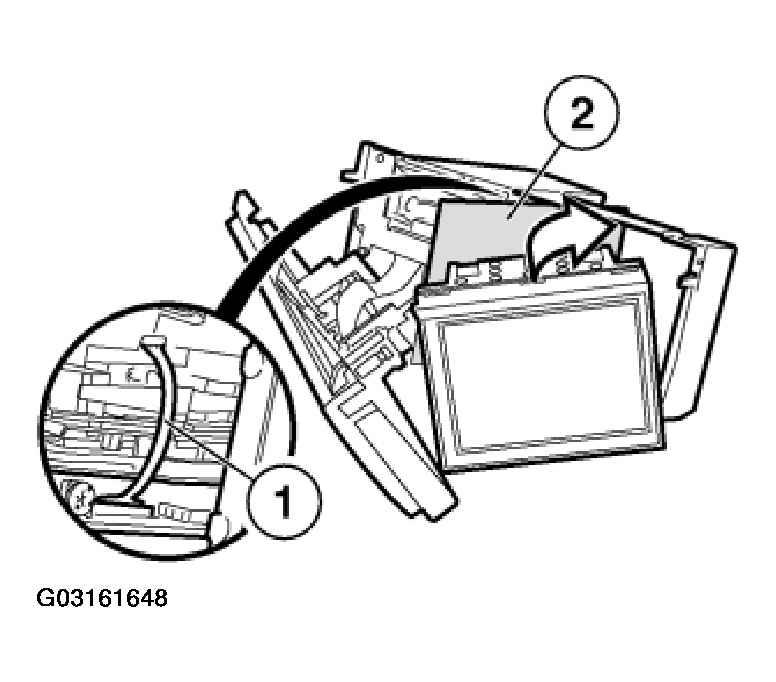

CAUTION: Cover flat tape (1) with installation cover (2) and then slide in LC display.

Fig 3: Installing On-Board Monitor LC Display To Cover

Courtesy of BMW OF NORTH AMERICA, INC.

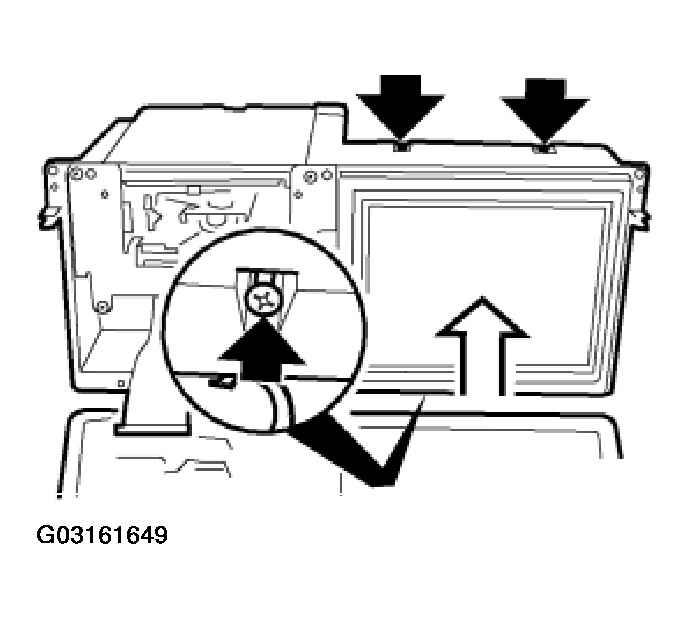

Install LC display and insert screws loosely. Fit trim panel; while doing this, make sure plug is correctly seated on button board. Press LC display against frame (gap between LC display and frame must be the same all round), then tighten down screws.

Fig 4: Installing On-Board Monitor LC Display

Courtesy of BMW OF NORTH AMERICA, INC.
