65 52 520 Replacing trim panel for on-board monitor (control panel)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove on-board monitor,

refer to 65 52 510 REMOVING AND INSTALLING ON-BOARD MONITOR .

CAUTION: Place trim panel on special tool 12 7 192 (anti-static mat) and ground in order to avoid a static charge.

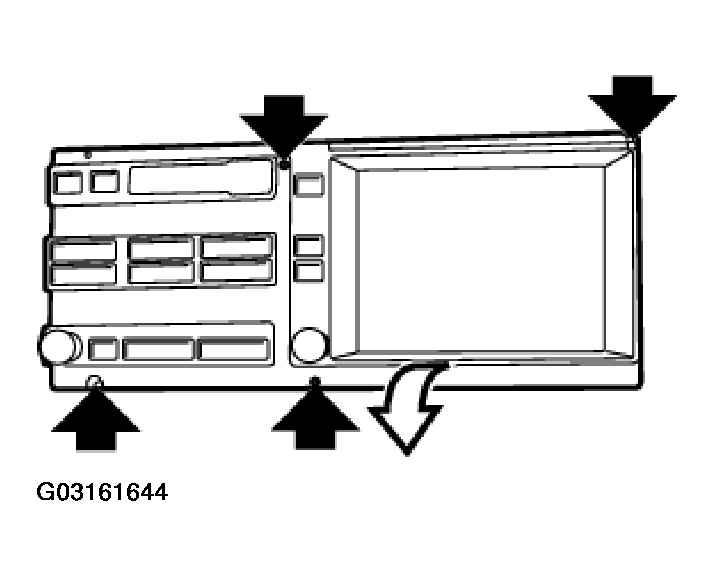

Unfasten screws. Turn over frame.

Fig 1: Unfastening On-Board Monitor (Control Panel) Trim Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

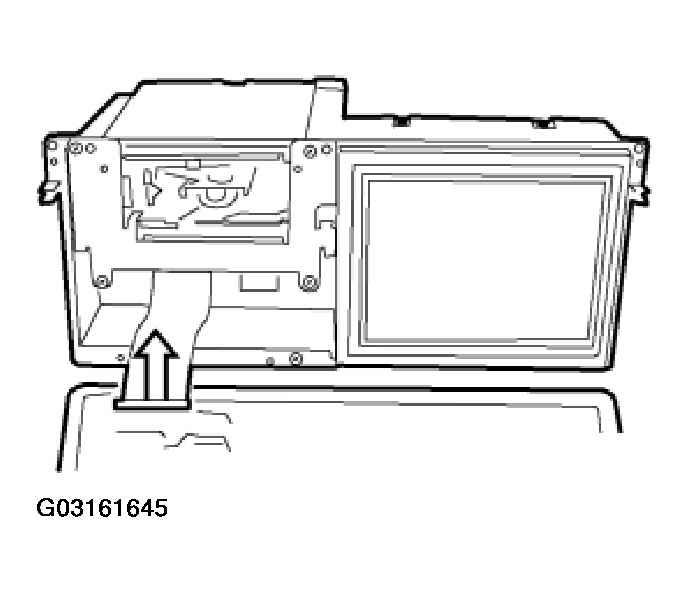

Pull off connectors. Remove trim panel.

Fig 2: Removing Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
