65 90 540 Removing and installing/replacing antenna for Global Positioning System (GPS)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Removing trim for oddments tray, refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR ODDMENTS TRAY (BACK SHELF)

Open flap in rear left side panel. Remove rear left wheel arch trim. Remove connector X01008.

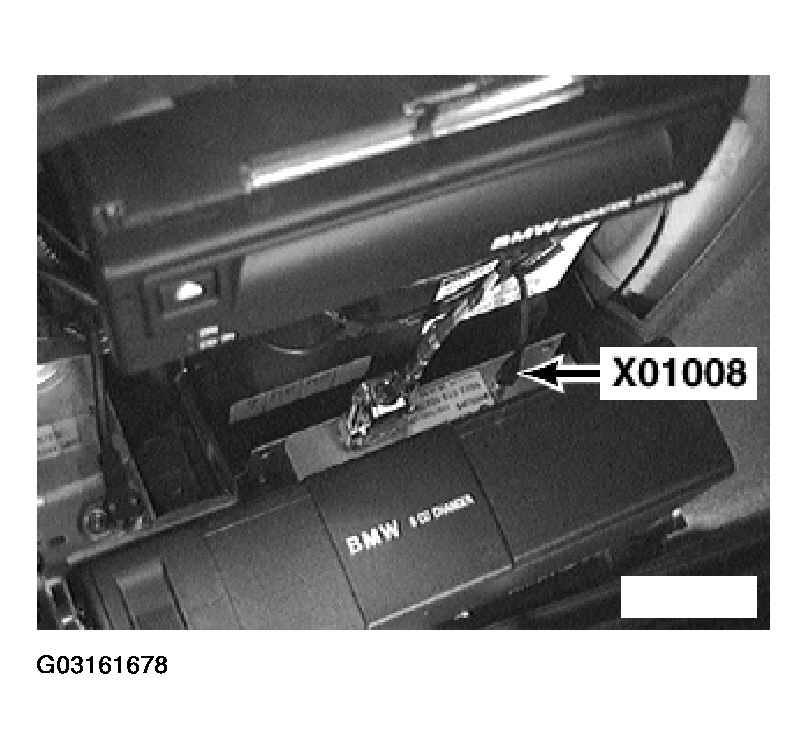

Fig 1: Disconnecting GPS Antenna Connector X01008

Courtesy of BMW OF NORTH AMERICA, INC.

Route line from trunk out to oddments tray.

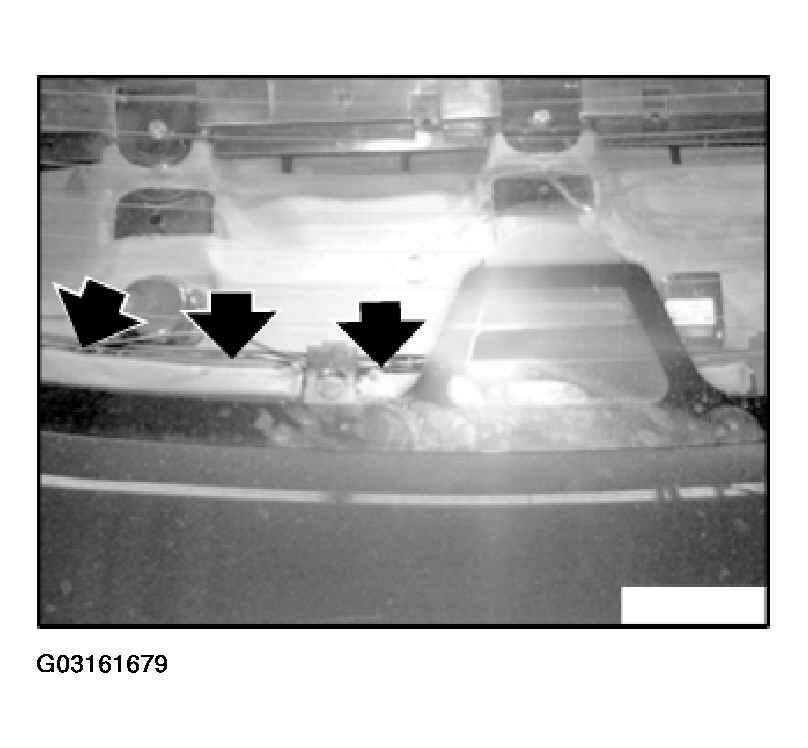

Fig 2: Removing GPS Antenna Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Pull antenna upwards to detach.

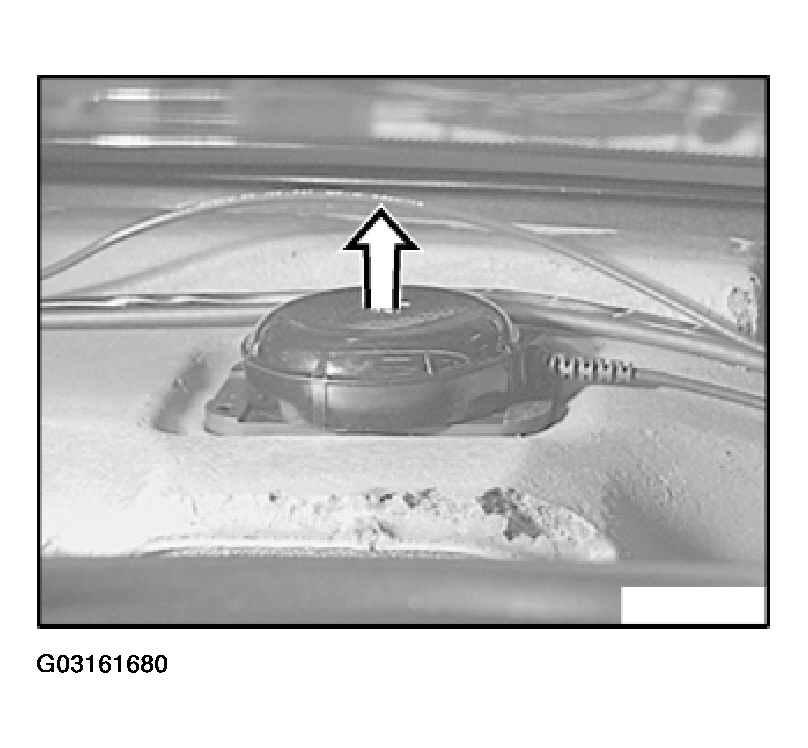

Fig 3: Removing GPS Antenna

Courtesy of BMW OF NORTH AMERICA, INC.
