51 46 000 Removing and installing/replacing trim for oddments tray (back shelf)

Necessary preliminary tasks:

• Remove both panels for rear roof pillar (C-pillar finishers), refer to 51 43 251 REMOVING AND INSTALLING OR REPLACING TRIM FROM REAR LEFT OR RIGHT ROOF PILLAR .
• Release all seat belts at rear bottom.

Version without through-loading system:

• Remove rear seat backrest, refer to 52 24 010 REMOVING AND INSTALLING/REPLACING BACKREST FOR REAR SEAT (NORMAL) .

Version with through-loading system:

• Remove both rest side sections on rear seat backrest, refer to 52 26 008 REMOVING AND INSTALLING/REPLACING LEFT/RIGHT SIDES OF BACKREST ON REAR SEAT BACKREST .

Version with rear window roller blind only:

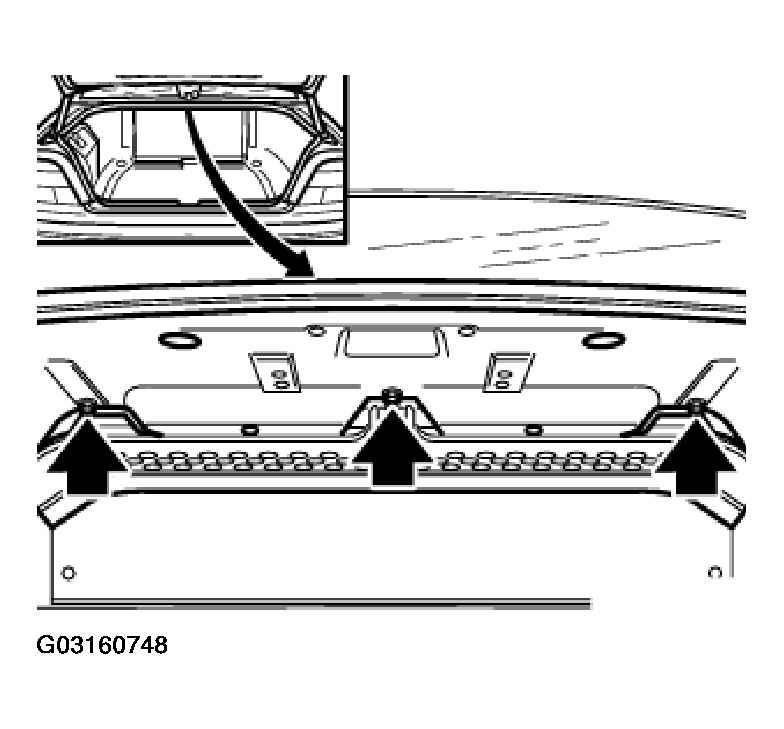

If necessary, release screws and nuts in luggage compartment.

Installation:

Tightening torque, refer to 51 46 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 1: Releasing Screws And Nuts In Luggage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Version with rear window roller blind only:

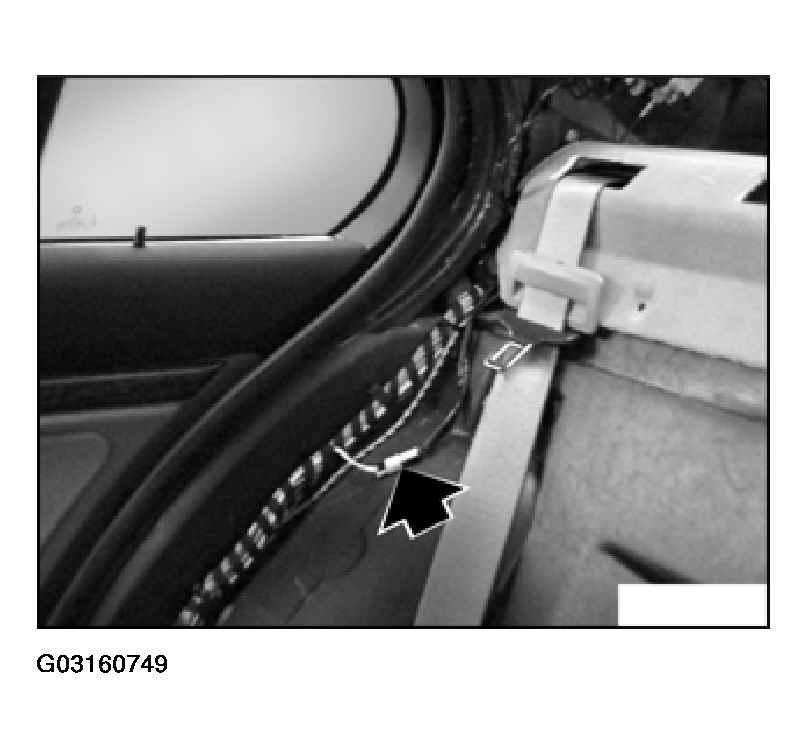

If necessary, disconnect plug connection (1).

Fig 2: Disconnecting Rear Window Roller Blind Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

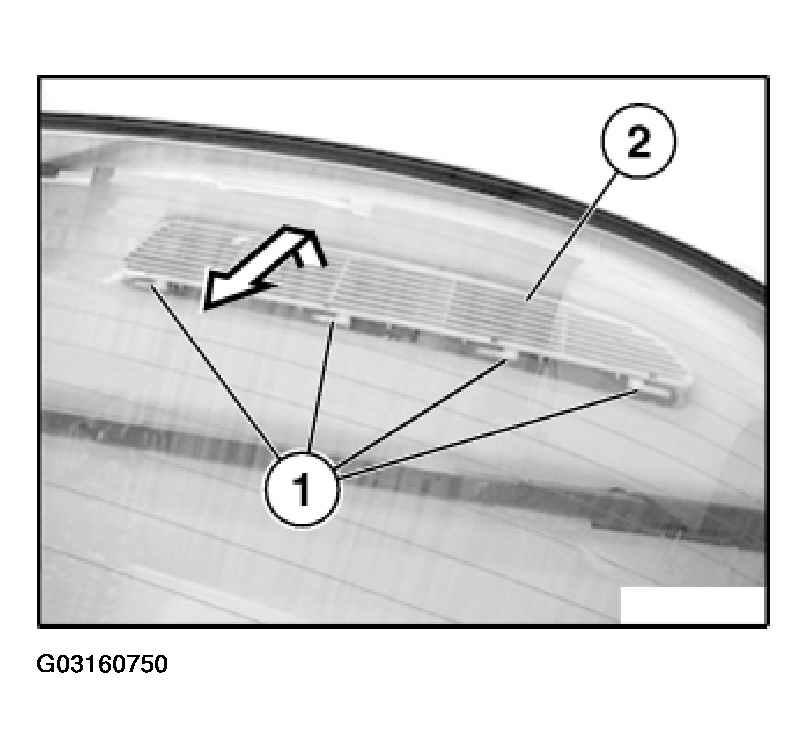

Unlock catches (1) with feeler gauge and pull out both trim grills (2) in direction of arrow.

Fig 3: Removing Trim Grills

Courtesy of BMW OF NORTH AMERICA, INC.

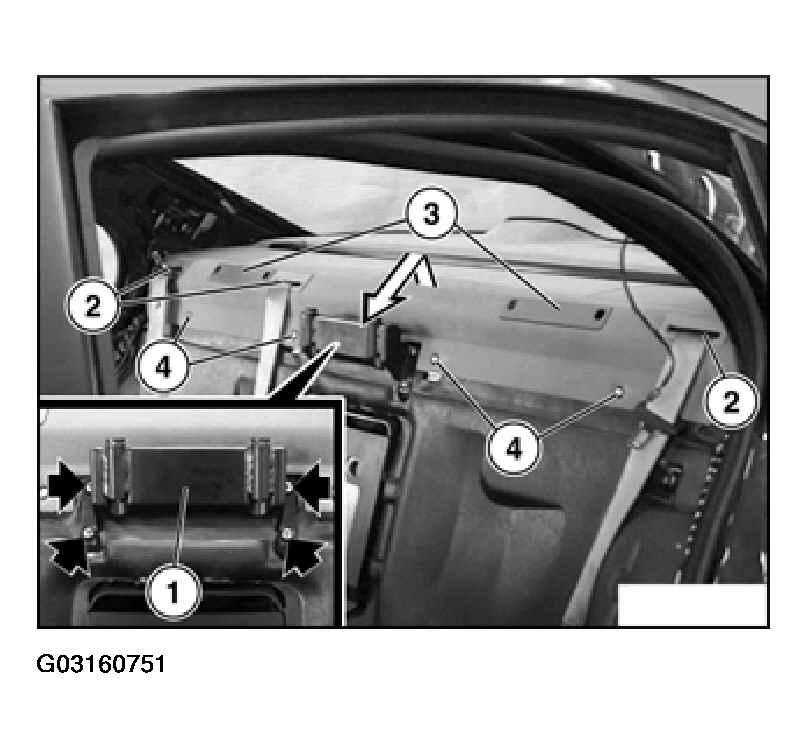

Version without through-loading system:

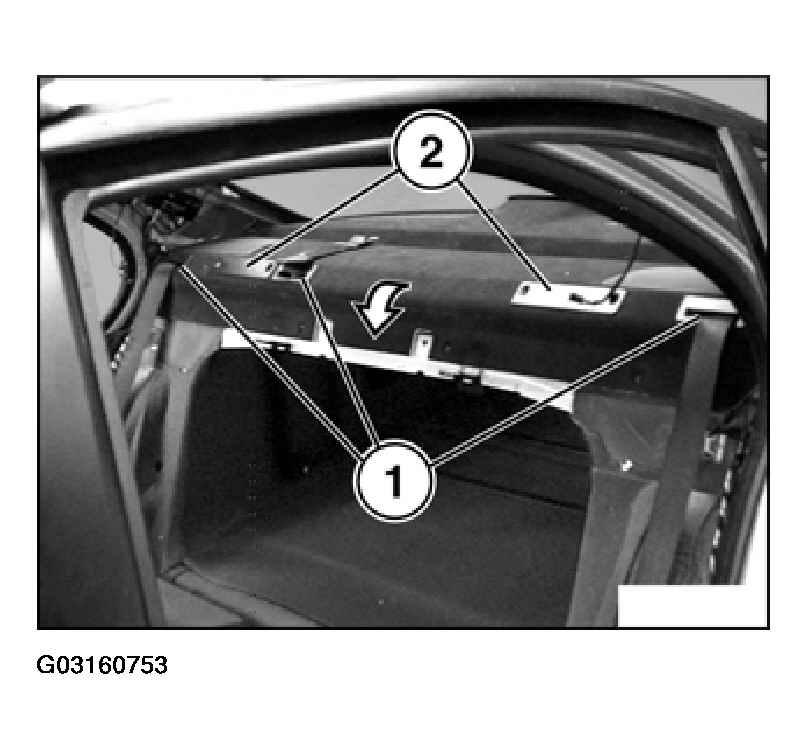

Release screws and remove mounting (1) for head restraint center. Lever out belt finisher strips (2) and feed out with strap.

Replacement only:

Lever out trims (3) for head restraints and remove.

Release expansion rivets (4) and pull out rear shelf towards front.

Fig 4: Removing Center Head Restraint Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Version with through-loading system:

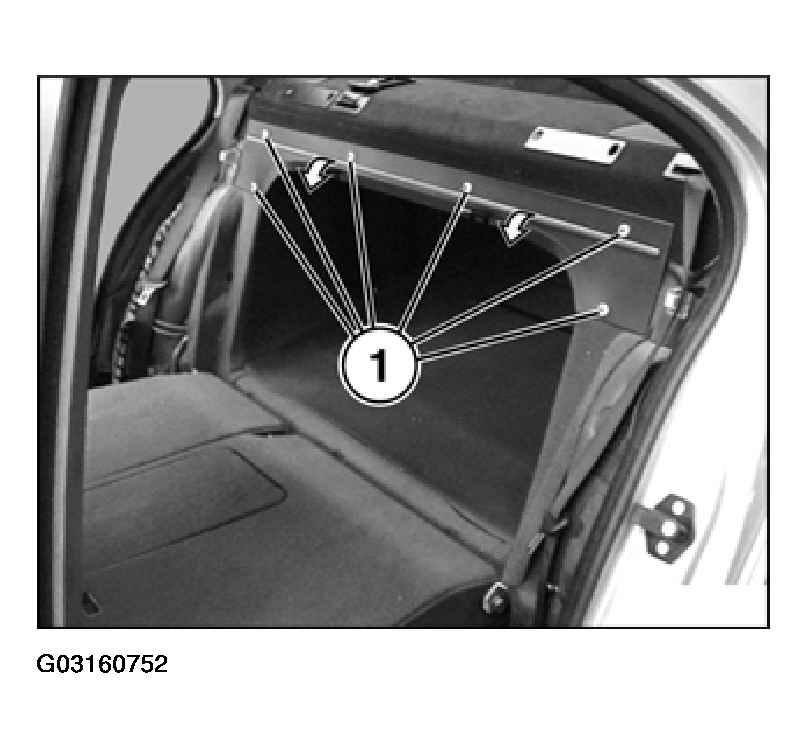

Release expansion rivets (1) and lever out trim.

Fig 5: Removing Expansion Rivets (1) And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Version with through-loading system:

Lever out belt finisher strips (1) and feed out with strap.

Only replace:

Lever out trims (2) for head restraints and remove.

Remove parcel shelf towards front.

Fig 6: Removing Belt Finisher Strips (1), Trims For Head Restraints & Remove Parcel Shelf

Courtesy of BMW OF NORTH AMERICA, INC.

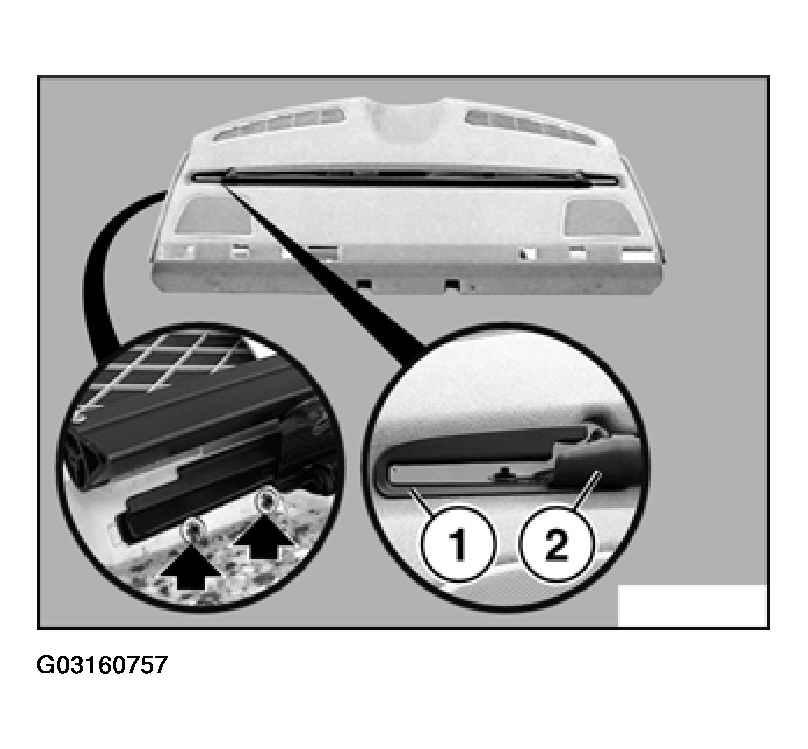

Installation:

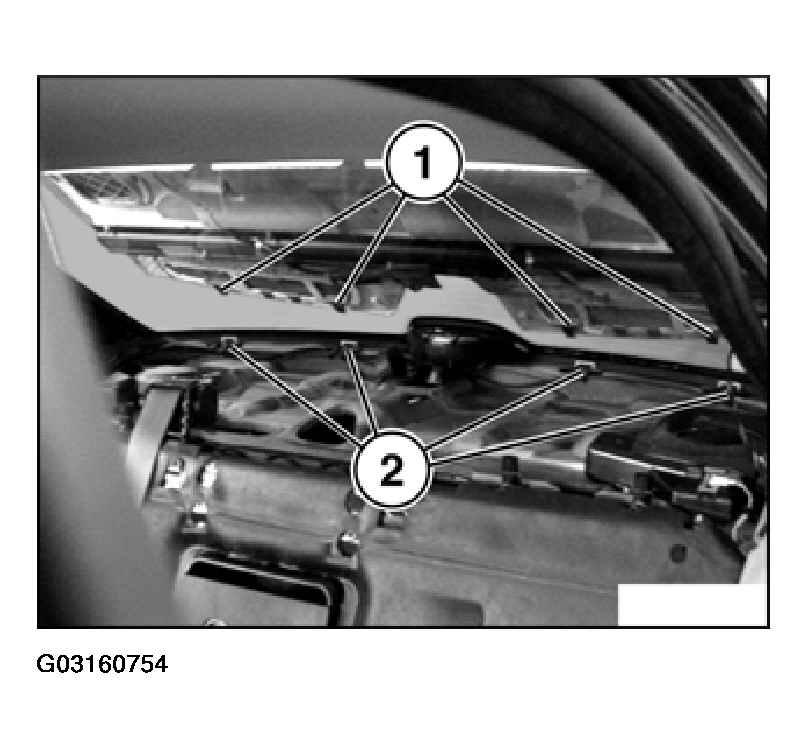

Push pins (1) of rear shelf into guides (2).

Fig 7: Pushing Pins Of Rear Shelf Into Guides

Courtesy of BMW OF NORTH AMERICA, INC.

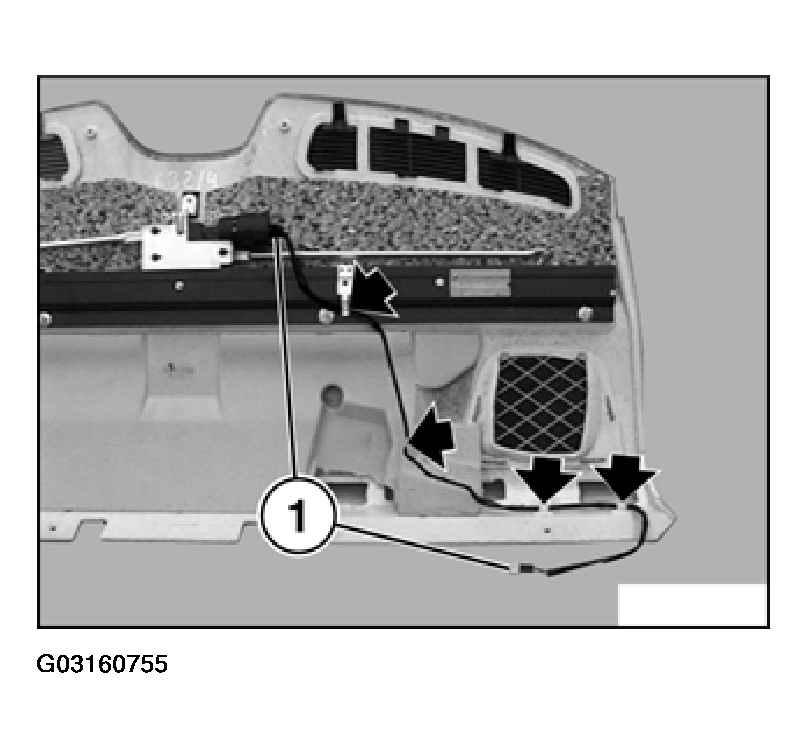

If necessary, remove or replace rear window roller blind:

If necessary, expose cable (1).

Fig 8: Exposing Rear Window Roller Blind Cable

Courtesy of BMW OF NORTH AMERICA, INC.

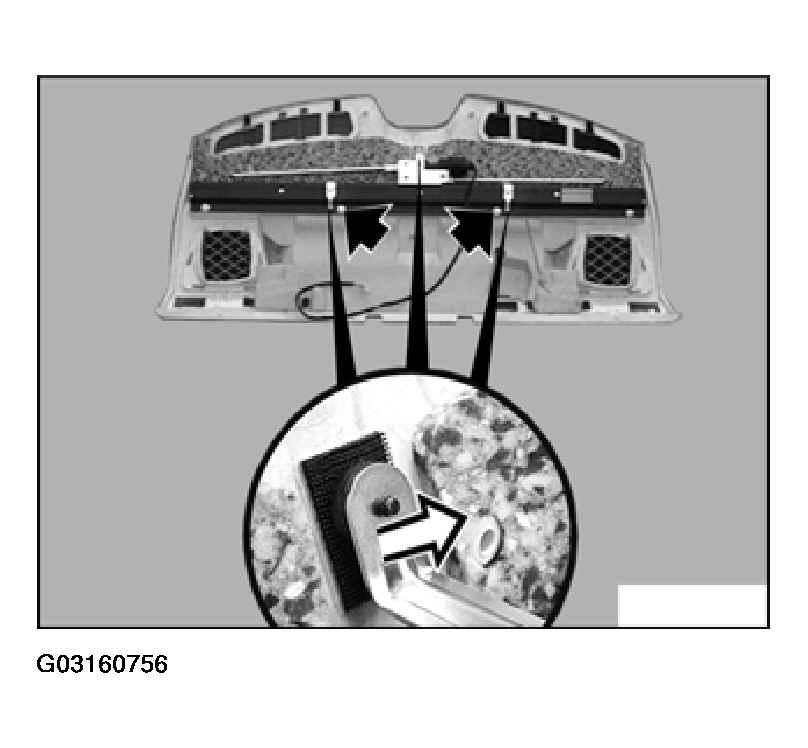

If necessary, release nuts and remove Velcro-type fasteners.

Installation:

Tightening torque, refer to 51 46 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 9: Removing Nuts & Velcro-Type Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release toothed disks and lever out trims (1) on left/right. Feed out rear window roller blind (2) and remove.

Installation:

Check function.

Fig 10: Removing Rear Window Roller Blind (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

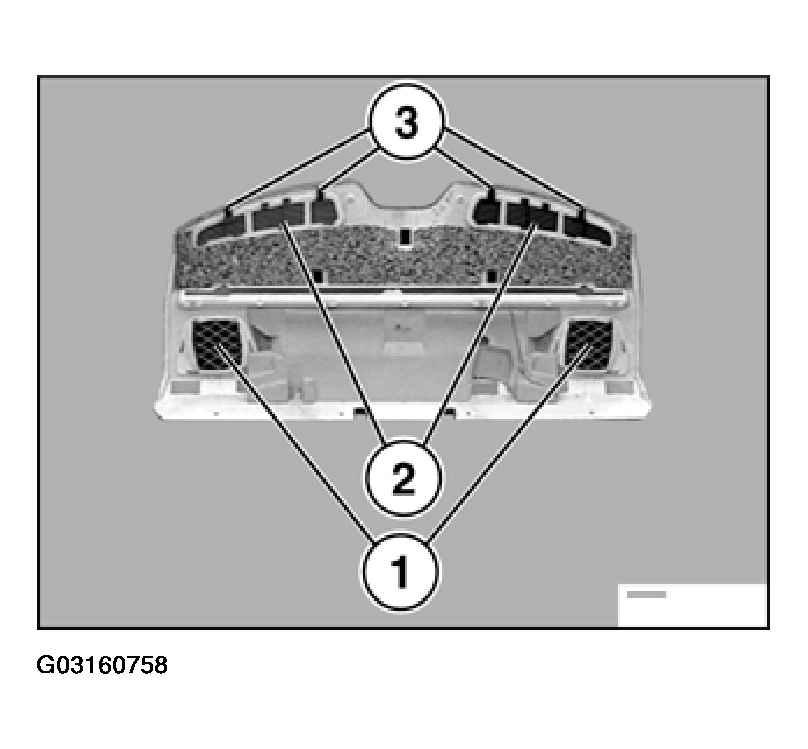

Remove speaker finishers (1).

Lift out catches (3) and remove both trim grills (2).

Remove foam support from back shelf.

Fig 11: Replacing Speaker Finishers

Courtesy of BMW OF NORTH AMERICA, INC.
