65 90 530 Removing and installing magnetic field sensor

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Removing trim for oddments tray, refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR ODDMENTS TRAY (BACK SHELF)

Open flap in rear left side panel. Remove rear left wheel arch trim. Disconnect plug-in connection.

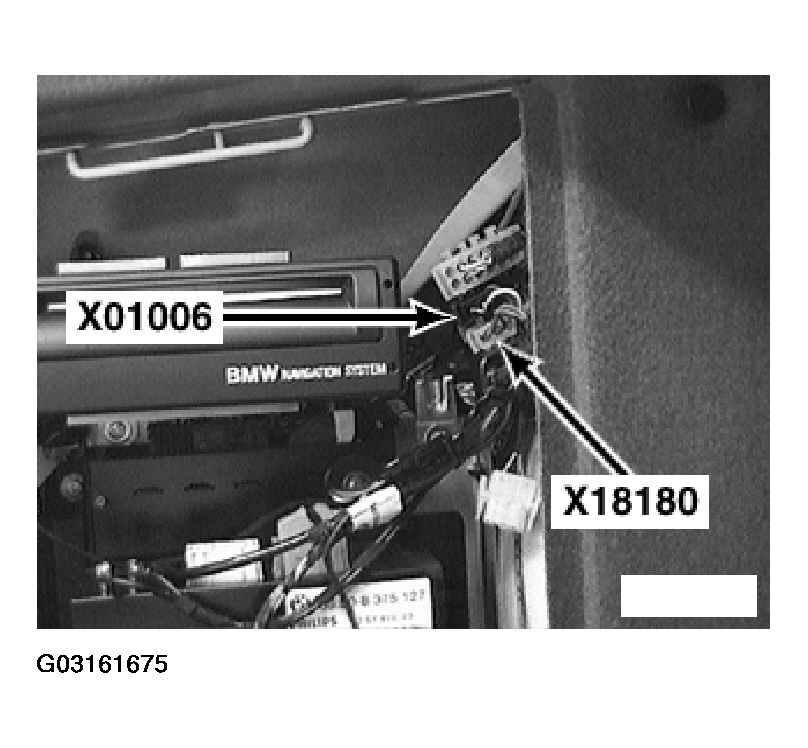

Fig 1: Disconnecting Magnetic Field Sensor Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Route lines from trunk out to the oddments tray.

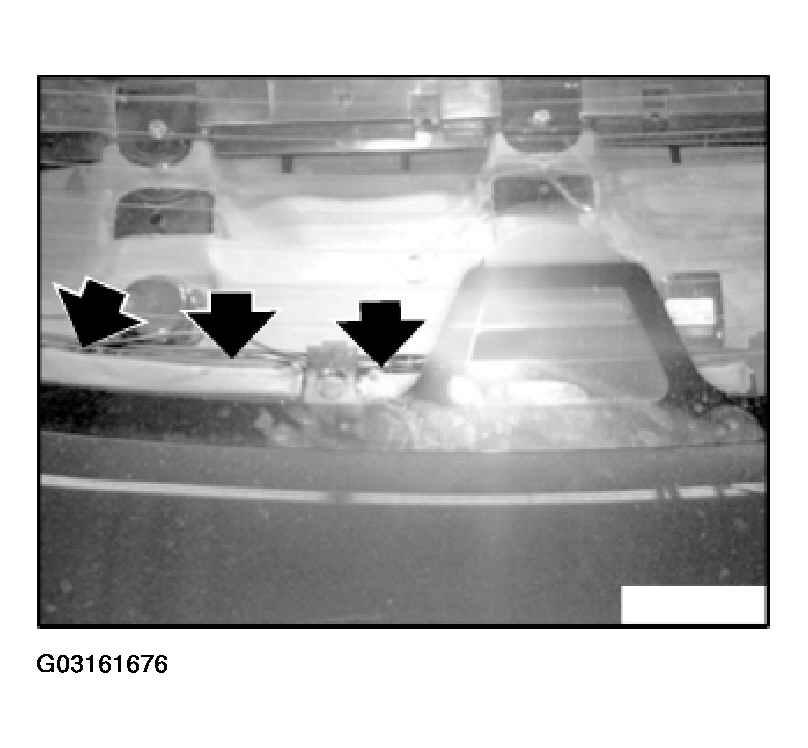

Fig 2: Removing Magnetic Field Sensor Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Pull magnetic field sensor upwards to unclip.

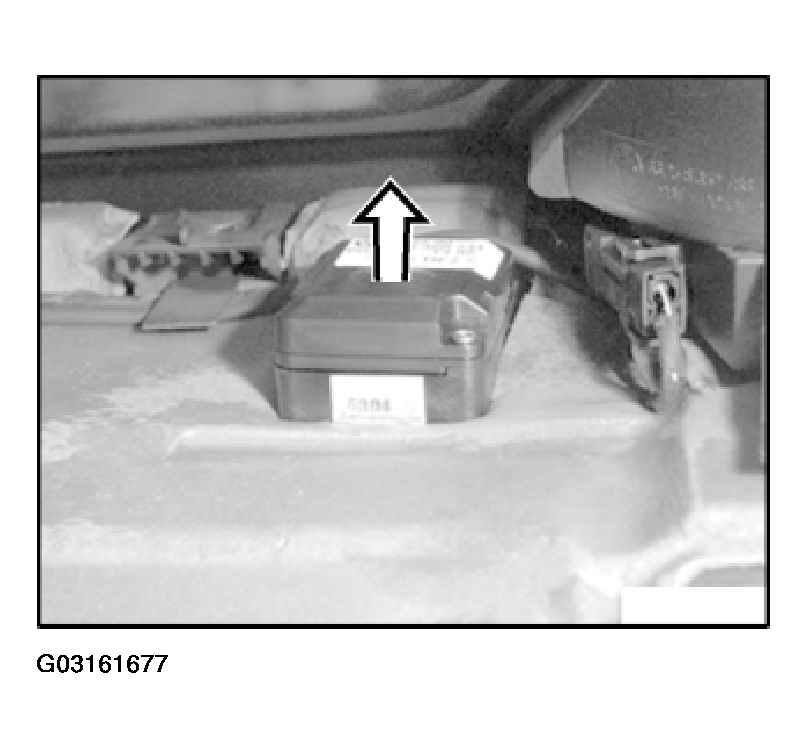

Fig 3: Removing Magnetic Field Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
