64 22 140 Removing and installing/replacing fresh-air grille on front door trim panel

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL

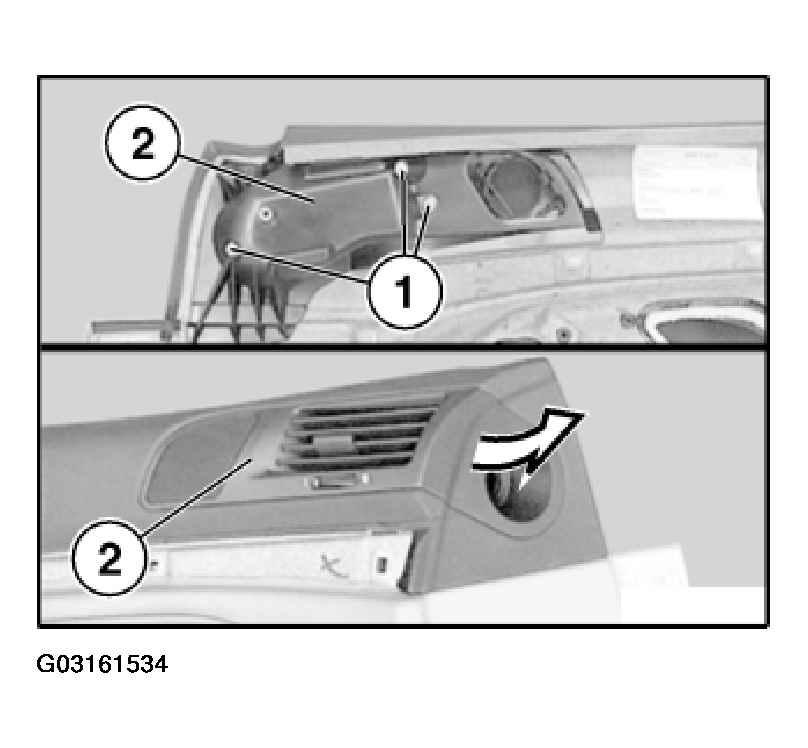

Unfasten screws (1) and lift out fresh-air grill (2) toward front out of door trim panel.

Fig 1: Lifting Out Fresh-Air Grill Toward Front Out Of Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When replacing fresh-air grill, observe the following:

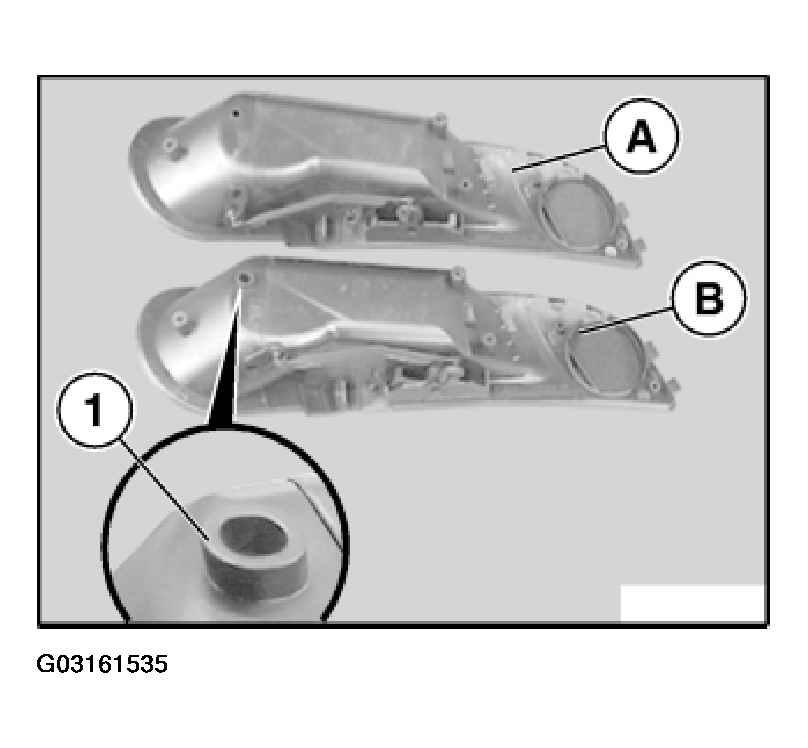

(A): Version up to 3/96.

(B): Version from 3/96.

The new version (B) has an additional dome (1) which must protrude through the cover in the door trim.

Fig 2: Identifying Fresh Air Grill Version

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When replacing fresh-air grill, observe the following:

Version up to 3/96

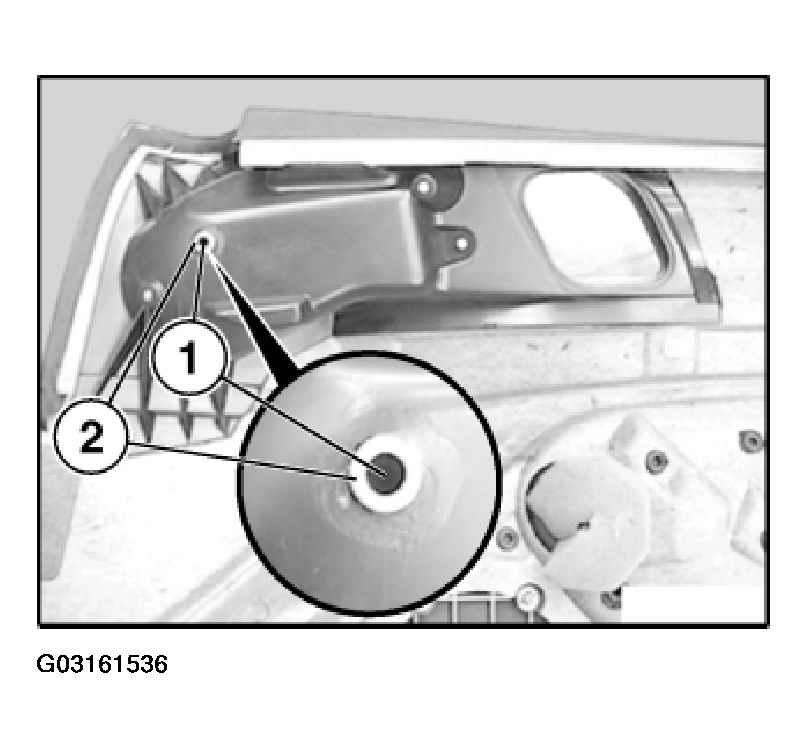

If a new fresh air grill is fitted to a door trim panel (version up to 3/96), the bore (1) in the door trim must be drilled out +/- to 14 mm. Unfasten disk (2) if necessary.

Fig 3: Installing Fresh Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.
