64 11 992 Removing and installing/replacing solar sensor
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Remove trim for instrument panel (upper section), refer to 51 45 050 REMOVING AND INSTALLING TRIM FOR UPPER SECTION OF INSTRUMENT PANEL .

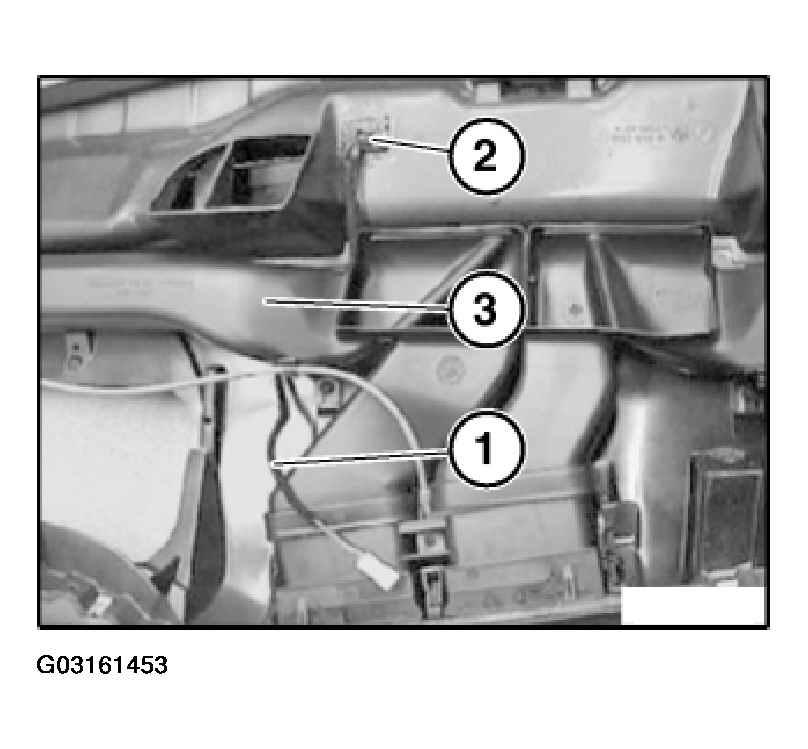

Feed out cable (1) from solar sensor (2) behind ventilation duct (3).

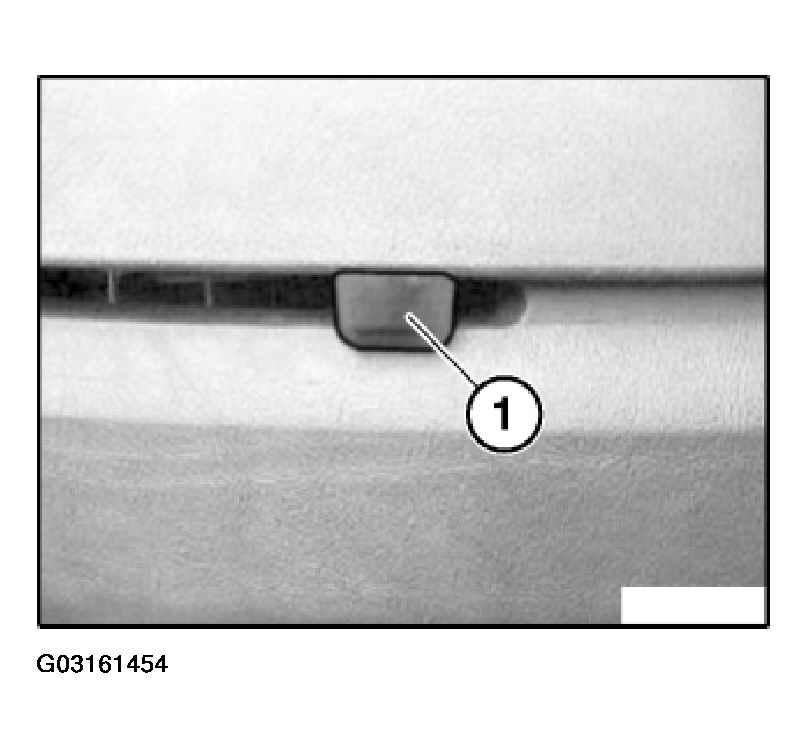

Detach solar sensor (1) upwards out of instrument panel.
