64 11 932 Replacing evaporator temperature sensor (A/C control)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove right glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

E39 only:

Release screws (1).

Pull cover on glovebox on left (2) in direction of arrow out of guides (3) and remove.

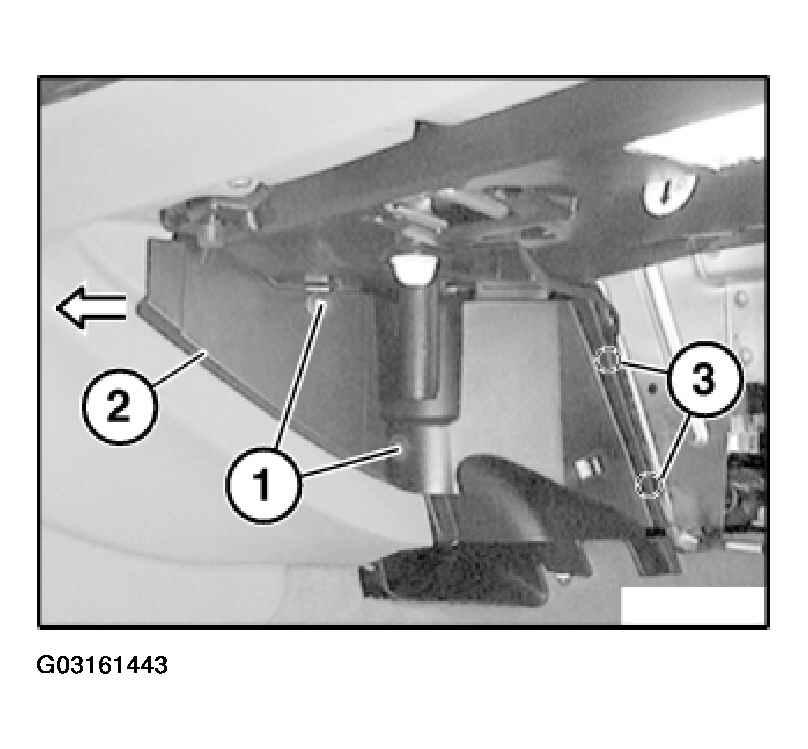

Fig 1: Removing Left Glovebox Cover (E39 Only)

G03161443

Courtesy of BMW OF NORTH AMERICA, INC.

E39, E53:

Unclip air duct for right footwell (1) and pull out in direction of arrow.

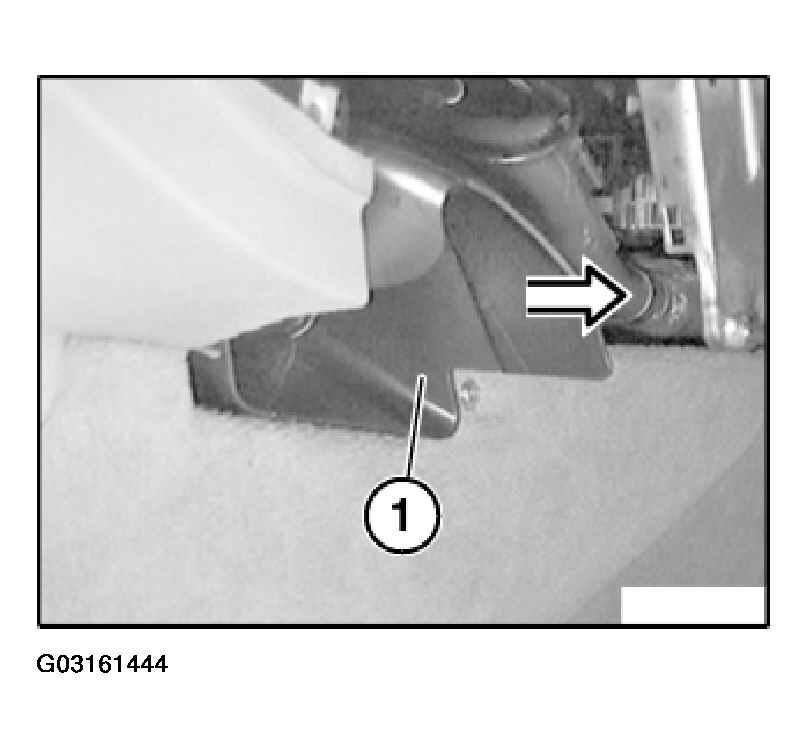

Fig 2: Removing Air Duct For Right Footwell (E39 And E53)

G03161444

Courtesy of BMW OF NORTH AMERICA, INC.

Break out repair cover (1) with pointed pliers in direction of arrow.

Disconnect connector (2).

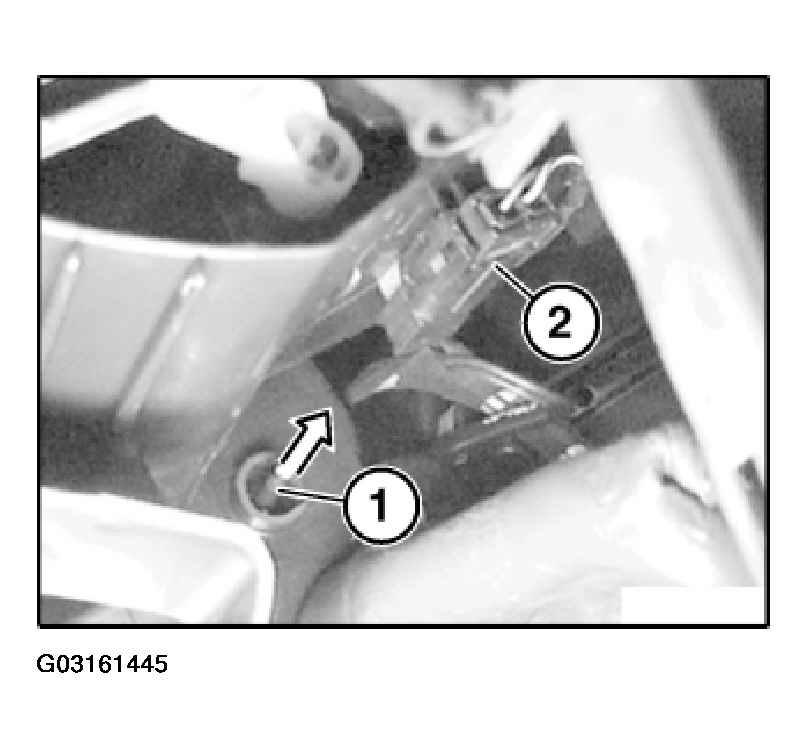

Fig 3: Breaking Out Repair Cover And Disconnecting Connector (A/C control)

G03161445

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug of faulty evaporator temperature sensor (1) and pull out in direction of arrow.

NOTE: Secure plug of faulty evaporator temperature sensor with fabric adhesive tape.
Insert new evaporator temperature sensor in opening (2) and lock into place.

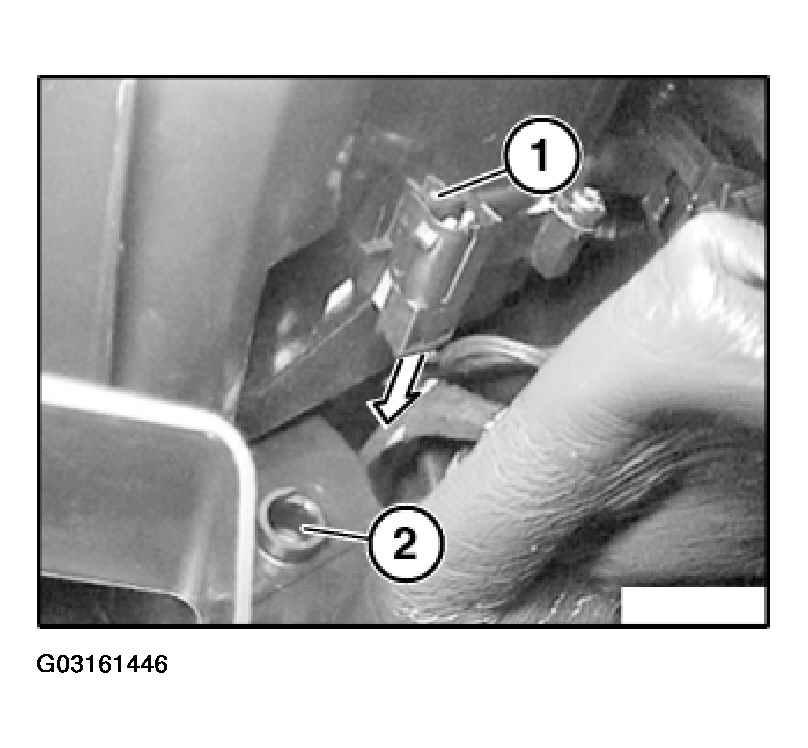

Fig 4: Replacing Evaporator Temperature Sensor (A/C control)

G03161446

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure evaporator temperature sensor (1) and cable (2) are correctly seated.

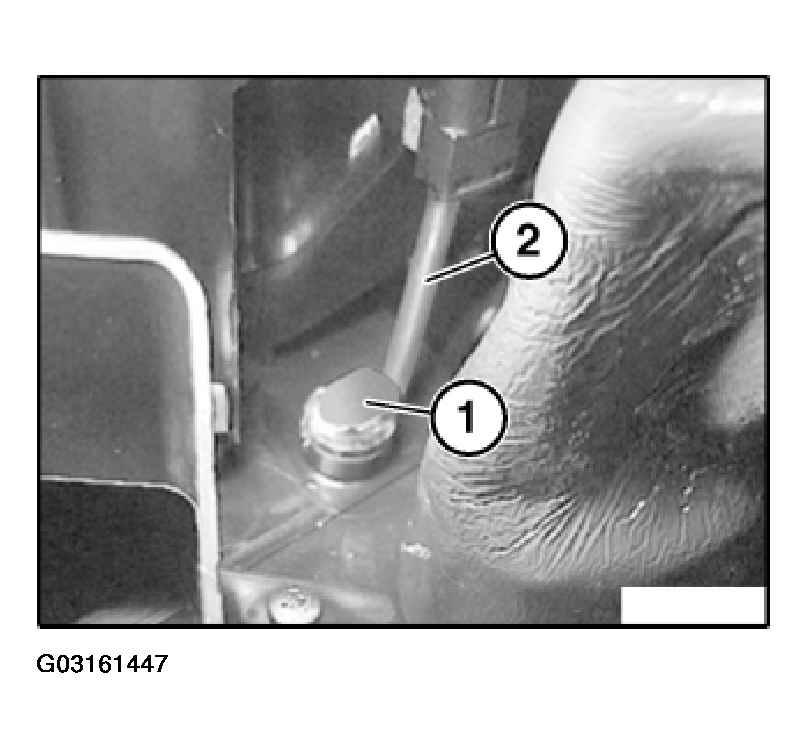

Fig 5: Installing Evaporator Temperature Sensor (A/C control)

G03161447

Courtesy of BMW OF NORTH AMERICA, INC.
