64 11 850 Replacing servodrive of rear compartment flap (automatic A/C, from 09/97)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove side carpet on right side of center console, refer to appropriate procedure in 51 16 200 REMOVING AND INSTALLING ODDMENTS TRAY .

Unclip air duct for right footwell (1) and pull out in direction of arrow.

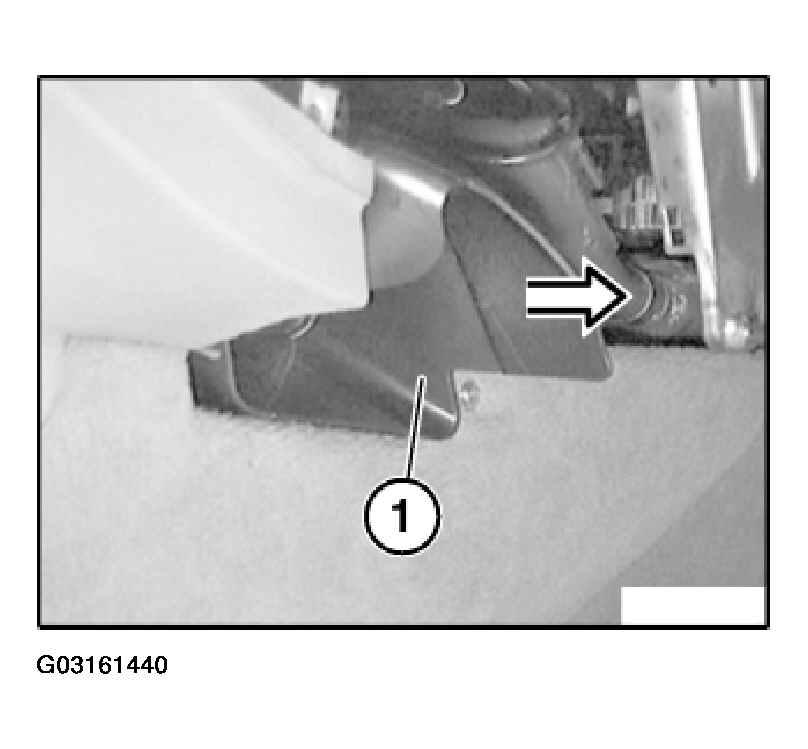

Fig 1: Removing Air Duct For Right Footwell

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

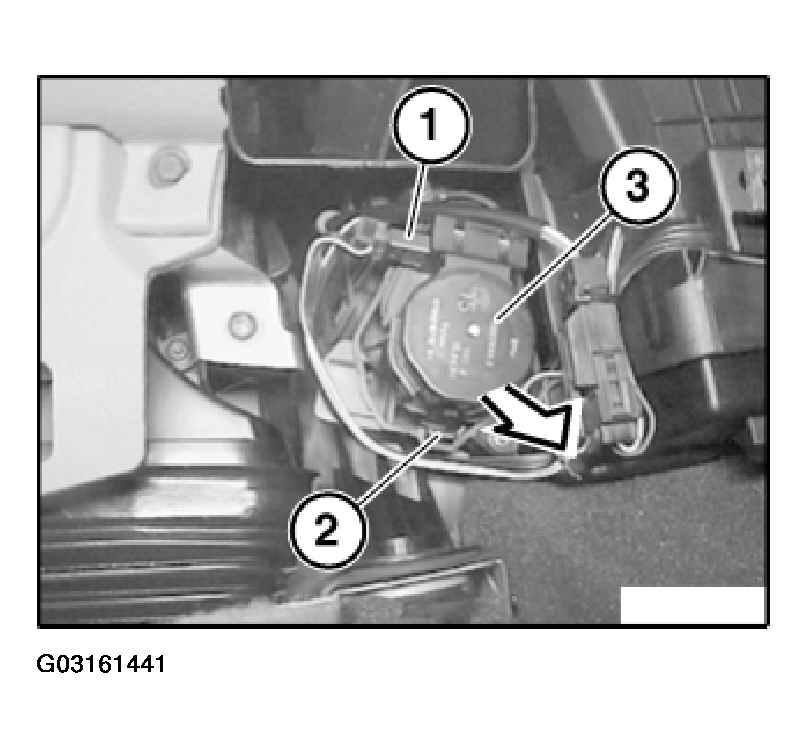

Fig 2: Removing Rear Compartment Flap Servodrive (Automatic A/C, From 09/97)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of rear compartment flap to position of servodrive.

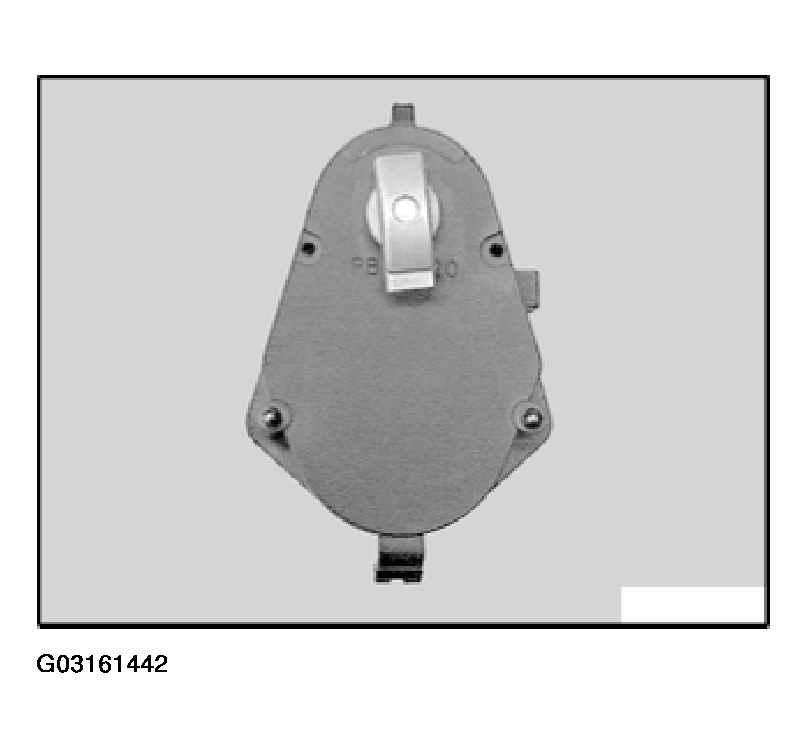

Fig 3: Identifying Servodrive Installed Position

Courtesy of BMW OF NORTH AMERICA, INC.
