64 11 847 Replacing servodrive of dynamic air flap (automatic A/C, from 03/2000)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim. Remove right glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

Disconnect plug connection (1).

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

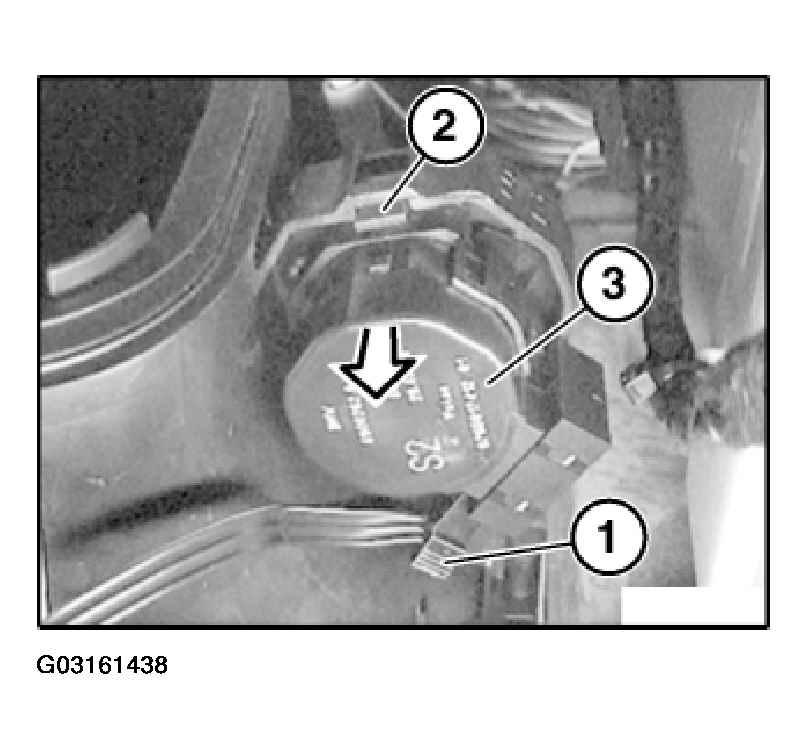

Fig 1: Removing Dynamic Air Flap Servodrive (Automatic A/C, From 03/2000)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of dynamic air flap to position of servodrive.

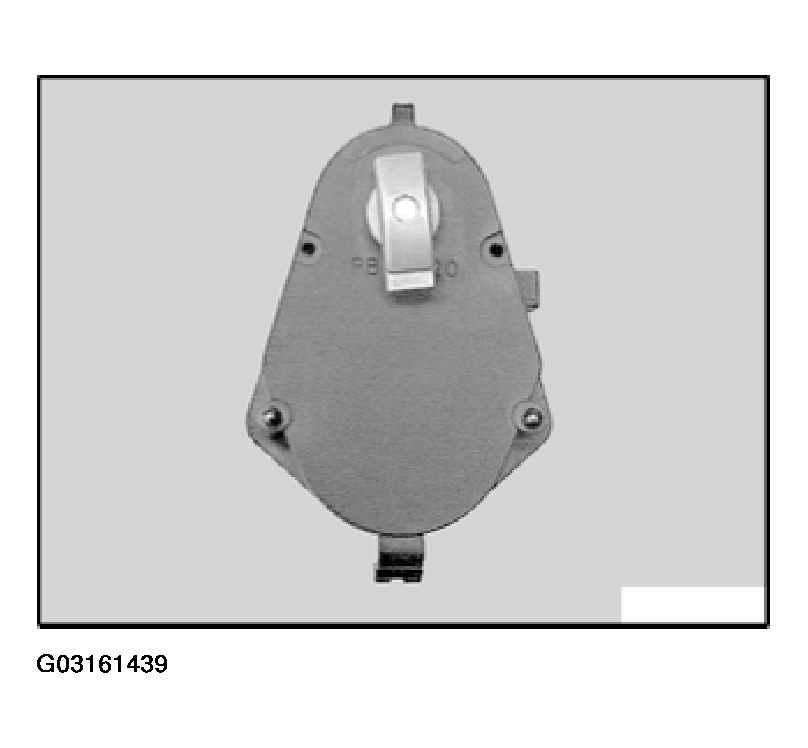

Fig 2: Identifying Servodrive Installed Position

Courtesy of BMW OF NORTH AMERICA, INC.
