64 11 322 Replacing front plate (air conditioner control)
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Remove heater controls, refer to 64 11 749 REMOVING AND INSTALLING/REPLACING HEATER CONTROLS (AUTOMATIC AIR CONDITIONER) .

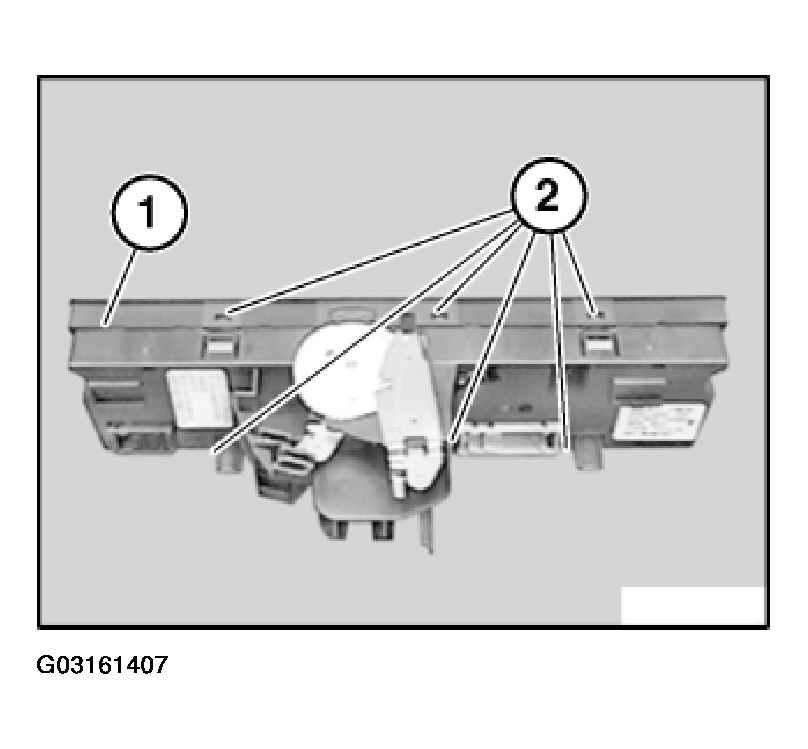

Lever out front plate (1) at openings (2) and remove.
