64 53 550 Removing and installing or replacing condenser for air conditioner
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Refrigerant drawn off from A/C system, refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .
Remove radiator, refer to 17 11 000 REMOVING AND INSTALLING RADIATOR (M54) .

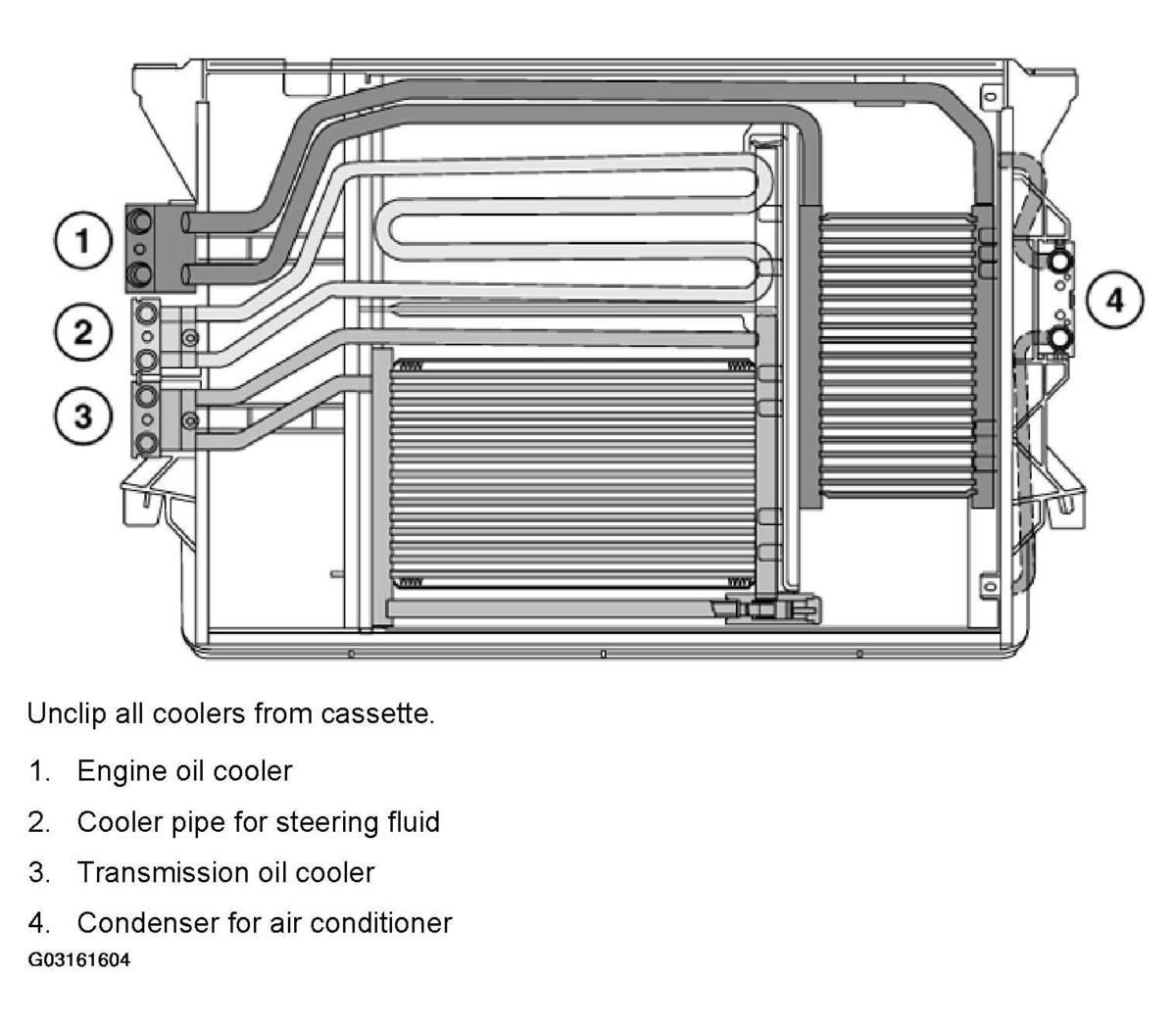

Remove cassette, refer to 17 11 530 REMOVING AND INSTALLING CASSETTE (CONDENSER FOR AIR CONDITIONER) .
