Bleeding Independant Heating (Thermo Top S)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Top up coolant, refer to 17 00 005 DRAINING OFF AND TOPPING UP COOLANT (M54) .

Fit special tool 17 0 002/ 17 0 005 to expansion tank and develop a pressure of approx. 1.5 bar. Check cooling system for water leaks when doing so.

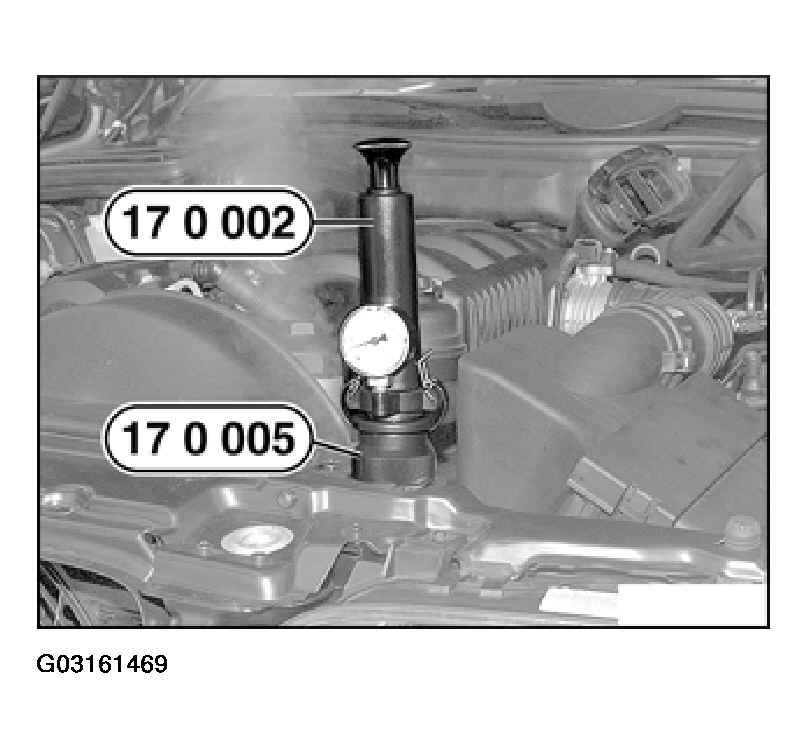

Fig 1: Fitting Special Tool 17 0 002/ 17 0 005 To Expansion Tank For Checking Cooling System Water Leakage

Courtesy of BMW OF NORTH AMERICA, INC.

Remove microfilter on the left side (in direction of travel), refer to 64 31 010 REPLACING MICROFILTER FOR INTERIOR VENTILATION .

Open bleeder screw until bubble-free coolant emerges. Close bleeder screw, undo hose clip.

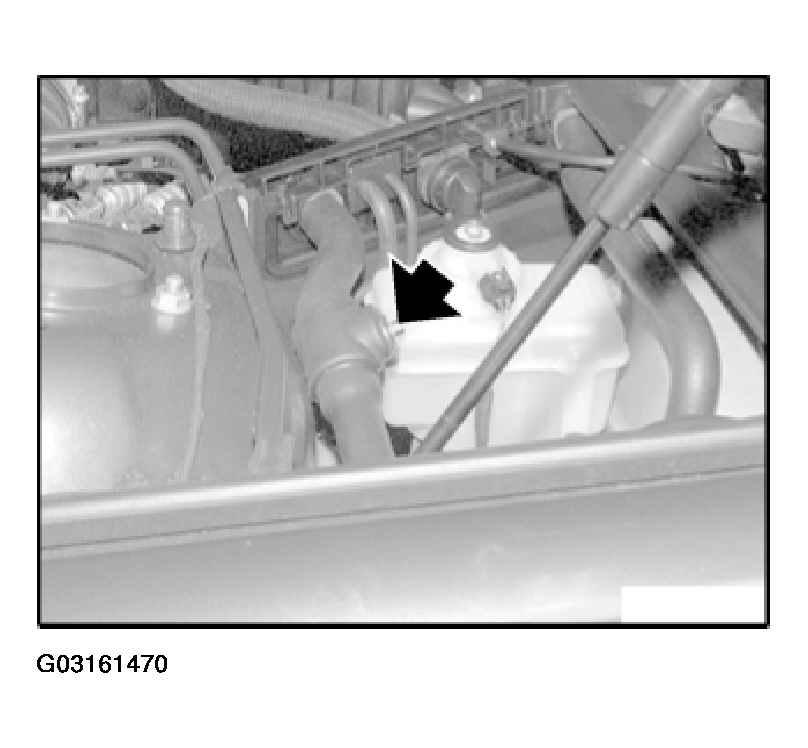

Fig 2: Locating Bleeder Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Start independent parking heater and wait for combustion. Start engine and run at 4000 RPM. The independent heating system assumes after-running mode. The circulation pump continues to operate. Within 2 minutes of starting engine, open and close bleeder screw on independent heating unit several times. Allow engine to warm up until thermostat valve opens. This completes the venting process. Turn off engine, allow to cool down and check coolant level; if necessary, draw off or top up.
