17 00 005 Draining off and topping up coolant (M54)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

Recycling

Catch and dispose of drained coolant. Observe country-specific waste-disposal regulations.

NOTE: Follow instructions for working on cooling system.

Draining Coolant:

Open cap on coolant expansion tank.

Slacken vent plug.

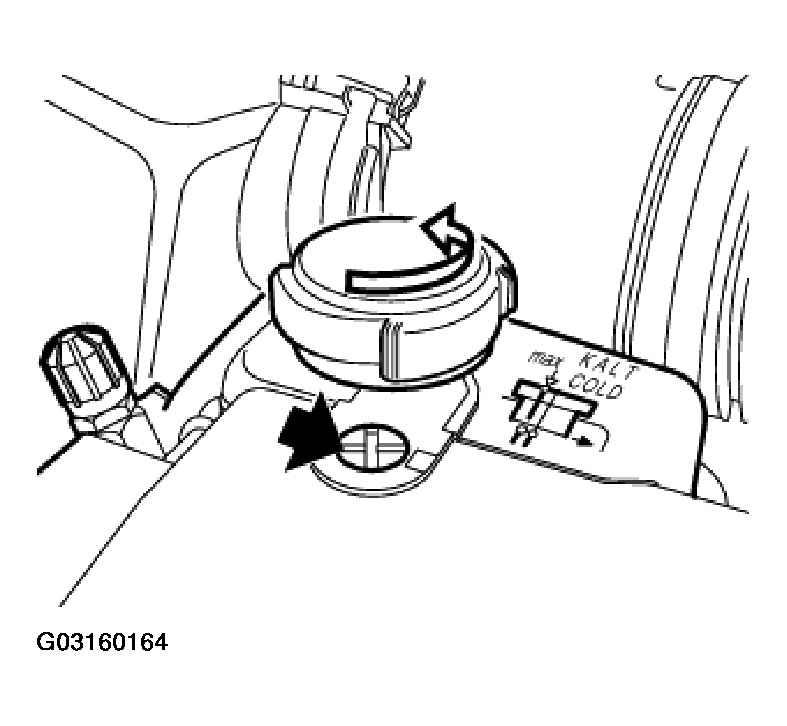

Fig 1: Locating Vent Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front splash guard.

Open drain plug (1) at bottom of radiator.

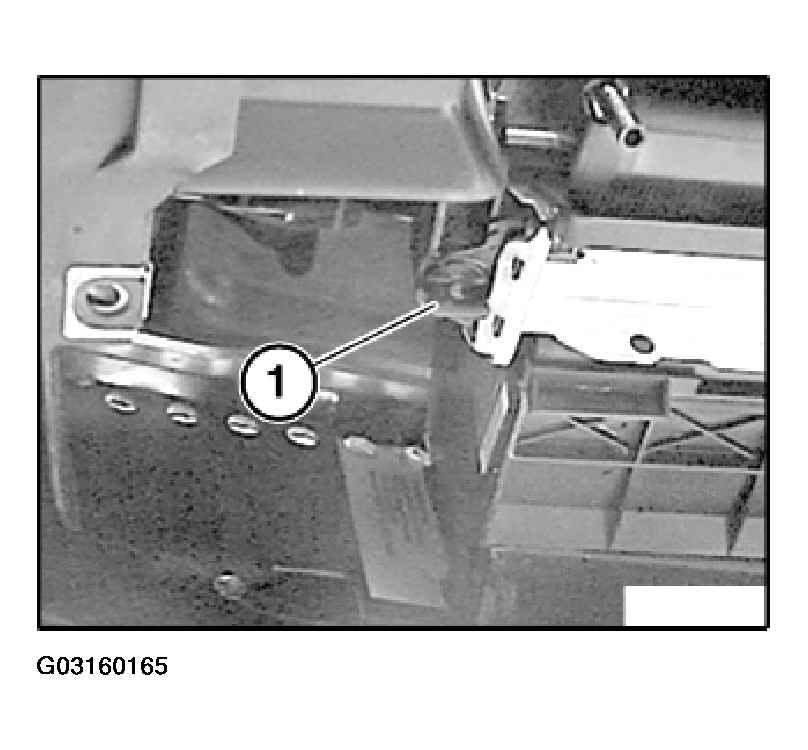

Fig 2: Opening Radiator Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace seal.

Drain, catch and dispose of coolant.

Open drain plug on engine block.

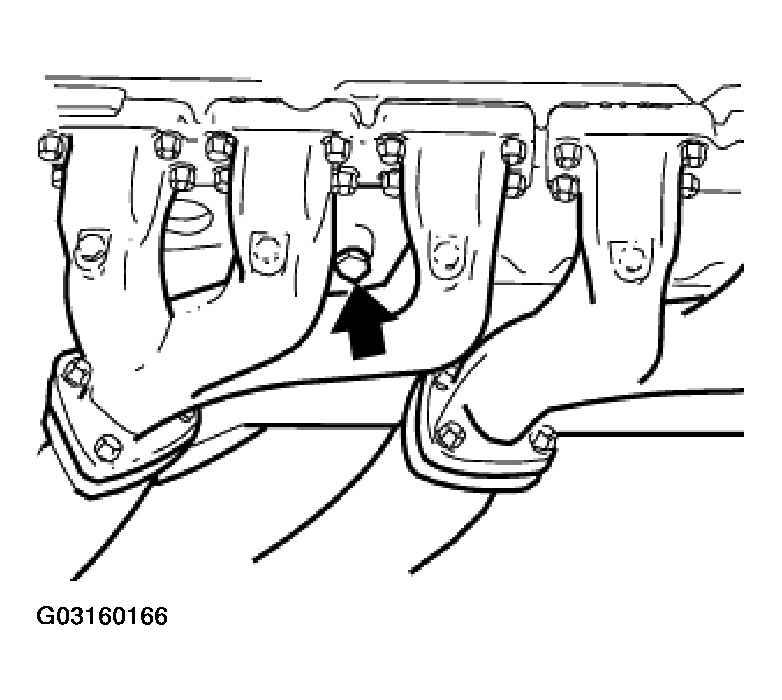

Fig 3: Opening Drain Plug On Engine Block

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace seal.

Tightening torque - 25 N.m.

Drain, catch and dispose of coolant.

Adding Coolant:

NOTE: Slowly fill coolant expansion tank with coolant.

Screw in vent plug when bubble-free coolant emerges.

Pour coolant into coolant expansion tank up to max. cold fill level.

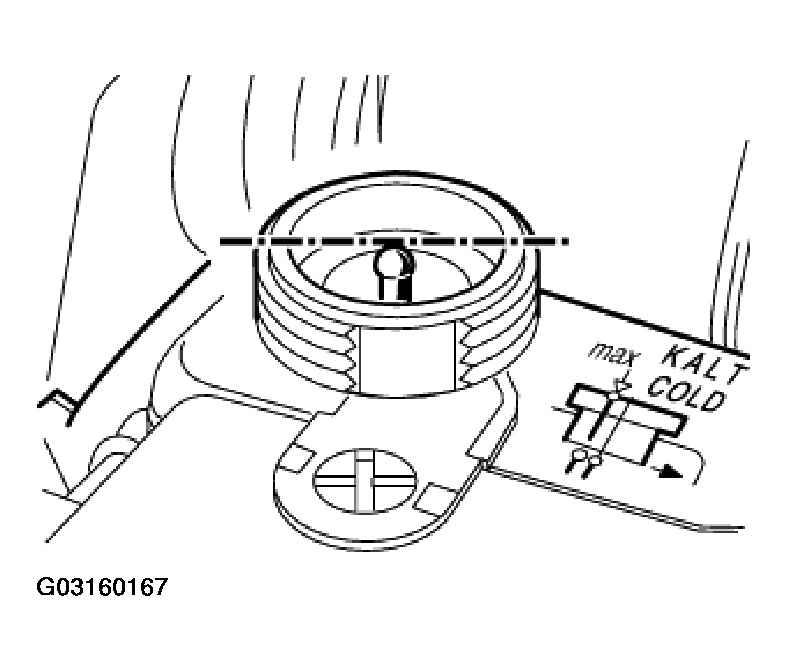

Fig 4: Adding Coolant

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The tank mark indicates the fluid level at approx. 20°C.

Use only recommended coolant. Refer to OPERATING FLUIDS - RADIATOR .

Vent cooling system and check for leaks, refer to 17 00 039 BLEEDING COOLING SYSTEM AND CHECKING FOR WATER LEAKS .
