64 12 770 Removing and installing/replacing changeover valve for latent heat accumulator

Remove left front wheel and left wheel arch trim. See 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL and 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER

If necessary, remove plastic cover from valve unit

Disconnect hoses (1), unfasten hose clip (2) and pull off hoses.

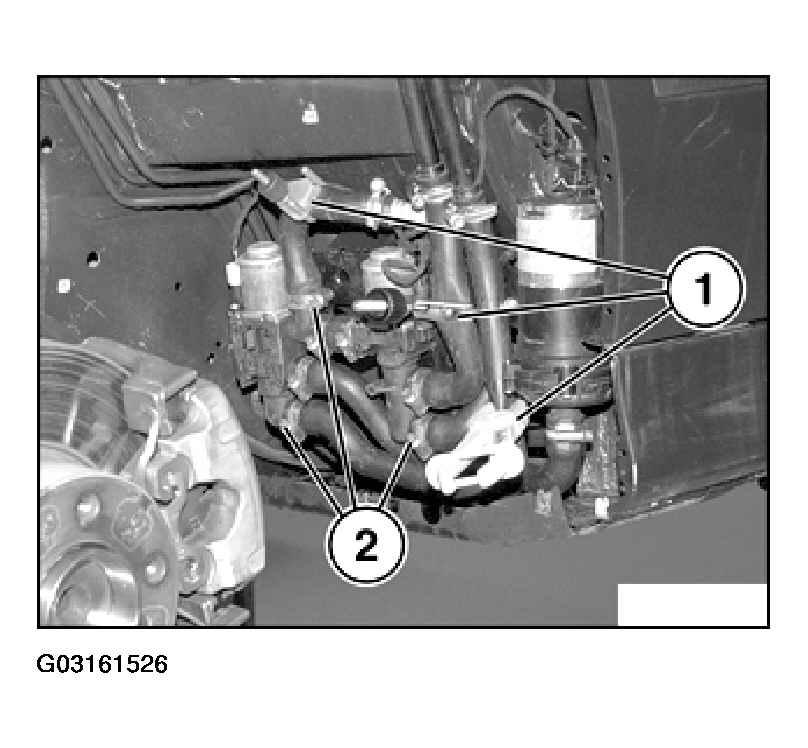

Fig 1: Disconnecting Latent Heat Accumulator Valve Unit Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

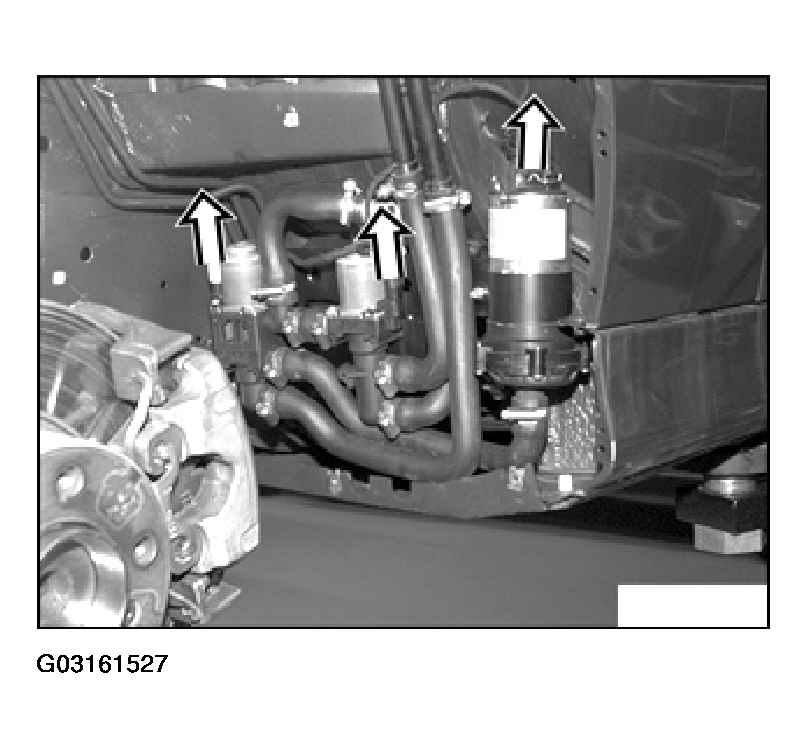

Fig 2: Disconnecting Latent Heat Accumulator Valve Unit Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Slide valve unit upwards and lift forwards to remove.

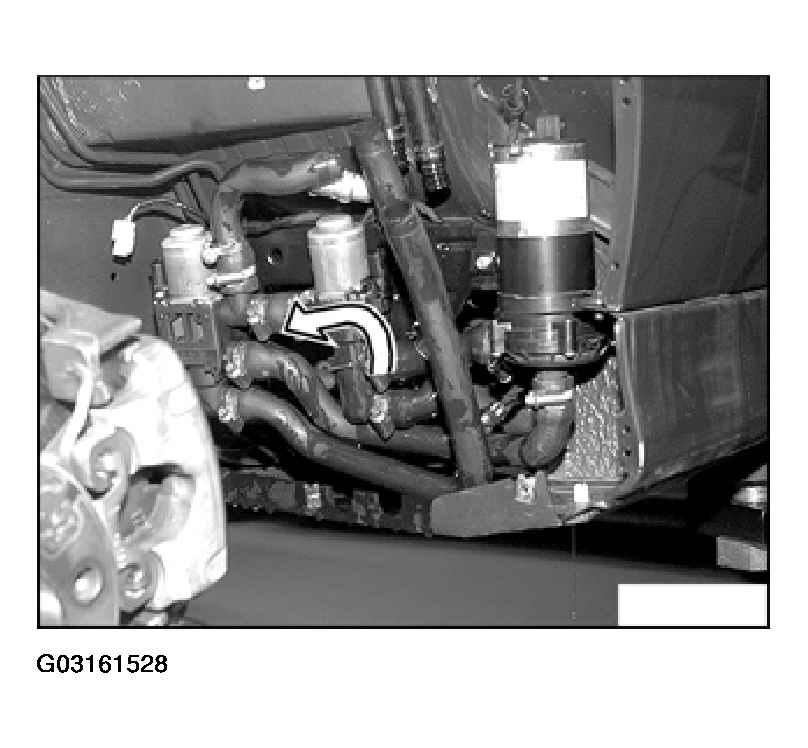

Fig 3: Removing Latent Heat Accumulator Valve Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1). Loosen screws (2).

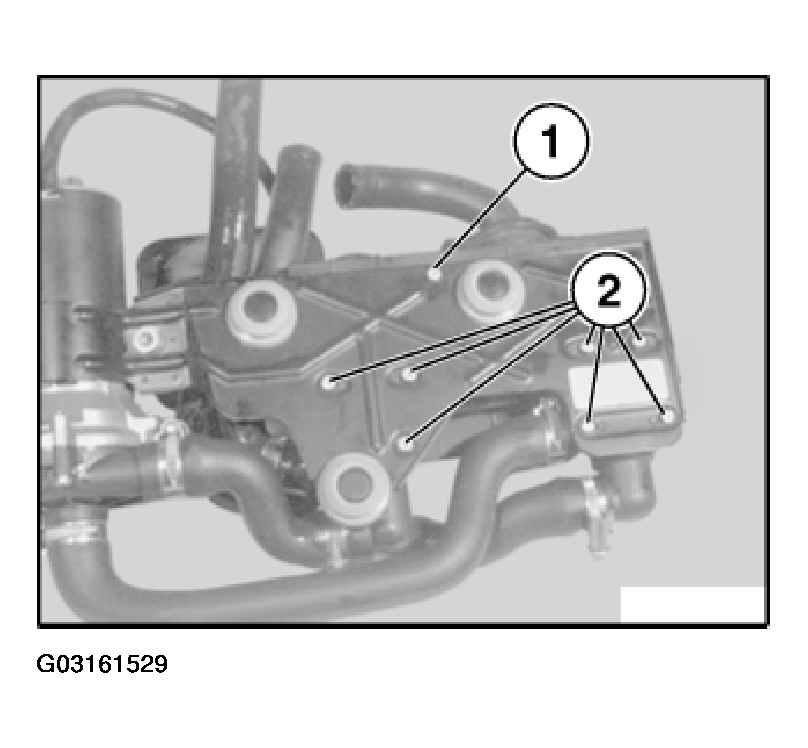

Fig 4: Removing Latent Heat Accumulator Valve Unit Cover Bolts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift valve cover upwards to remove.

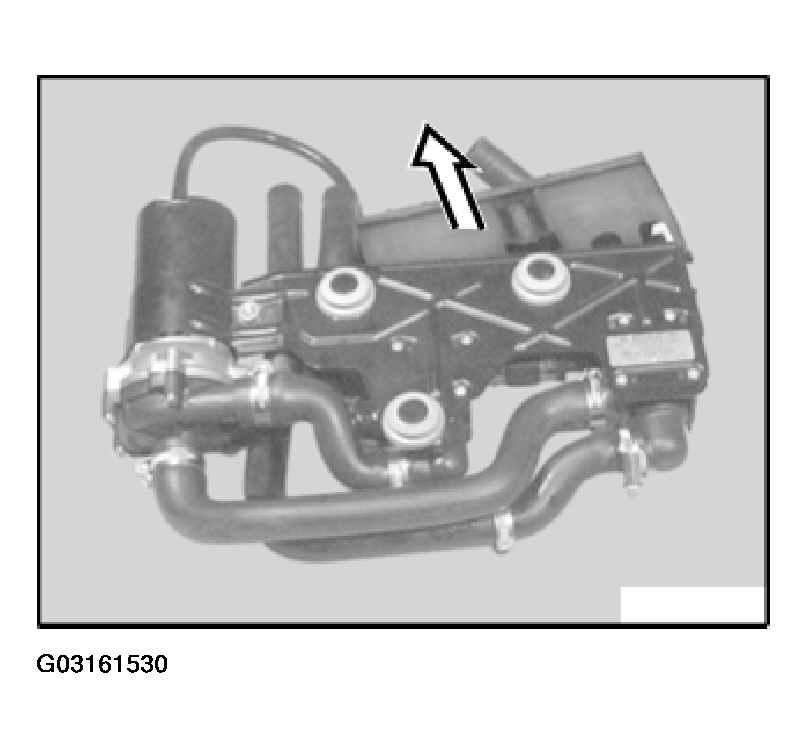

Fig 5: Removing Latent Heat Accumulator Valve Unit Valve Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hose clip and pull off hoses (1, 2, and 4).

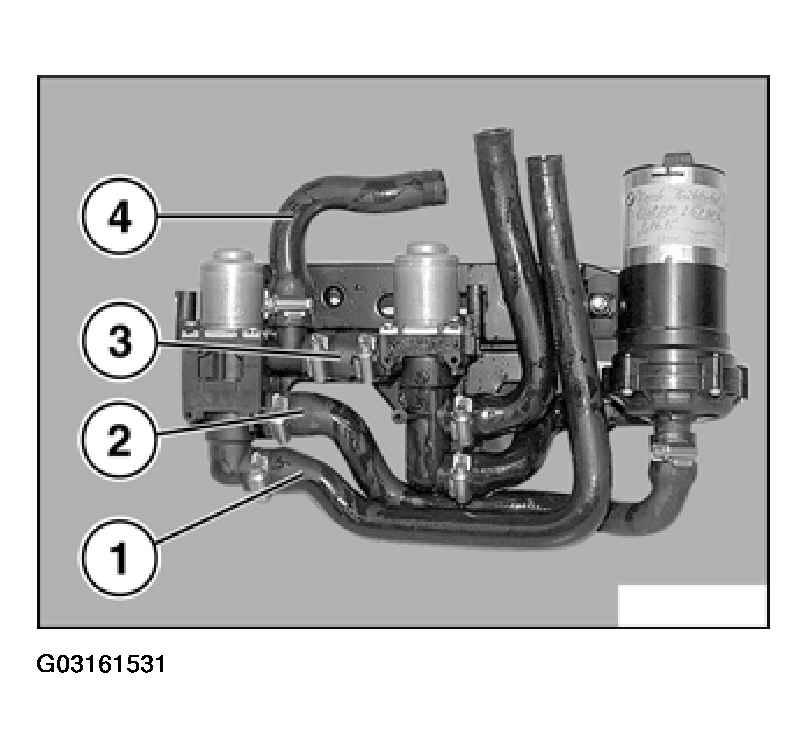

Fig 6: Removing Changeover Valve Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and pull changeover valve sideways out of hose (3).

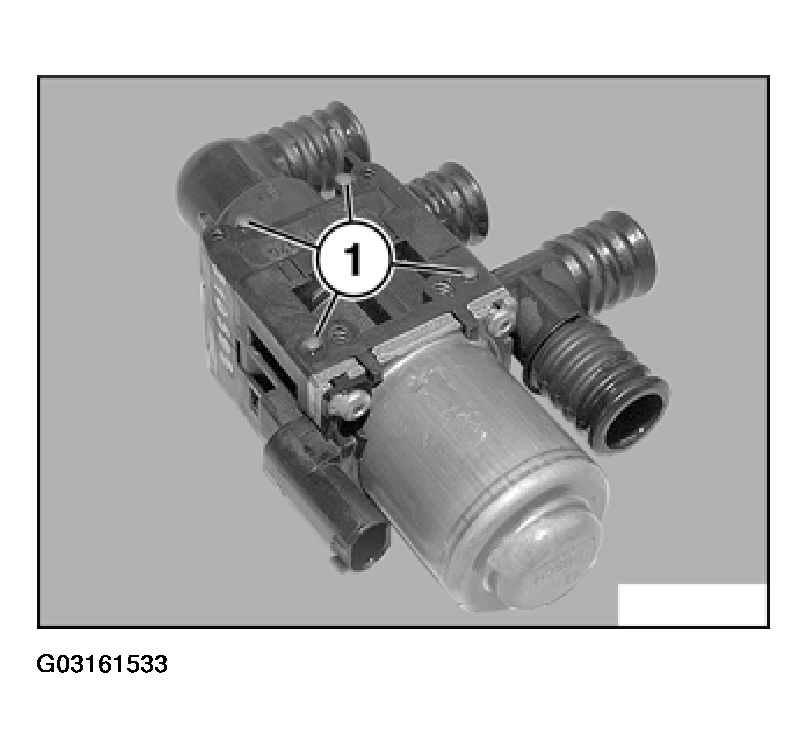

Fig 7: Removing Changeover Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert dowel pins (1) into bore of bracket and screw down valve.

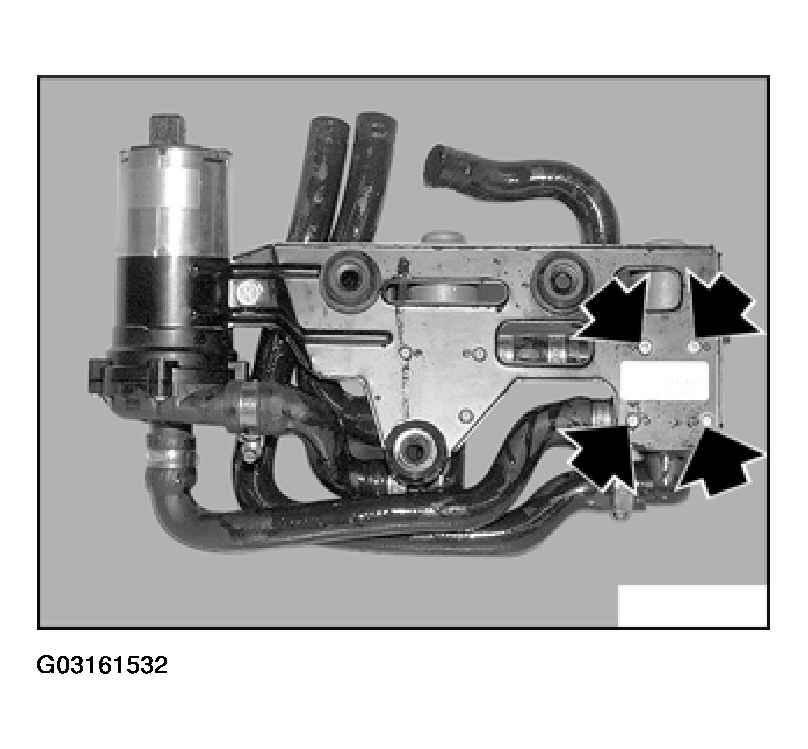

Fig 8: Installing Changeover Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After completion of repair work, bleed the latent heat accumulator, refer to 64 12 VENTING LATENT HEAT ACCUMULATOR (LWS)
