51 71 040 Removing and installing/replacing front left or right wheel arch cover

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front wheel. See 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL

Remove screws (1) and (2).

Fig 1: Removing Front Splash Guard Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1) and (3).

Release screws (2).

Remove front wheel arch cover (4).

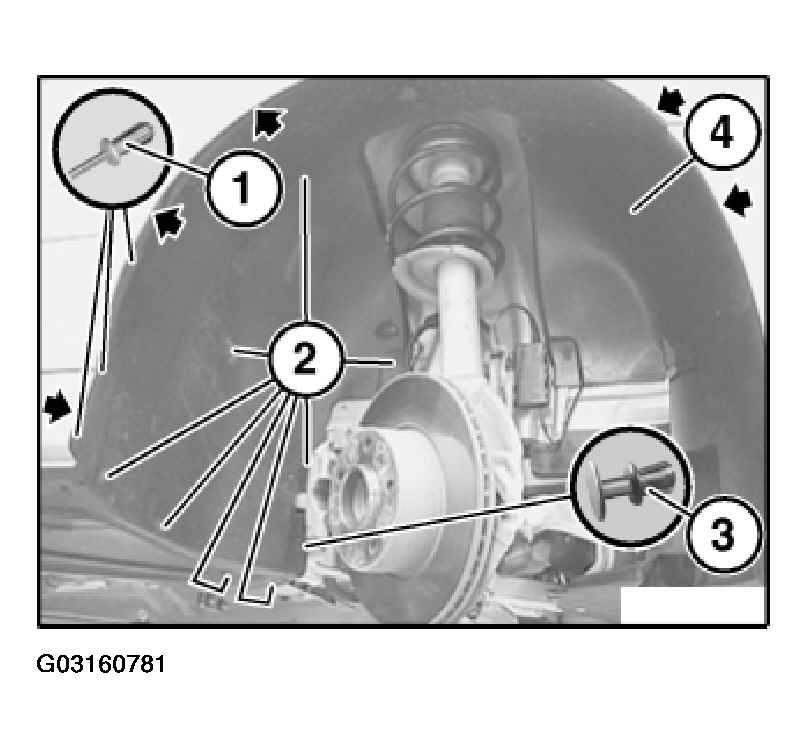

Fig 2: Removing Front Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure front wheel arch cover is correctly seated against side wall.
