64 12 730 Removing and installing/replacing temperature sensor for latent heat accumulator

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove A-pillar trim from right footwell and right rocker strip.

Remove front right rocker panel strip, refer to 51 47 000 REMOVING AND INSTALLING/REPLACING THE FRONT (INSIDE) LEFT OR RIGHT ROCKER PANEL STRIP .

Fold back carpet in footwell. Pull off connectors. Unfasten temperature sensor.

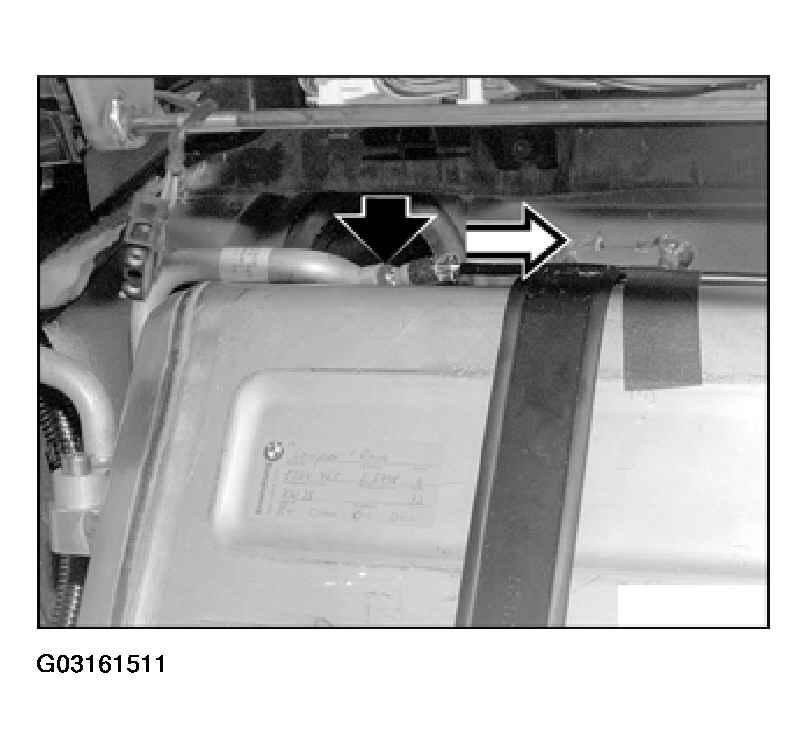

Fig 1: Removing Latent Heat Accumulator Temperature Sensor
G03161511Courtesy of BMW OF NORTH AMERICA, INC.
