51 47 000 Removing and installing/replacing the front (inside) left or right rocker panel strip

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect rocker panel strip from front and rear finisher strip. Unclip rocker panel strip from floor plate by pulling upwards. If necessary, lift clips off floor plate.

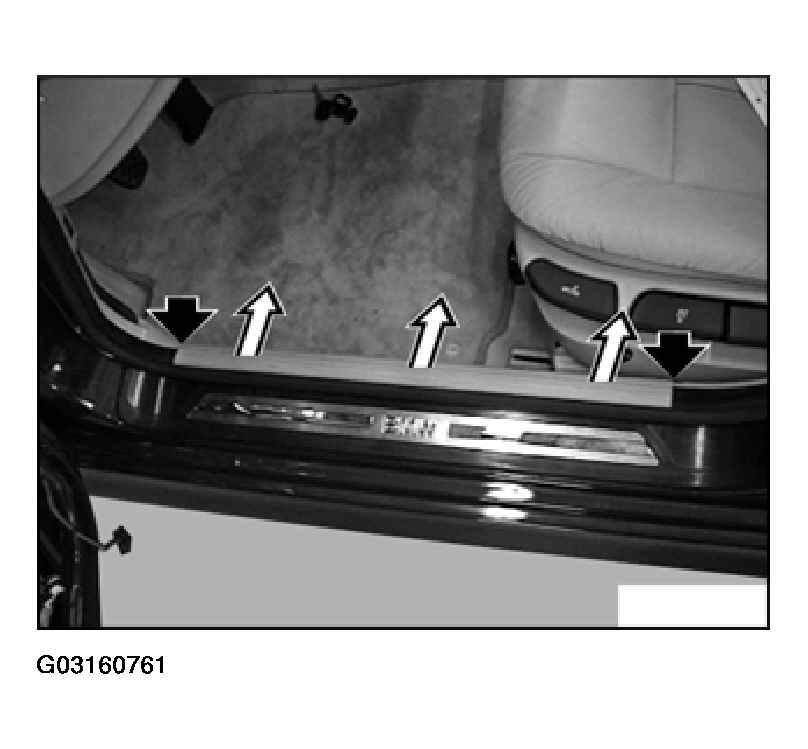

Fig 1: Removing Front (Inside) Rocker Panel Strips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide clips onto rocker panel strip.

If necessary, replace damaged clips.

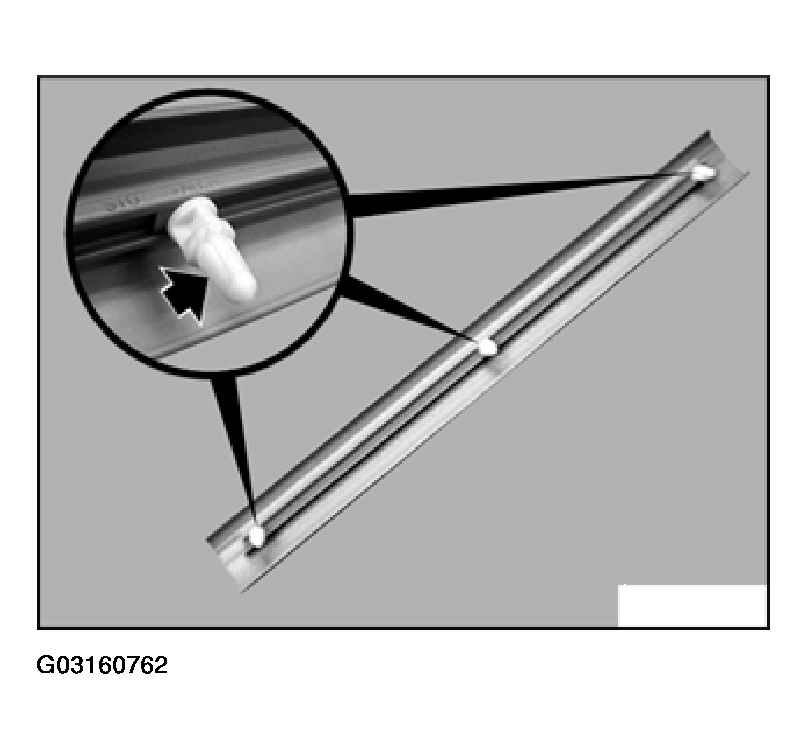

Fig 2: Replace Any Damaged Clips

Courtesy of BMW OF NORTH AMERICA, INC.
