64 12 016 Replacing complete heater (Thermo Top Z/C)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete heater, refer to 64 12 015 REMOVING AND INSTALLING COMPLETE HEATER (THERMO TOP Z/C) .

Release screws and remove bracket for heater (1).

Installation:

Replace exhaust sealing ring and ensure it is correctly seated.

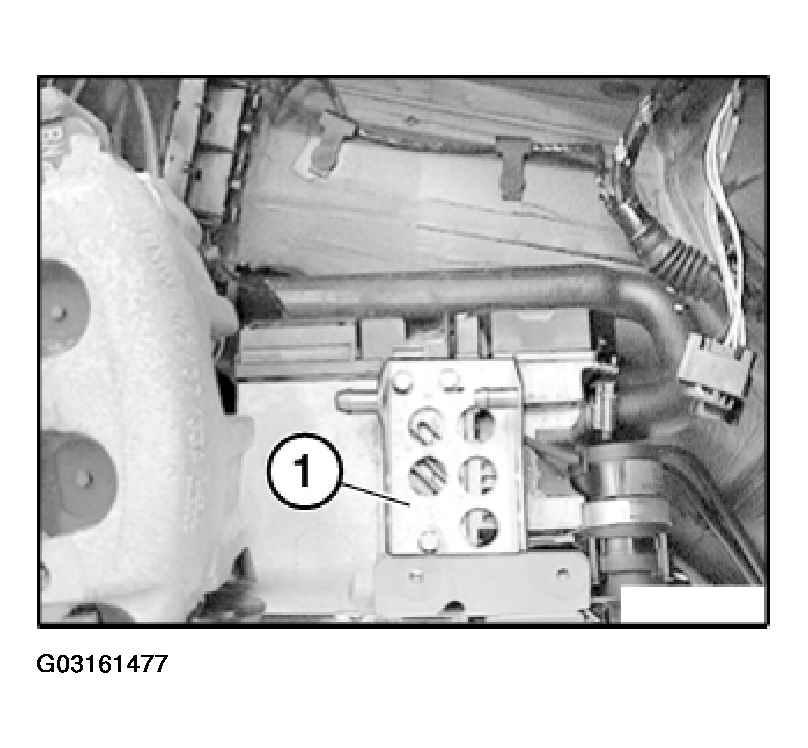

Fig 1: Removing Heater (Thermo Top Z/C)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carry out coding.
