64 12 015 Removing and installing complete heater (Thermo Top Z/C)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front left wheel.

Remove front left wheel arch lining.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

Disconnect plug connections (1).

Clamp water supply hoses, and disconnect supply, return and fuel hoses.

Loosen hose clamps (2).

Detach water hoses (3) and fuel hose (4).

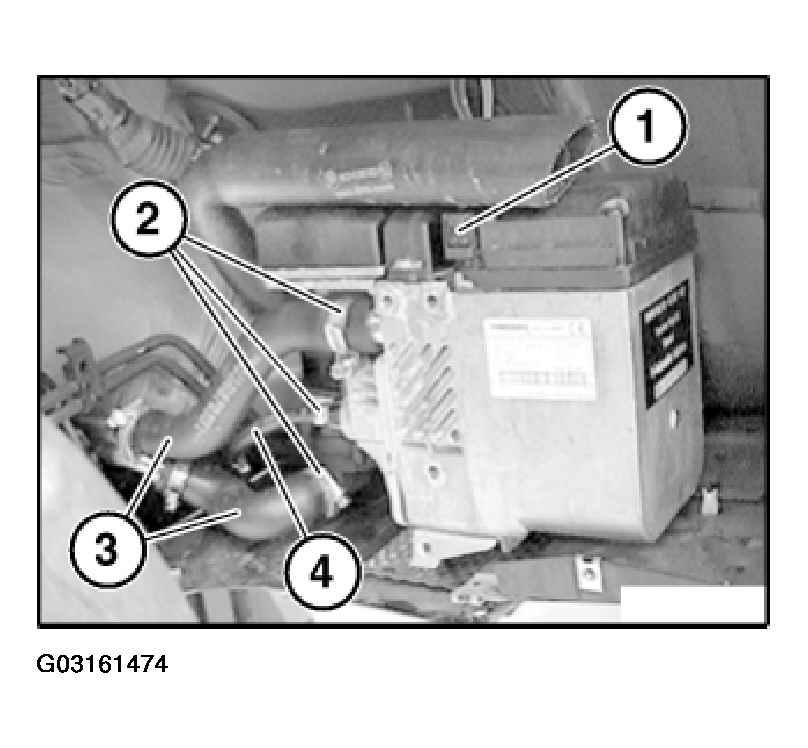

Fig 1: Detaching Water Hoses And Fuel Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws or expansion rivets and remove floor trim.

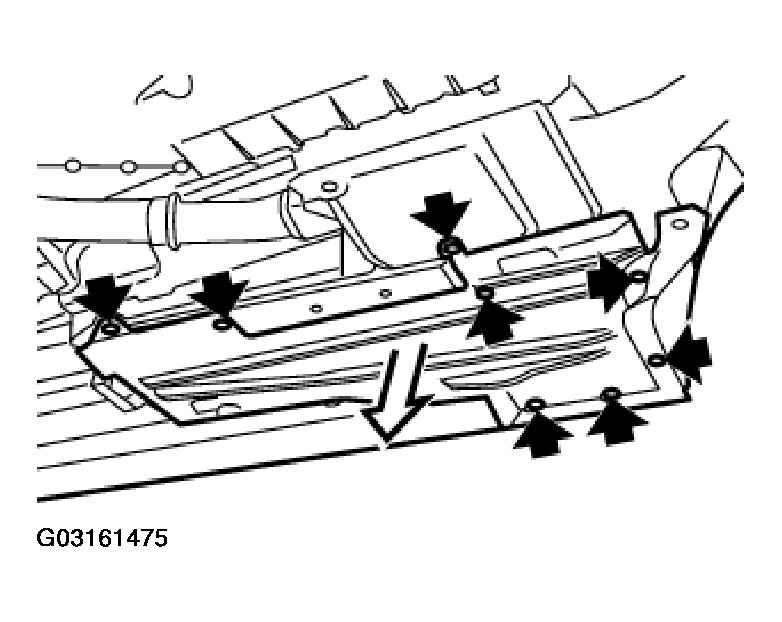

Fig 2: Removing Floor Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Release pipe clamp (2).

Separate exhaust pipe (3) from exhaust manifold (4).

Move heater (5) in direction of arrow and remove.

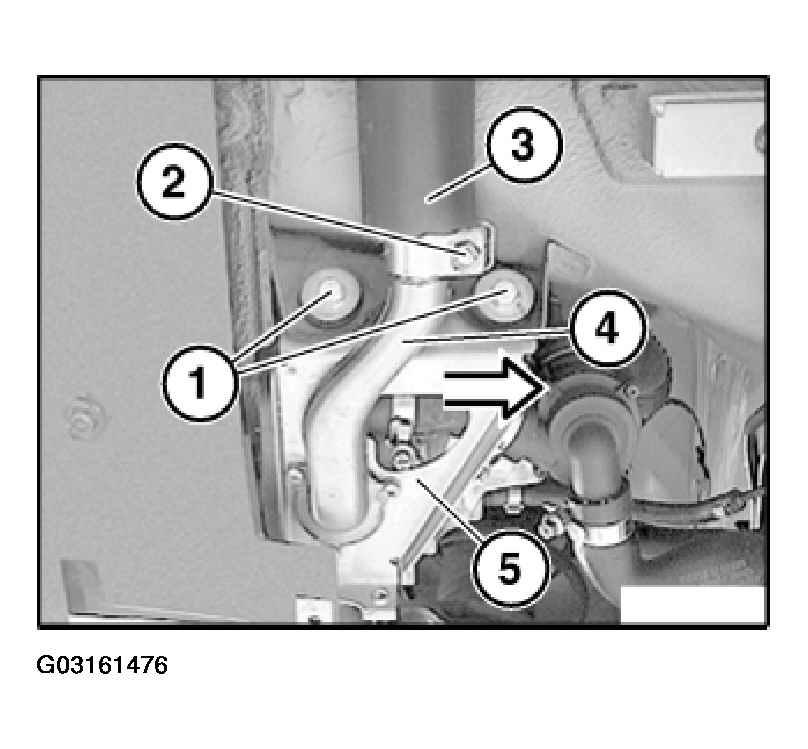

Fig 3: Removing Heater (Thermo Top Z/C)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace rubber grommets if necessary.

Top up coolant and vent cooling system, refer to 17 00 005 DRAINING OFF AND TOPPING UP COOLANT (M54) .
