64 12 005 Checking function of independant heating (Thermo Top S)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Carry out function check as described in DIS

Remove front left wheel.

Remove trim panel from front left wheelhouse.

Release screws (2) and turn over heater.

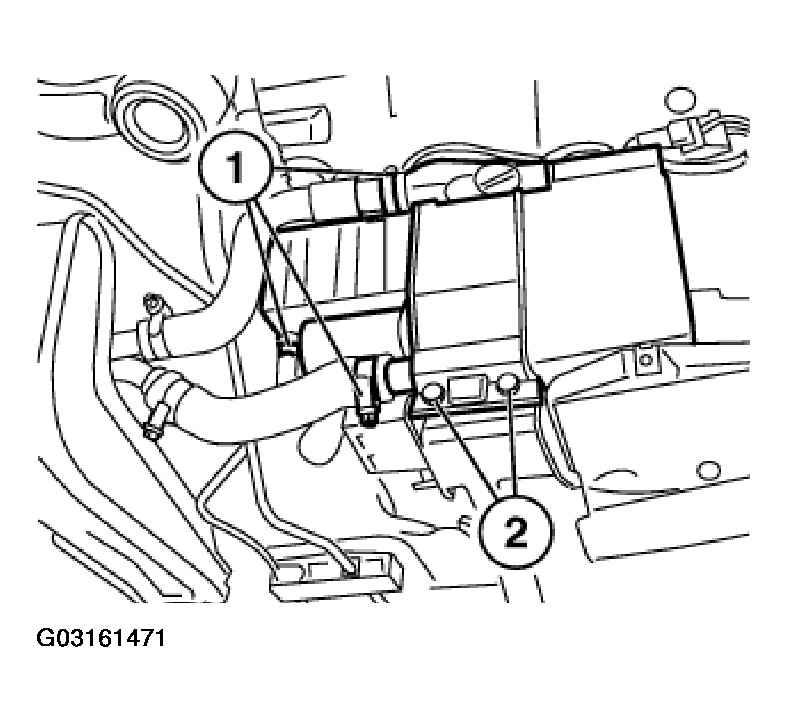

Fig 1: Releasing Screws And Turning Over Heater

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove central cover.

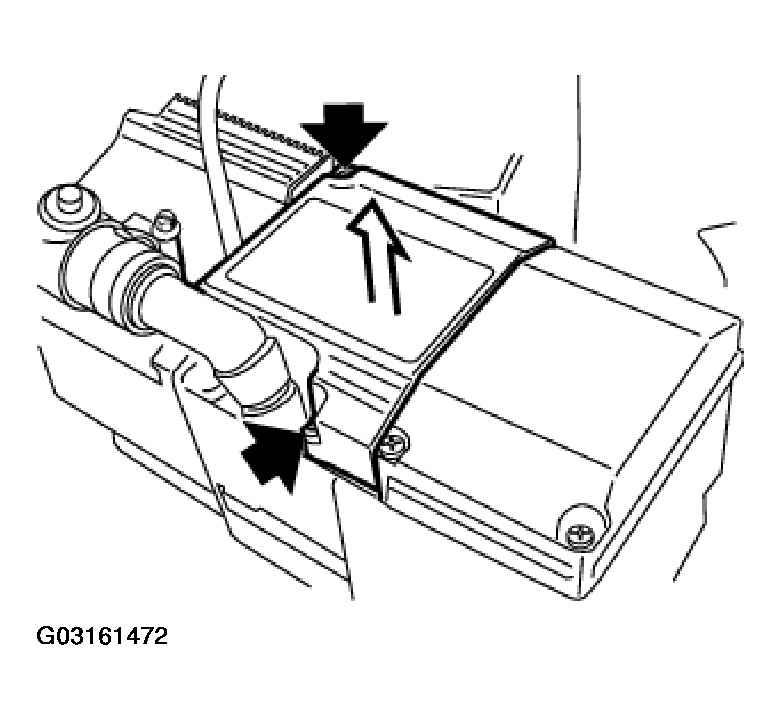

Fig 2: Removing Central Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Connect V adapter cable 64 1 230 between wiring harness and heater and connect to 26-pin peripherals box 61 1 459.

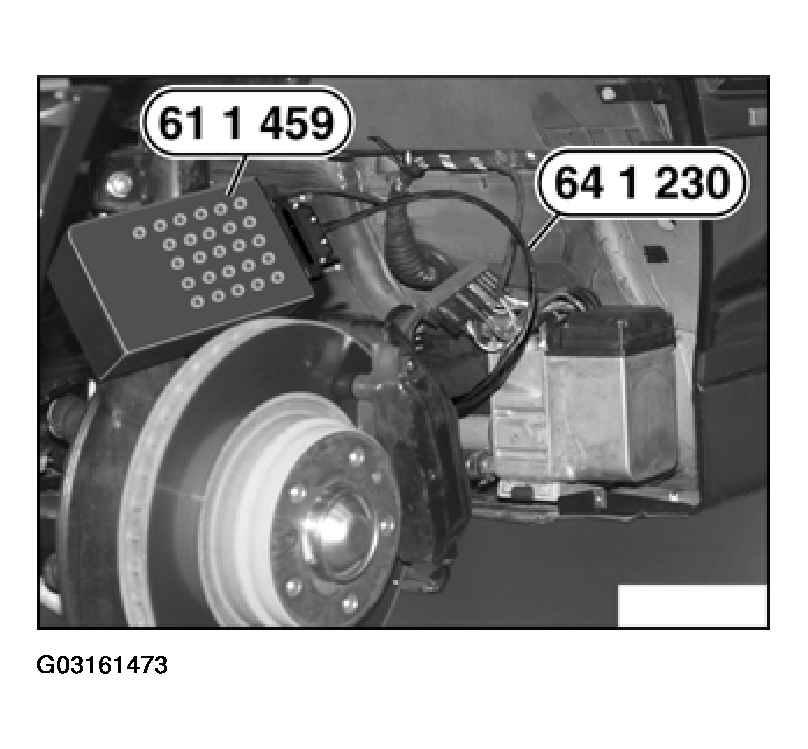

Fig 3: Connecting V Adapter Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Reinstall heater.

Observe Installation Notes:

Refer to 64 12 500 REMOVING AND INSTALLING/REPLACING COMPLETE HEATER (THERMO TOP S)
