64 51 592 Removing and installing/replacing evaporator (A/C control)

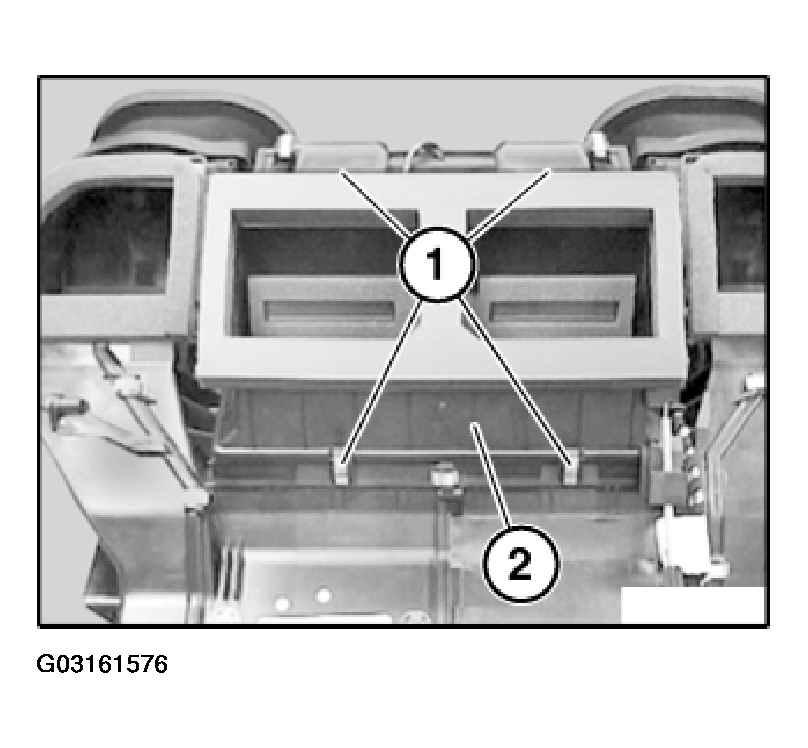

Unclip retainers (1).

Remove defroster nozzle, center (2).

Fig 1: Removing Defroster Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

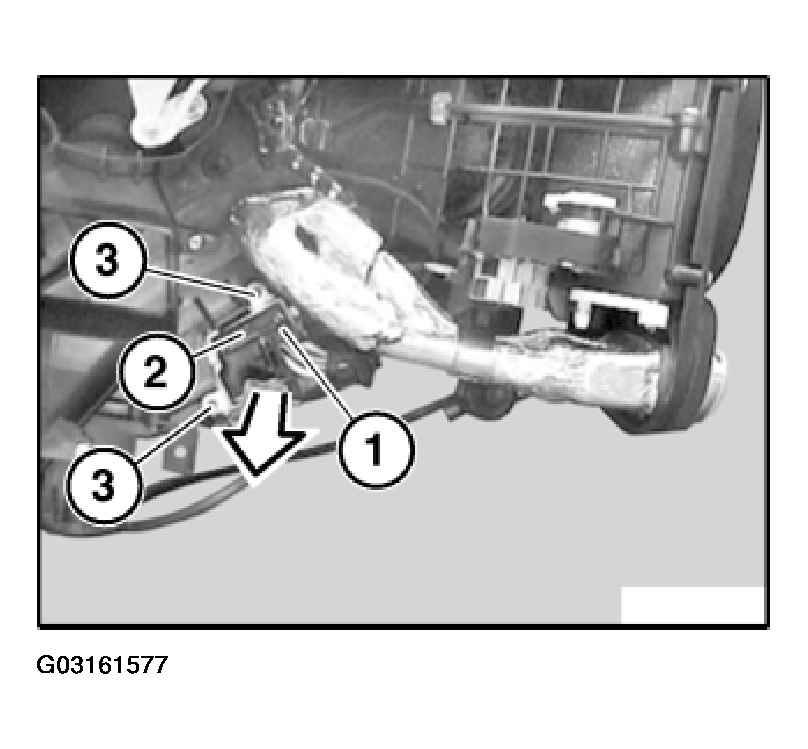

Unlock plug connection (1) and disconnect.

Unlock limit switch for blower (2) and pull in direction of arrow out of guide (3).

Fig 2: Removing Limit Switch For Blower

Courtesy of BMW OF NORTH AMERICA, INC.

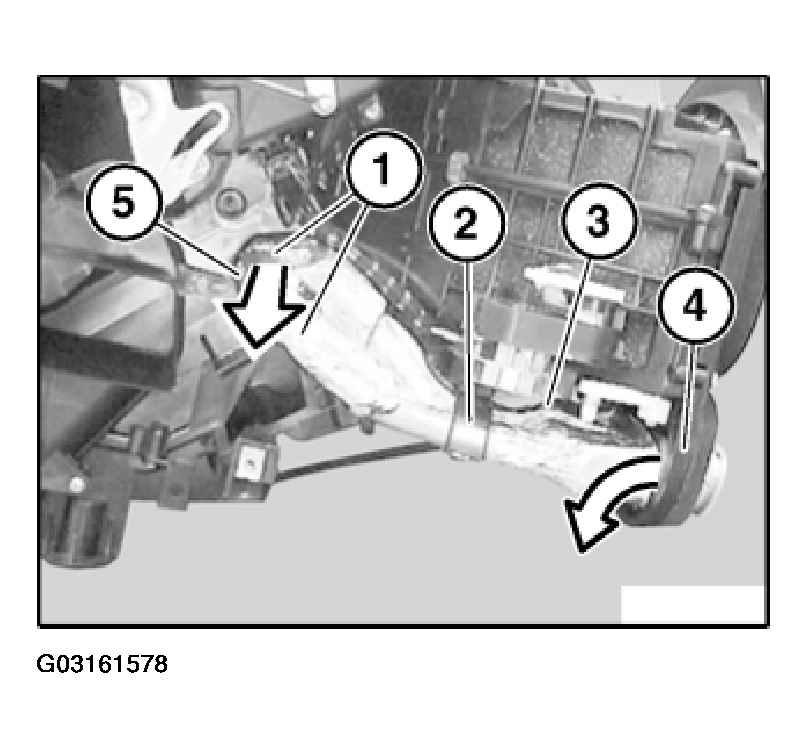

Release screws (1).

Unscrew holder (2).

Detach expansion valve (3) in direction of arrow from flange (5) and feed out of housing (4).

Fig 3: Detaching Expansion Valve From Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing rings.

Make sure flange (5) is correctly seated.

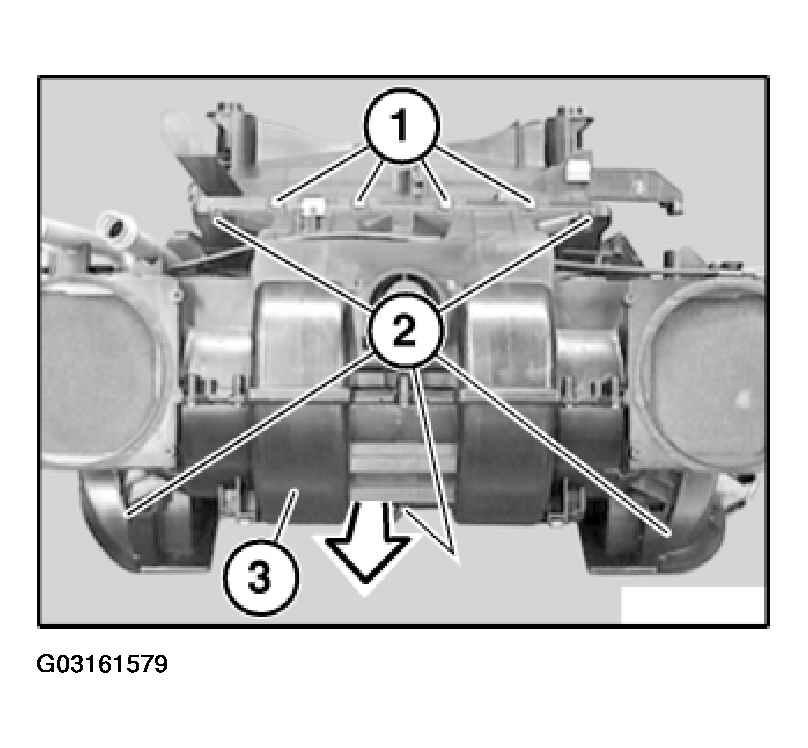

Unclip retainers (1).

Release screws (2) and remove blower housing completely (3) in direction of arrow.

Fig 4: Removing Blower Housing

Courtesy of BMW OF NORTH AMERICA, INC.

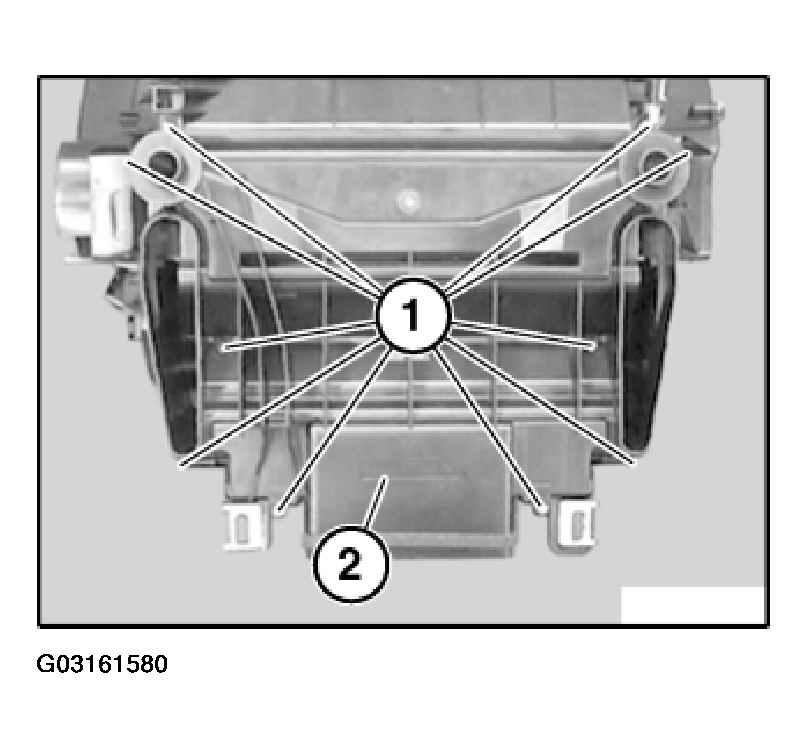

Release screws (1) and remove housing base (2).

Fig 5: Removing Housing Base

Courtesy of BMW OF NORTH AMERICA, INC.

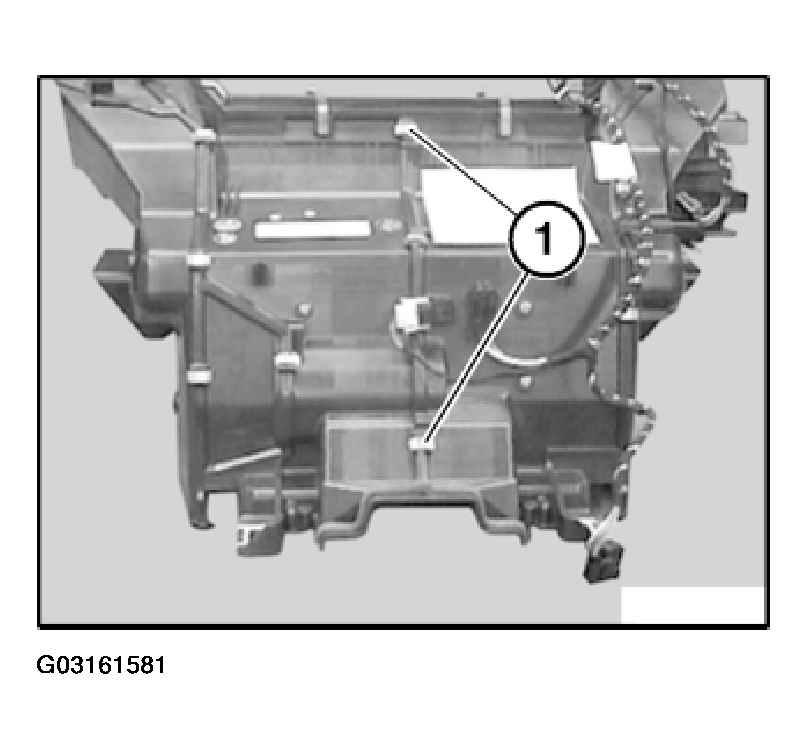

Unclip retainers (1).

Fig 6: Uncliping Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

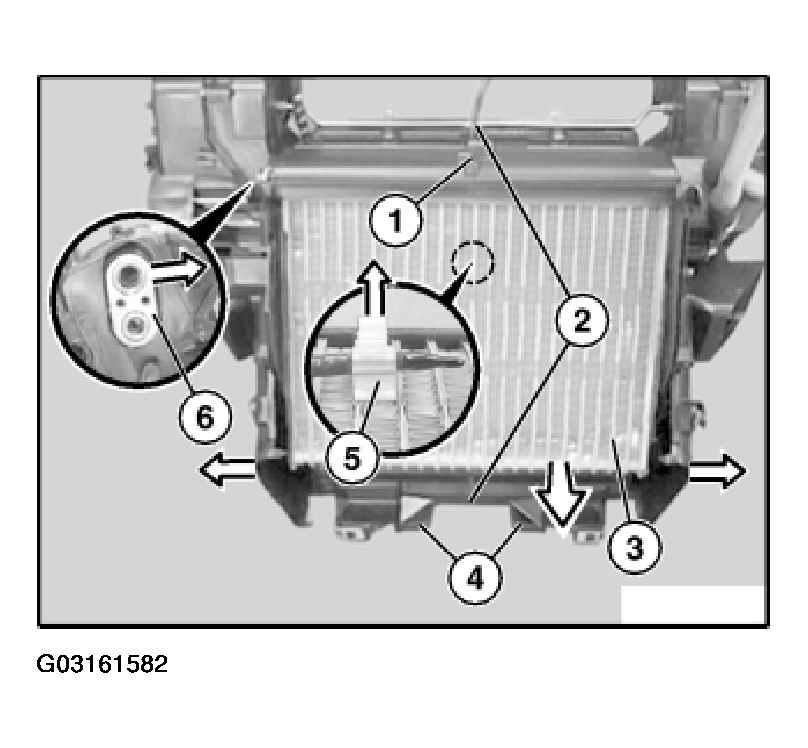

Release screw (1).

Unclip retainers (2).

Pull both housing sections (4) apart and press flange (6) in direction of arrow out of housing opening.

Unclip temperature sensor holder (5) in direction of arrow from evaporator (3).

Pull evaporator (3) in direction of arrow out of housing.

Fig 7: Removing Evaporator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure all moving parts are correctly seated (linkage, flaps).

Make sure both housing sections (4) are correctly seated.

Make sure temperature sensor cable outside housing is of sufficient length.
