64 51 591 Removing and installing/replacing evaporator

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Heater/air conditioner removed, refer to 64 11 205 REMOVING AND INSTALLING/REPLACING HEATER (AUTOMATIC AIR CONDITIONER) .

Unfasten screws and remove left and right footwell air outlets.

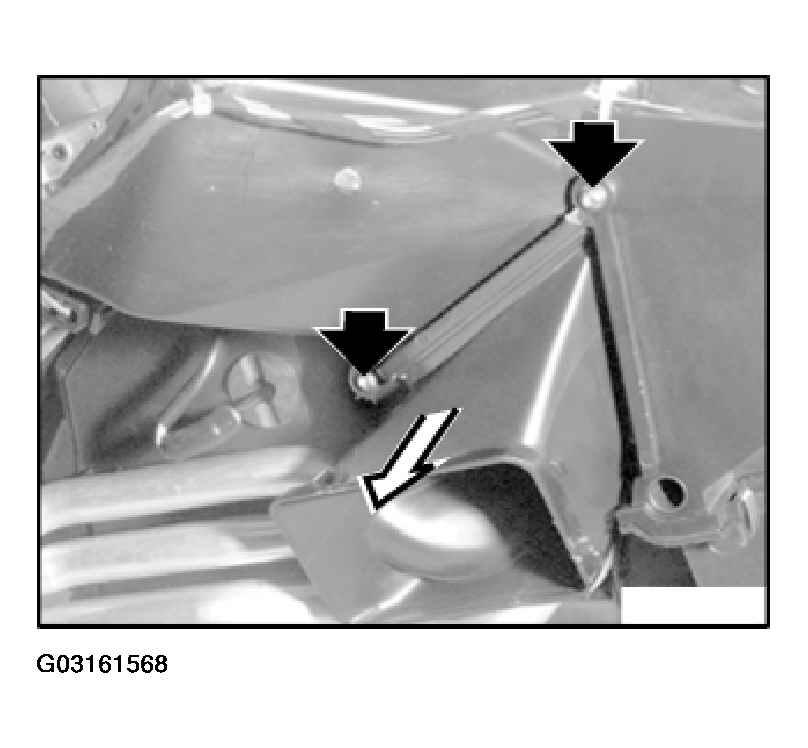

Fig 1: Removing Left And Right Footwell Air Outlets

G03161568

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove evaporator cover.

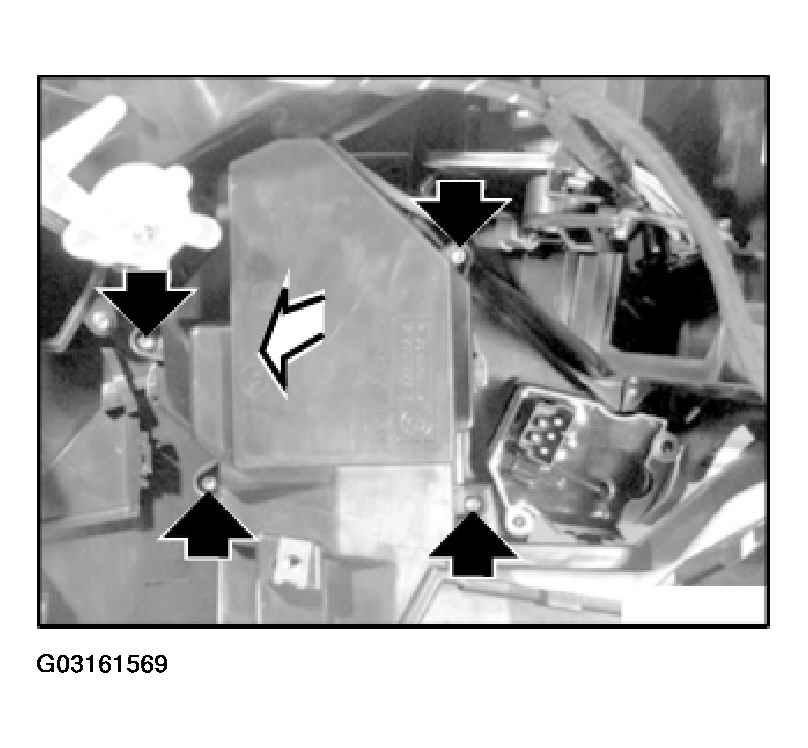

Fig 2: Removing Evaporator Cover

G03161569

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clips and remove cover for evaporator tubes.

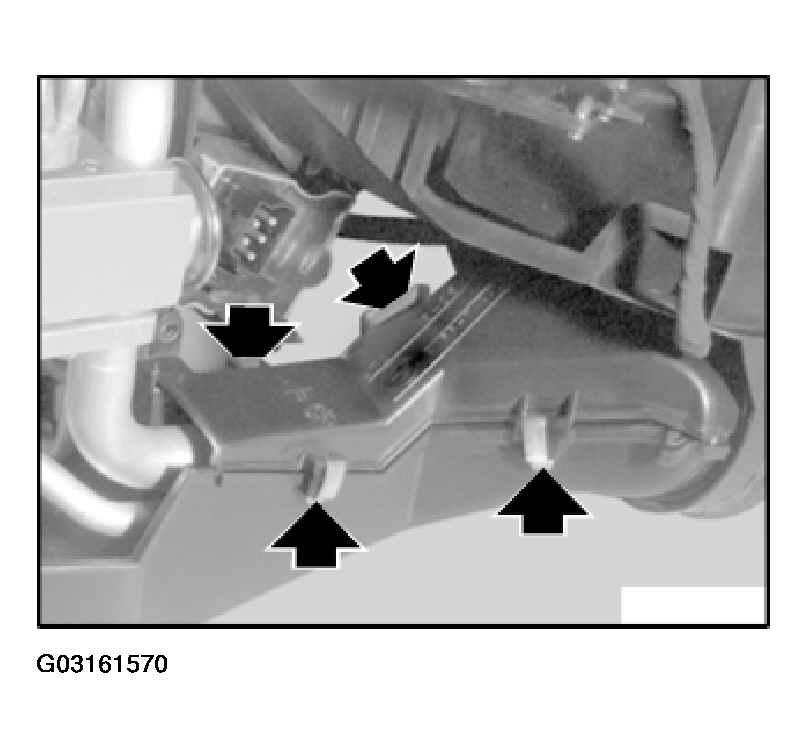

Fig 3: Removing Cover For Evaporator Tubes

G03161570

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clips and remove footwell vent outlet.

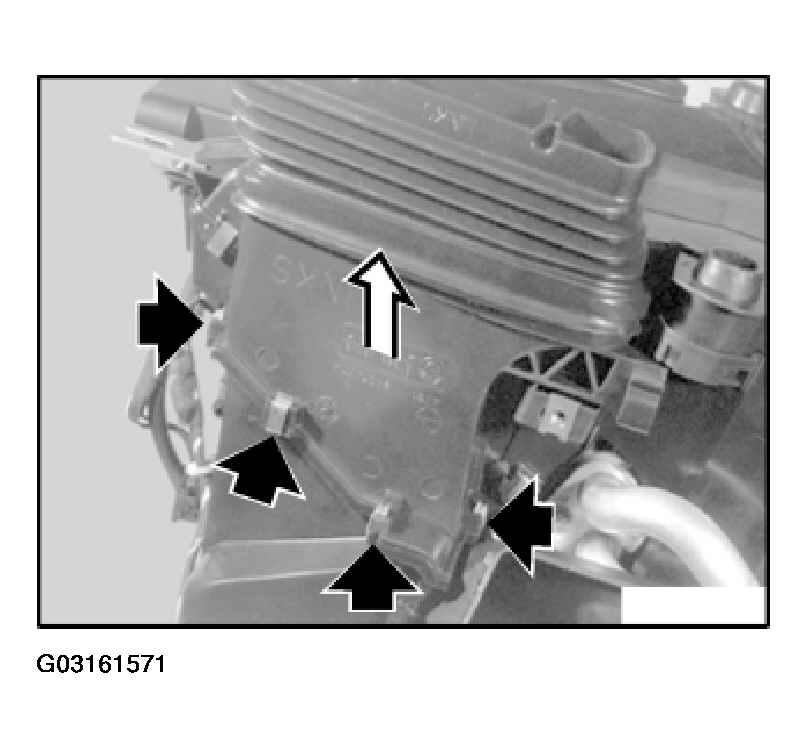

Fig 4: Removing Footwell Vent Outlet

G03161571

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove cover from heater core.

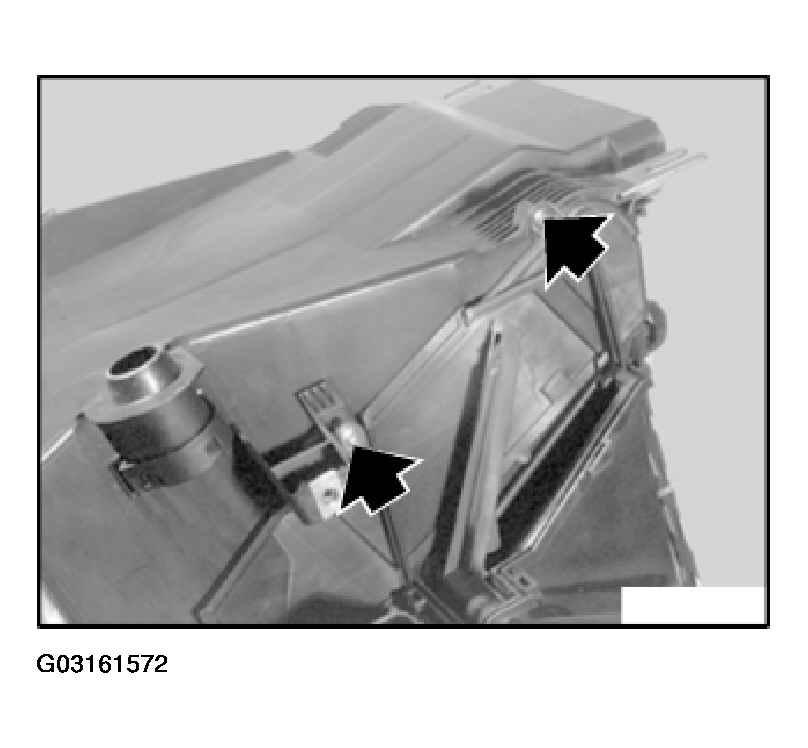

Fig 5: Removing Cover From Heater Core

G03161572

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove lower section of housing

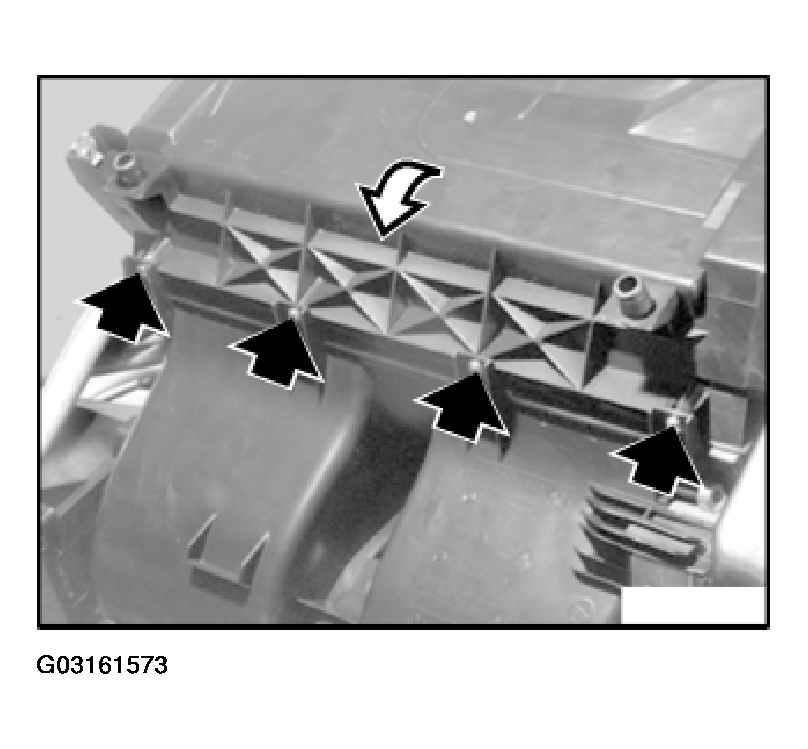

Fig 6: Removing Lower Section Of Housing

G03161573

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screw, pull tubes slightly apart and remove expansion valve.

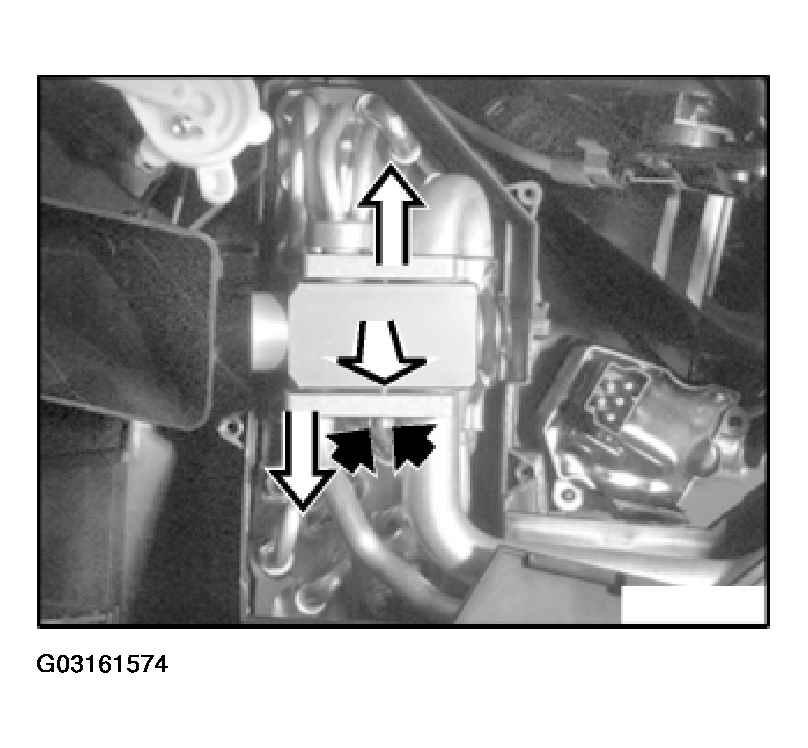

Fig 7: Removing Expansion Valve

G03161574

Courtesy of BMW OF NORTH AMERICA, INC.

Remove evaporator.

CAUTION: Do not bend cooling slats: clean with slat comb and straighten.

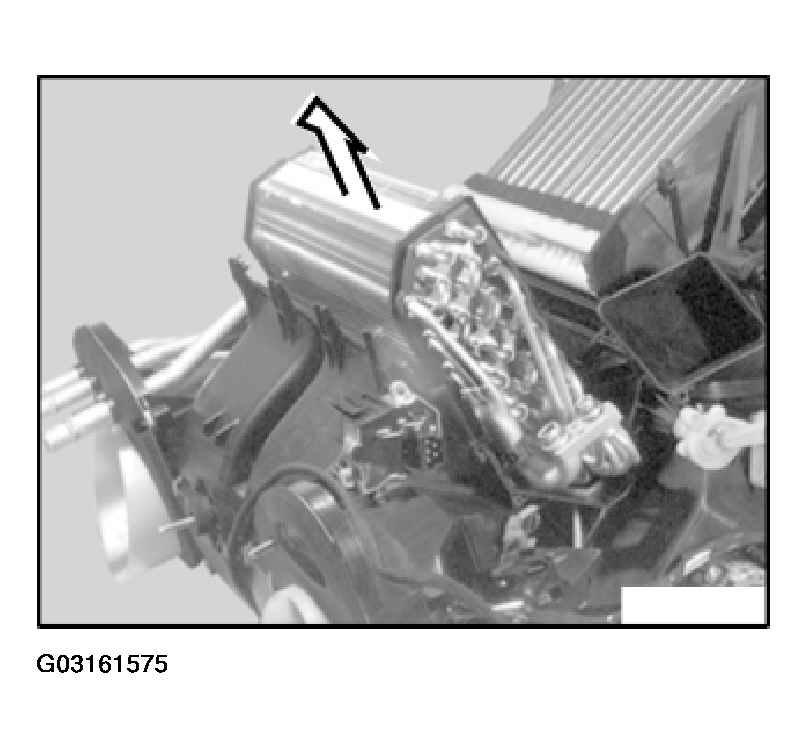

Fig 8: Removing Evaporator

G03161575

Courtesy of BMW OF NORTH AMERICA, INC.
