64 51 522 Removing and installing/replacing expansion valve (air-conditioning)

Air conditioner drained, refer to 64 50 009 DRAWING OFF, EVACUATING AND FILLING A/C SYSTEM (R 134A) .

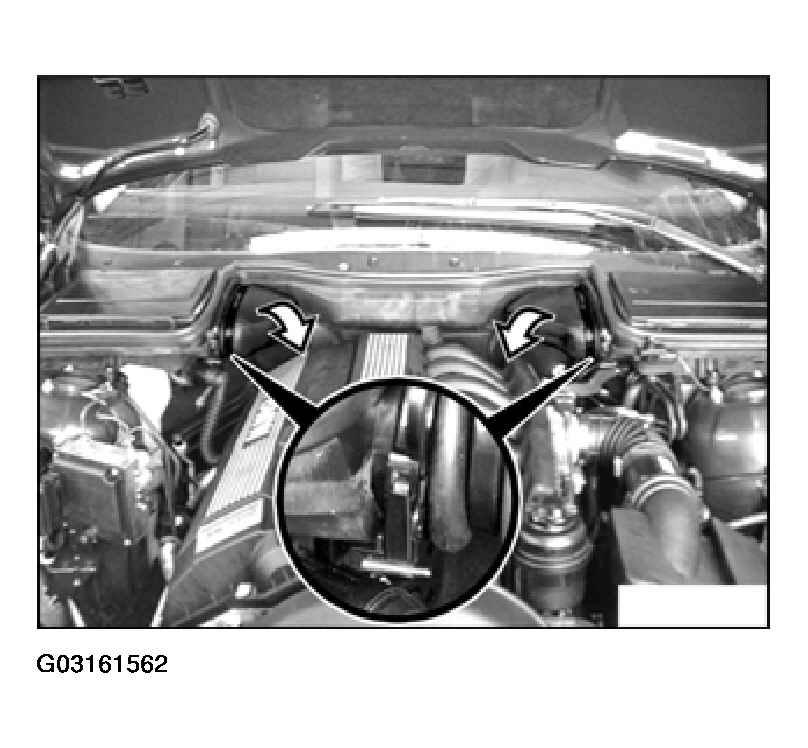

Unfasten clip from right air ducts, twist air duct and lift out.

Fig 1: Removing Right Air Ducts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit air duct to end wall, twist and then insert in bottom of microfilter.

Fig 2: Installing Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

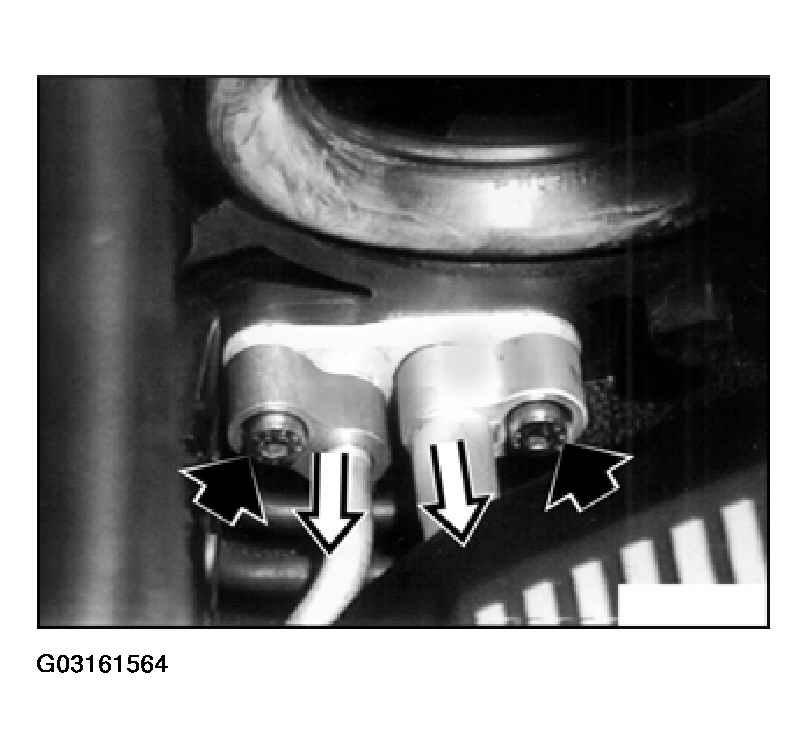

Unfasten screws and remove pressure and suction pipe.

Fig 3: Removing Pressure And Suction Pipes

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:  Replace O-rings.

Subsequent tasks are described in 64 11 200 REMOVING AND INSTALLING/REPLACING HEATER (HEATER) .

Remove glove box, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

Remove trim sections from right oddments tray,

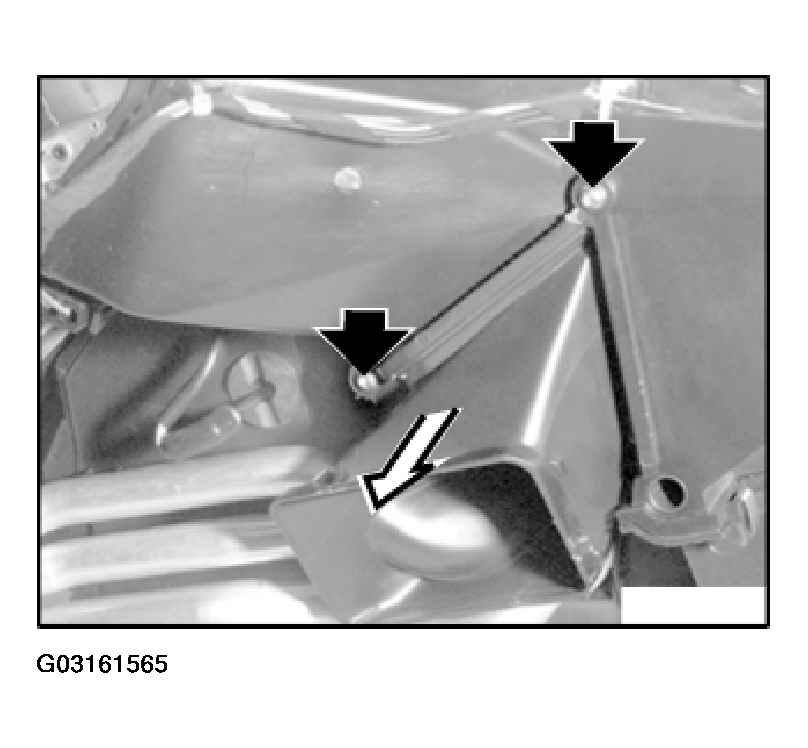

Unfasten screws and pull out air duct for footwell ventilation.

Fig 4: Removing Air Duct For Footwell Ventilation

Courtesy of BMW OF NORTH AMERICA, INC.

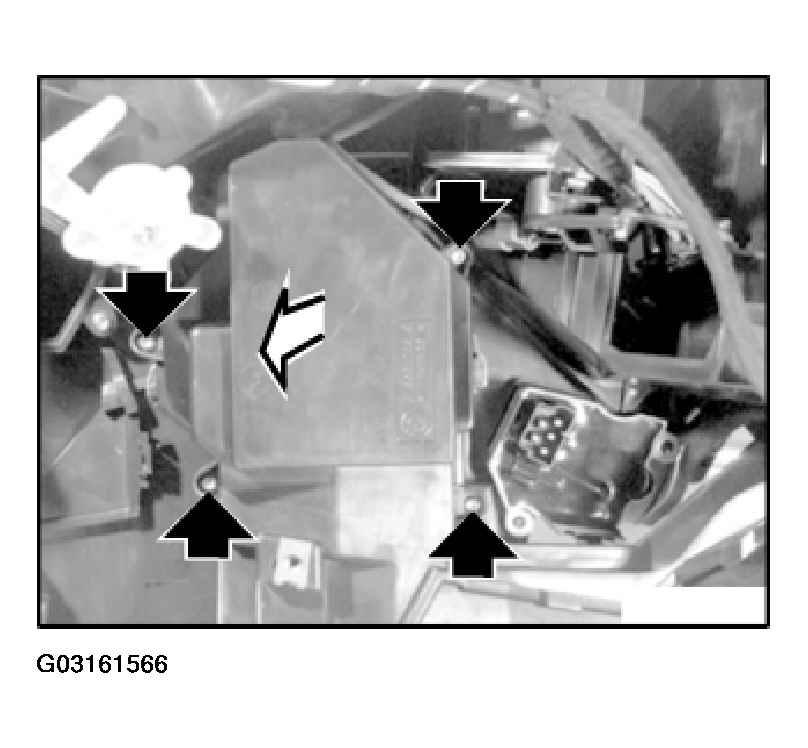

Unfasten screws and remove cover from expansion valve.

Fig 5: Removing Cover From Expansion Valve

Courtesy of BMW OF NORTH AMERICA, INC.

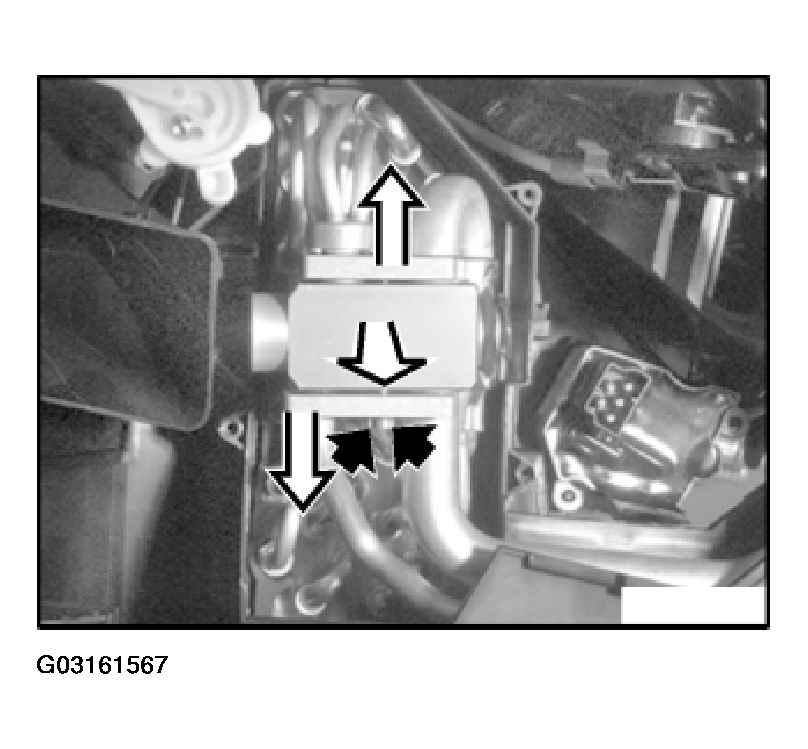

Unfasten screws, pull lines slightly apart and remove expansion valve.

Fig 6: Removing Expansion Valve

Courtesy of BMW OF NORTH AMERICA, INC.
