63 21 180 Removing and installing/replacing left or right rear light (saloon/sedan)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (1).

Release nuts (2) and remove outer rear light.

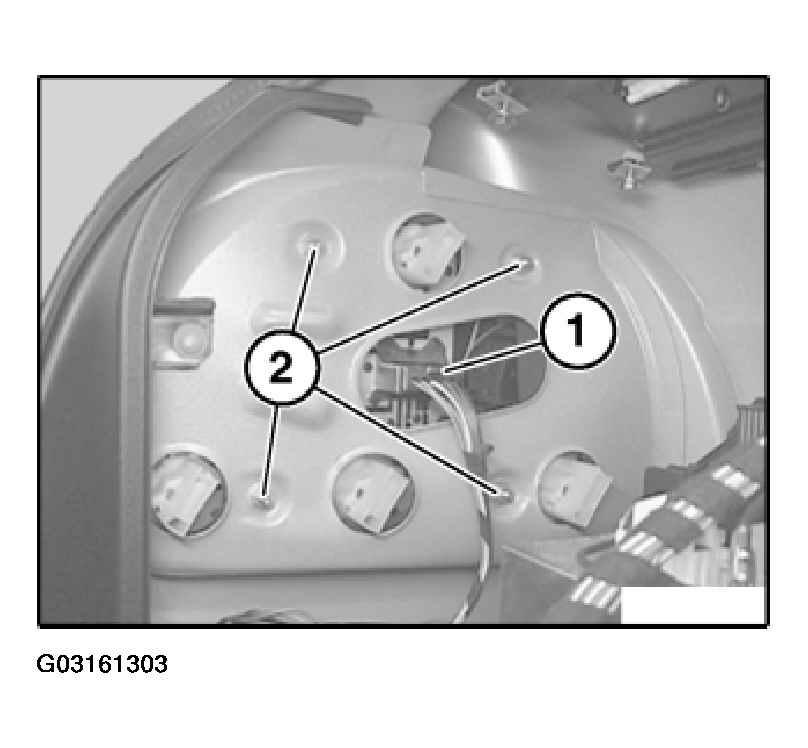

Fig 1: Removing Outer Rear Light (Sedan)

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

If necessary, convert or replace bulbs, refer to 63 99 315 REPLACING BULB(S) FOR LEFT OR RIGHT REAR LIGHT (SALOON/SEDAN) .

Installation:

Make sure rear light seal is correctly seated, replace if necessary.

Make sure there is a uniform gap all round between rear light and body side panel, gap approx. 2 mm.
