63 99 315 Replacing bulb(s) for left or right rear light (saloon/sedan)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Remove socket housing for rear light.

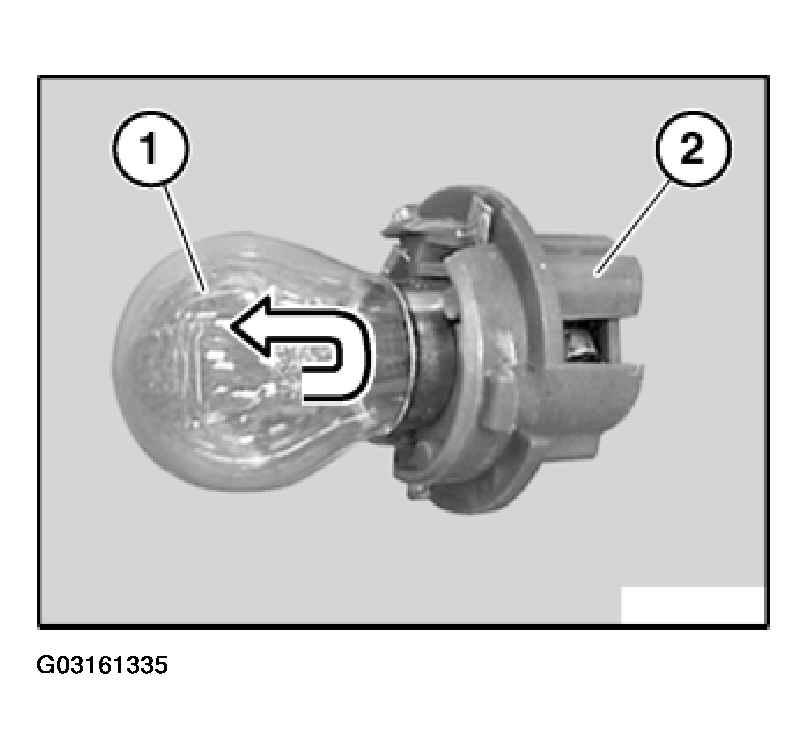

Remove faulty bulb (1) in direction of arrow from socket housing (2).

Fig 1: Removing Faulty Bulb From Socket Housing (From 09/2000)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note type of bulb, refer to LIGHTS - TECHNICAL DATA .
