63 21 055 Replacing a socket housing for rear light on left or right (saloon/sedan)

Open luggage compartment panel.

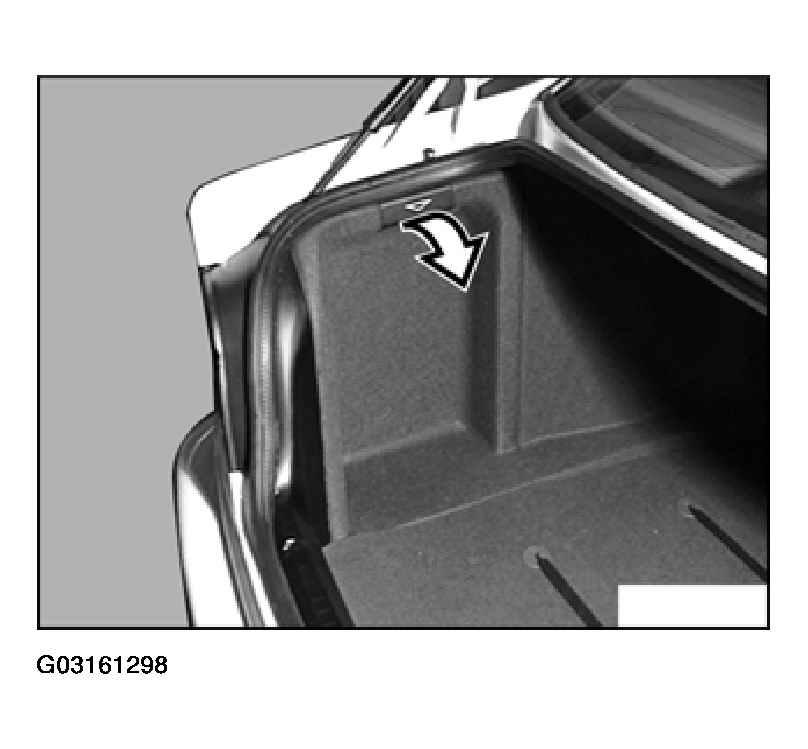

Fig 1: Opening Luggage Compartment Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Turn socket housing for rear light to be replaced counterclockwise and remove.

Convert bulb, replace if necessary, refer to 63 99 315 REPLACING BULB(S) FOR LEFT OR RIGHT REAR LIGHT (SALOON/SEDAN) .

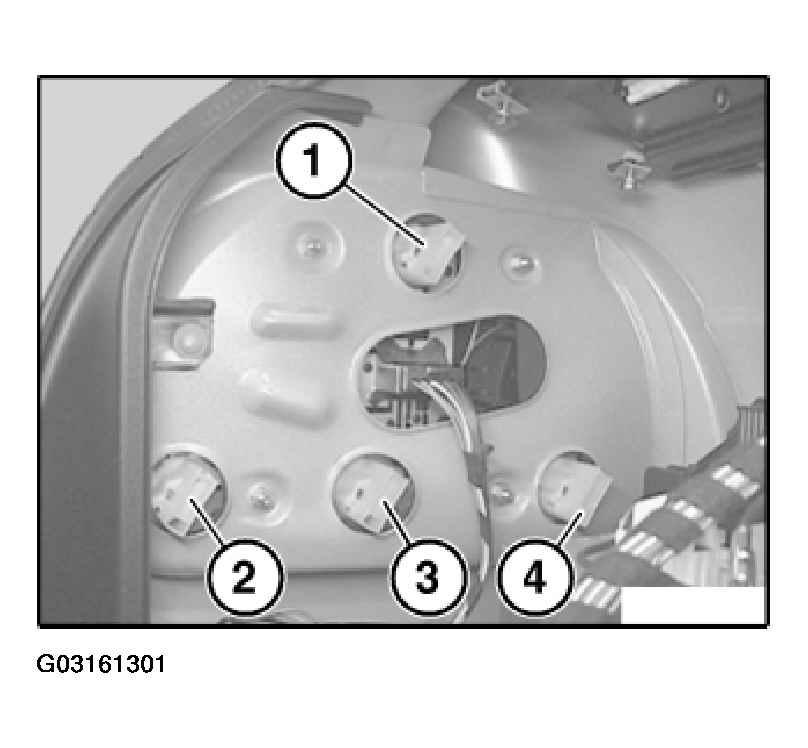

Fig 2: Replacing Rear Light Socket (Sedan)
Courtesy of BMW OF NORTH AMERICA, INC.
1. Socket housing for turn signal lamp
2. Socket housing for fog warning lamp
3. Socket housing for reversing light
4. Socket housing for brake light
