63 12 411 Replacing headlamp housing with insert on left (up to 09/2000)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove lens/reflector, refer to 63 12 034 REMOVING AND INSTALLING/REPLACING LENS/REFLECTOR FOR LEFT HEADLIGHT (UP TO 09/2000) .

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Remove bulb holder with side-marker lamp bulb.

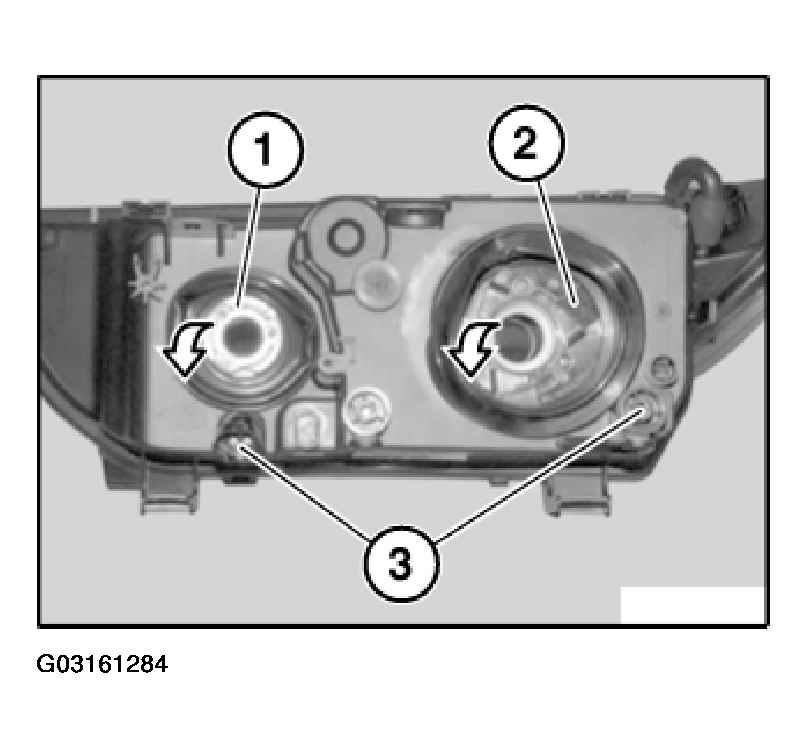

Detach high beam cover cap (1) and low beam cover (2) in direction of arrow and remove bulbs underneath.

Installation:

Make sure high beam cover cap (1) and low beam cover (2) are correctly seated.

Fig 1: Replacing Headlamp Housing With Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust headlights, refer to 63 10 004 ADJUSTING HEADLIGHTS .
