63 17 030 Removing and installing/replacing left or right fog lamp insert (M aerodynamics package): Procedure

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out trim (1) with special tool 00 9 322 and remove.

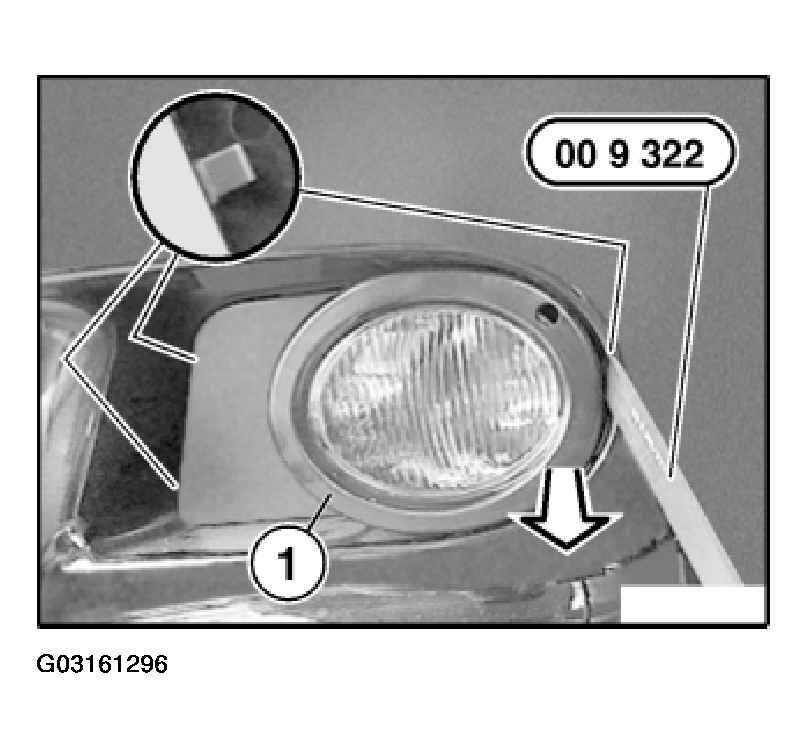

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure trim (1) engages correctly.

Release screw (1).

Feed out fog lamp insert (2) and remove.

Disconnect plug connection behind.

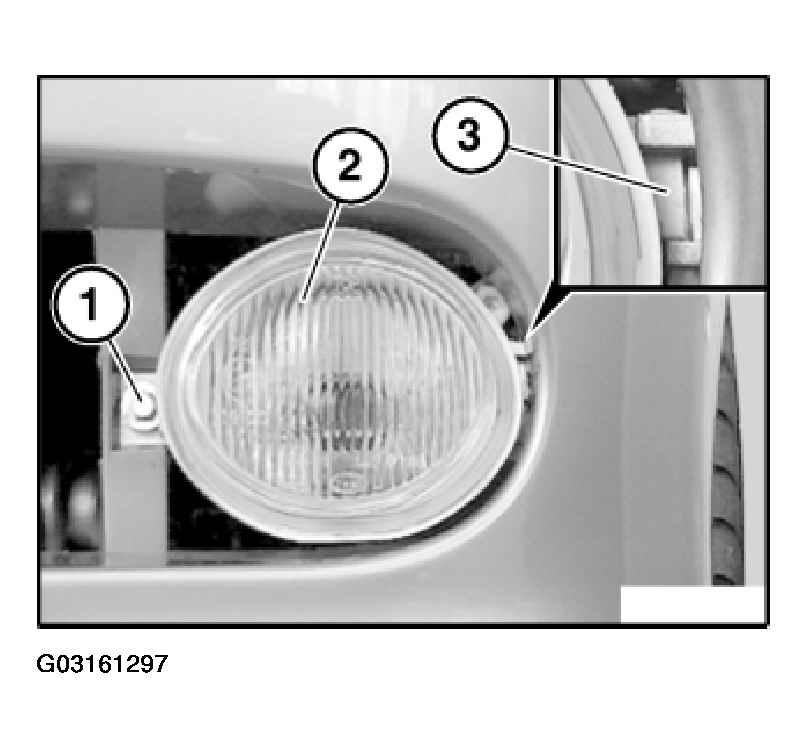

Fig 2: Removing Fog Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure lugs (3) are precisely seated.

Make sure ventilation grommet of fog lamp insert is laid without kinks and sufficiently firmly seated.

Adjust front fog lamps, refer to 63 10 014 ADJUSTING FOG LAMPS .
