63 25 000 Removing and installing/replacing auxiliary brake light

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Removing trim for oddments tray,

refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR ODDMENTS TRAY (BACK SHELF) .

Remove nuts.

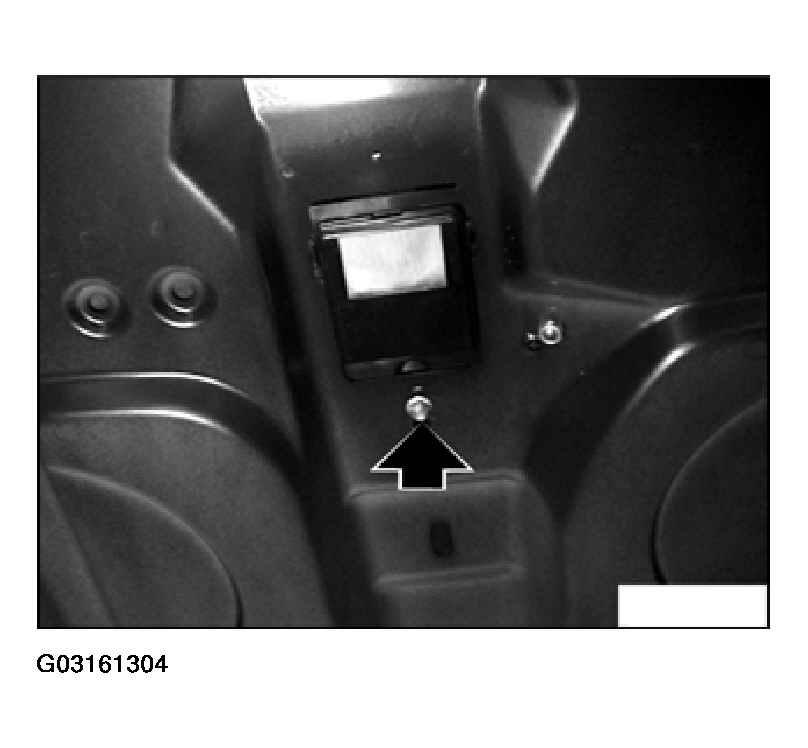

Fig 1: Removing Cover Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove connector, pull back brake light and lift out.

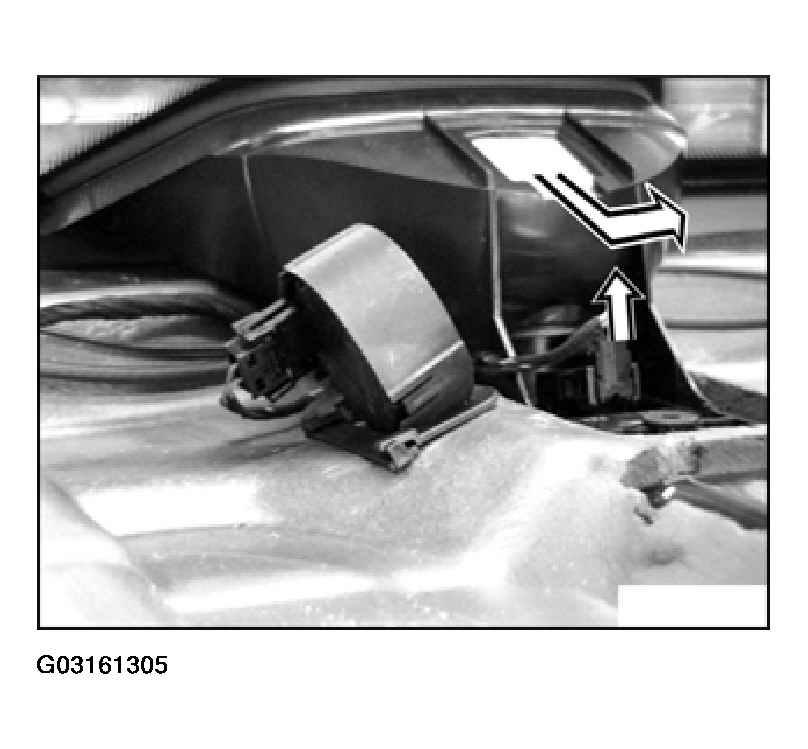

Fig 2: Lifting Out Auxiliary Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert lugs (2) in recess (1), slide brake light up to rear window and tighten down.

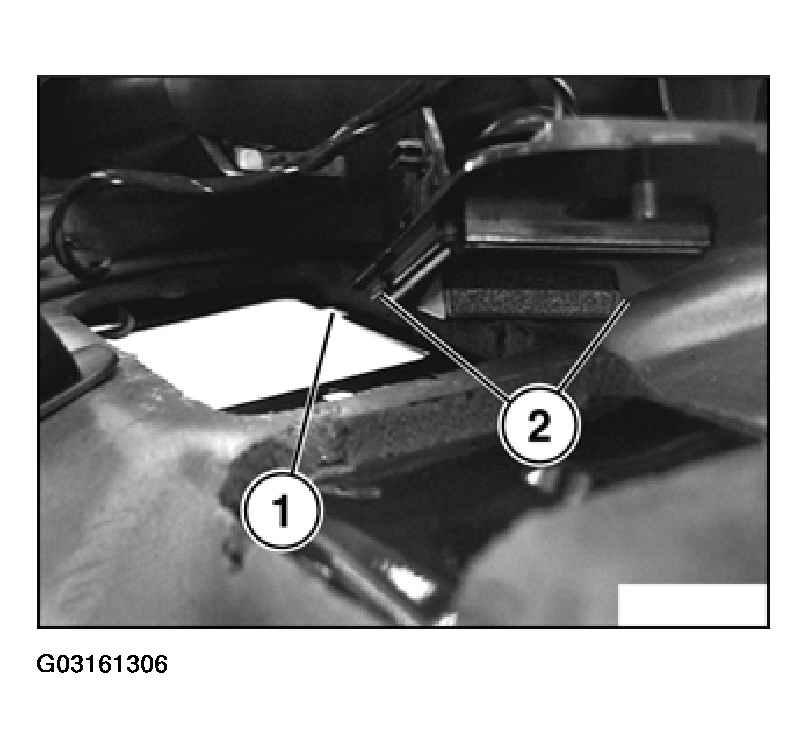

Fig 3: Installing Auxiliary Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.
