61 31 028 Removing and installing/replacing light switch

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Removing frame for instrument carrier, refer to 62 21 000 REMOVING AND INSTALLING COMPLETE INSTRUMENT CARRIER .

Remove button from light switch.

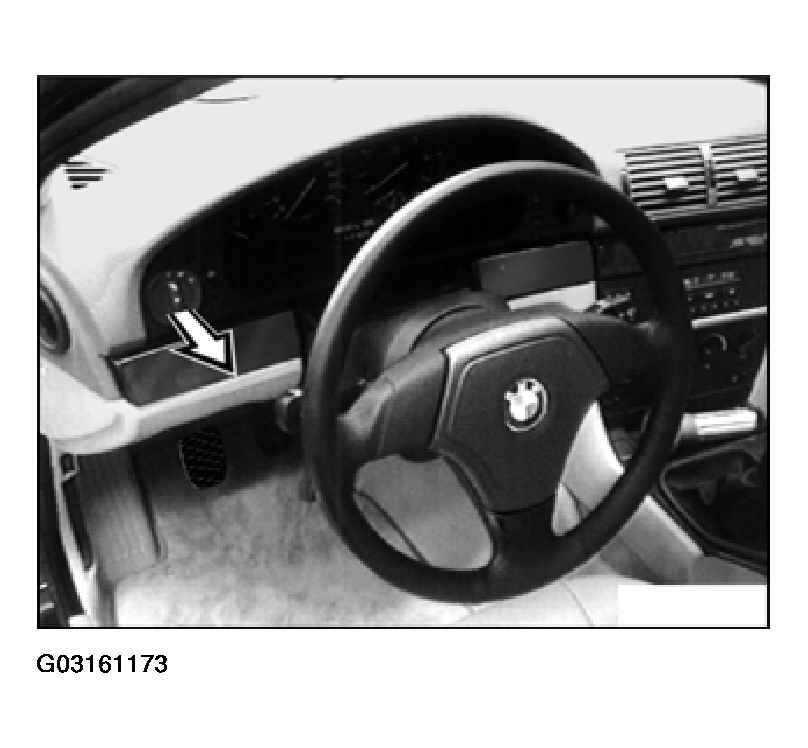

Fig 1: Removing Button From Light Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Remove nuts.

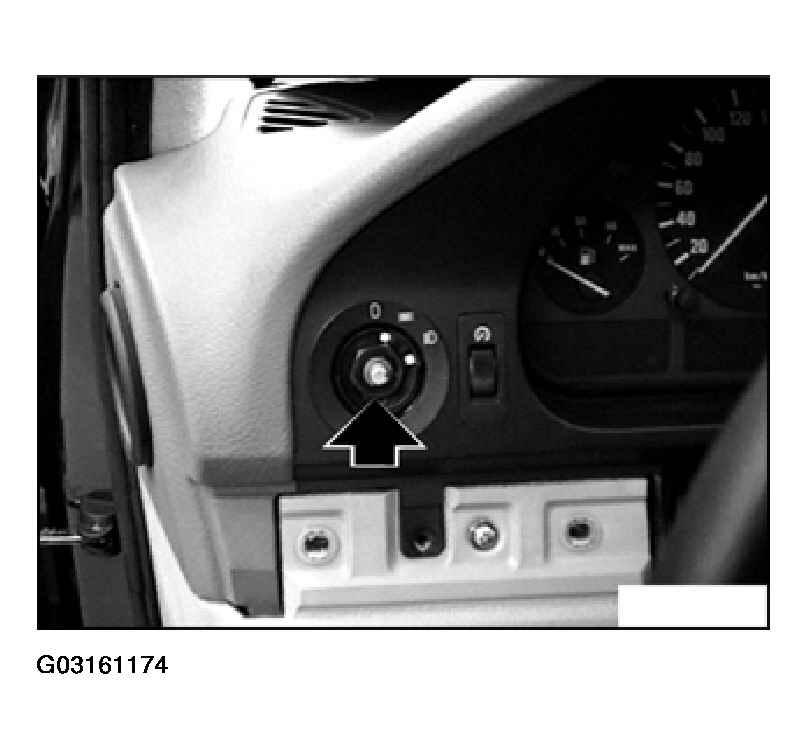

Fig 2: Removing Light Switch Retaining Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove connector and press light switch backwards to remove.

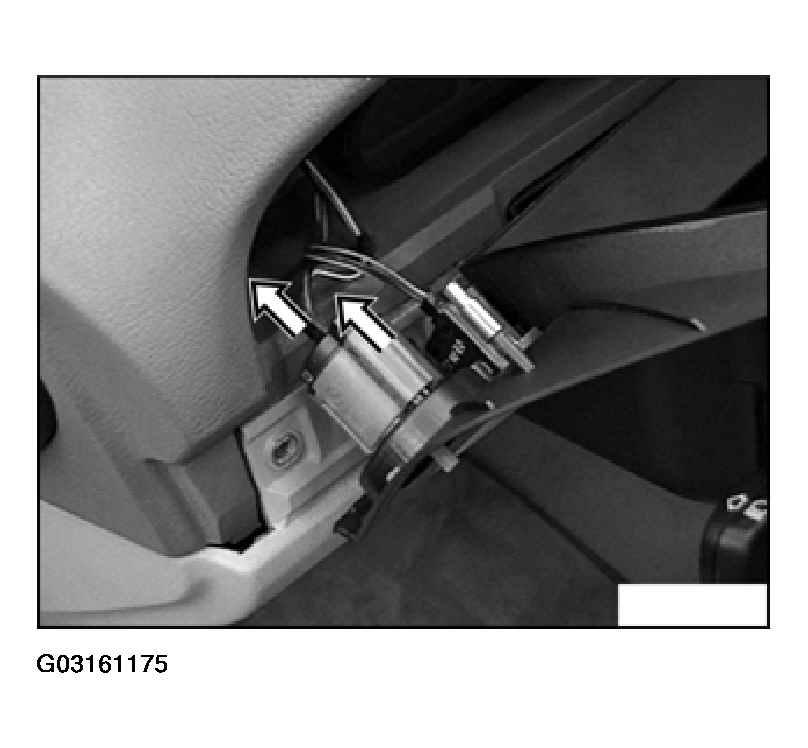

Fig 3: Removing Light Switch

Courtesy of BMW OF NORTH AMERICA, INC.
