54 12 210 Removing and installing complete slide/tilt sunroof (frame)

Remove drive unit with transmission for slide/tilt sunroof actuation,

refer to 67 61 510 REMOVING AND INSTALLING OR REPLACING DRIVE WITH GEAR FOR ACTUATING SLIDE/TILT SUNROOF .

Remove headliner,

refer to 51 44 011 REMOVING AND INSTALLING/REPLACING HEADLINER (WITH SLIDE/TILT SUNROOF) .

Remove water drain hoses (1) at front/rear.

Unfasten Omega clips (2).

Fig 1: Removing Water Drain Hoses At Front/Rear

Courtesy of BMW OF NORTH AMERICA, INC.

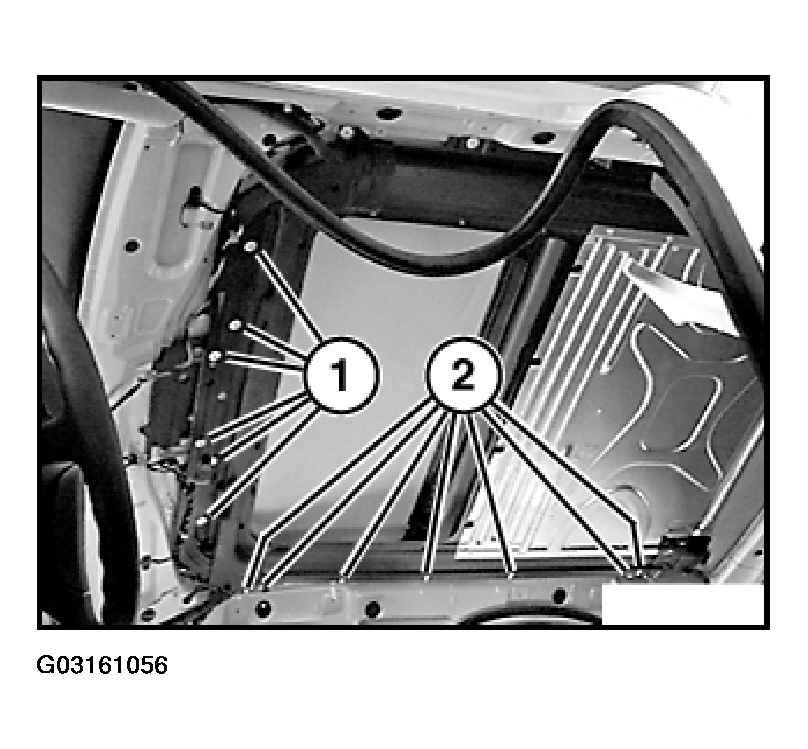

Unfasten screws (1) at front and (2) at left/right.

Fig 2: Removing Slide/Tilt Roof Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

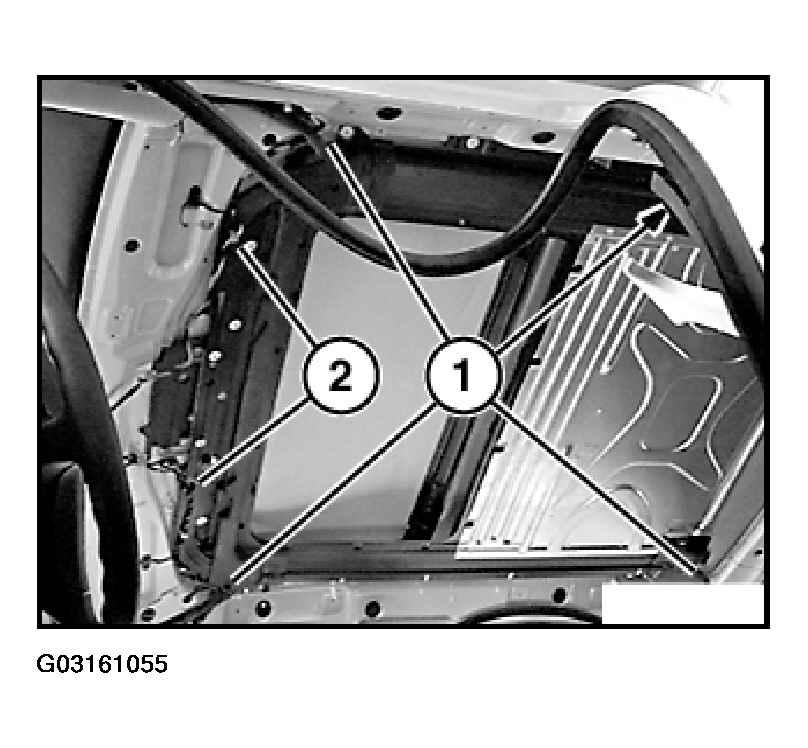

Unhook left/right clip and lower slide/tilt sunroof frame slightly.

Installation:

Fold up back of frame until rear clips can be unfastened.

Fig 3: Lowering Slide/Tilt Sunroof Frame

Courtesy of BMW OF NORTH AMERICA, INC.

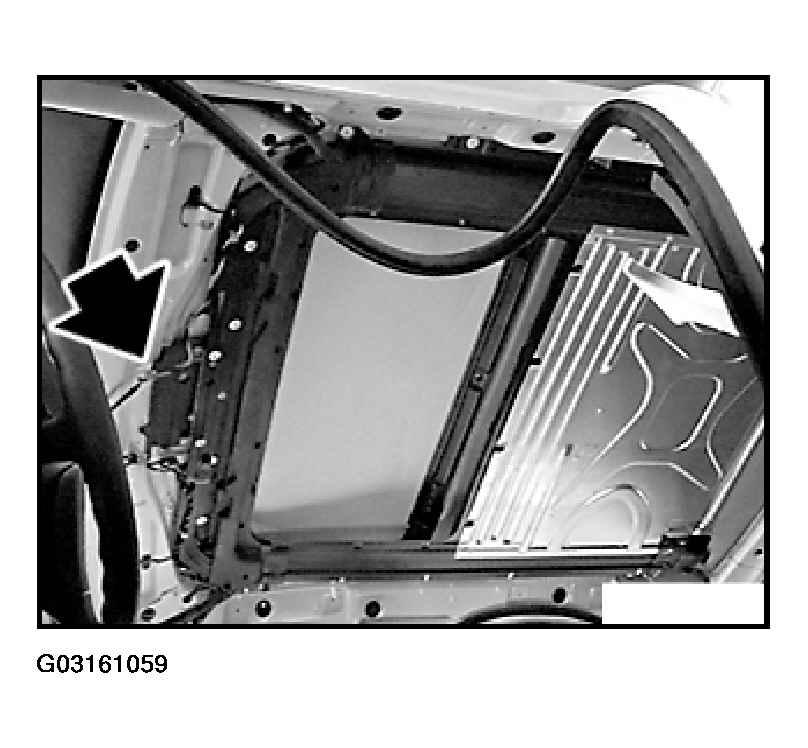

Slide slide/tilt sunroof frame backwards and lift out through right rear door.

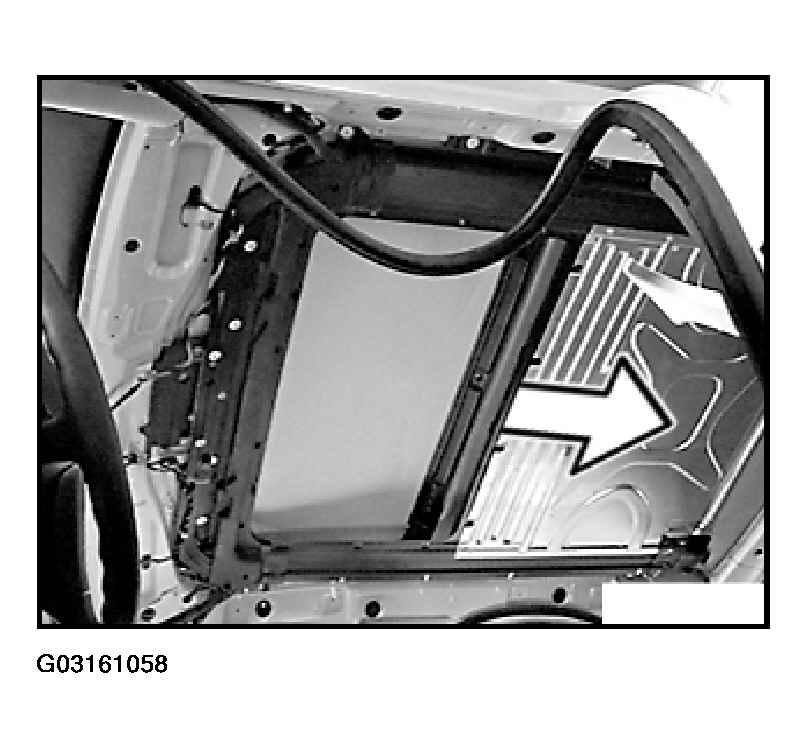

Fig 4: Removing Slide/Tilt Sunroof Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

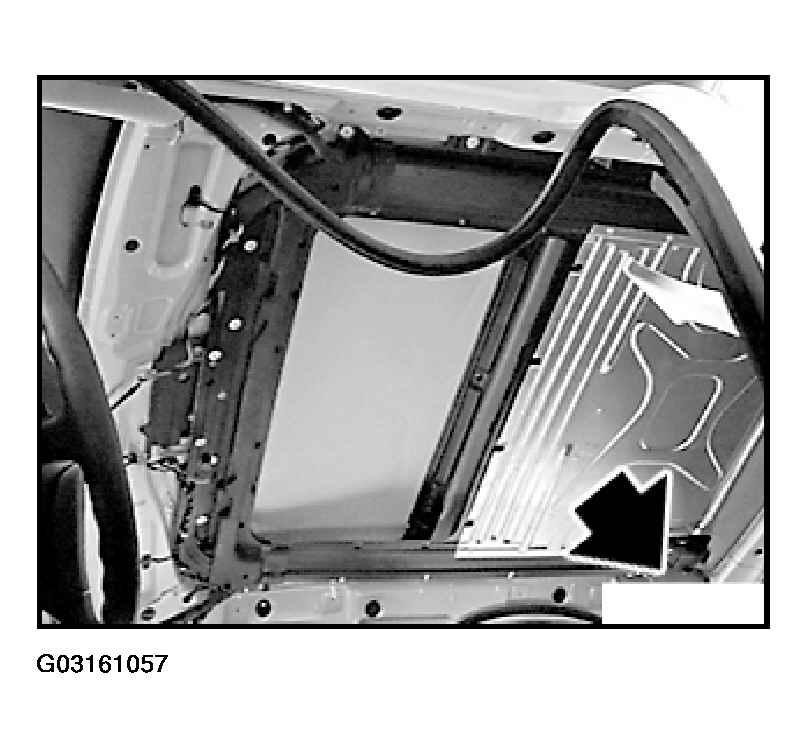

Insert slide/tilt sunroof frame in sheet metal slot at front.

Fig 5: Installing Slide/Tilt Sunroof Frame
