54 12 126 Removing and installing/replacing headliner mechanism for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If necessary, apply light coat of Renax GL1 (Fuchs) grease to guide duct.

Removing and installing headliner for glass slide/tilt sunroof cover,

refer to 54 12 136 REMOVING AND INSTALLING/REPLACING HEADLINER FOR GLASS SLIDE/TILT SUNROOF COVER .

NOTE: Always replace headliner mechanism for glass slide/tilt sunroof in pairs.

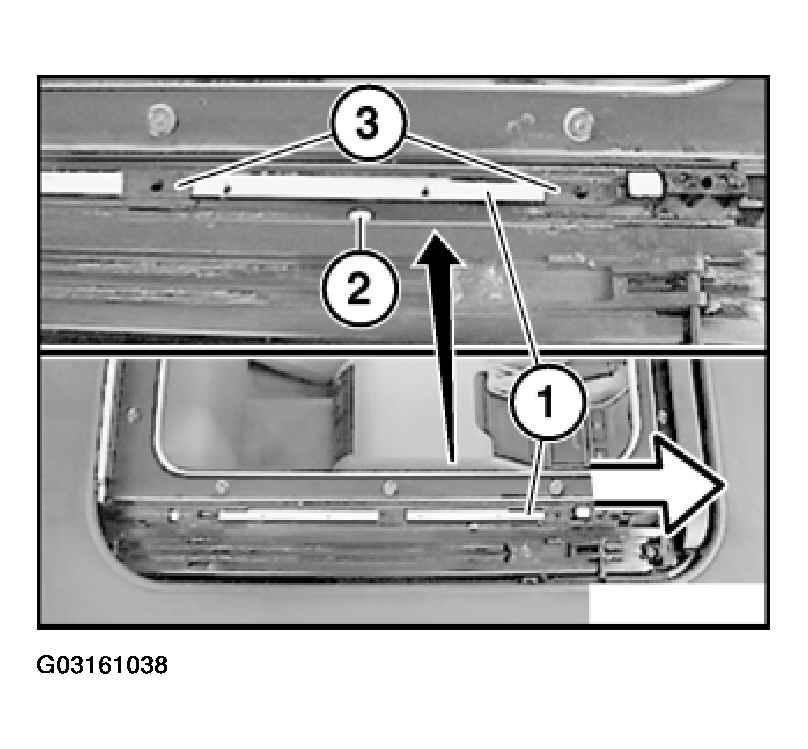

Slide headliner mechanism (1) fully forwards.

Move mechanism back until nipple (2) is located to right of plastic slides (3).

Fig 1: Positioning Headliner Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

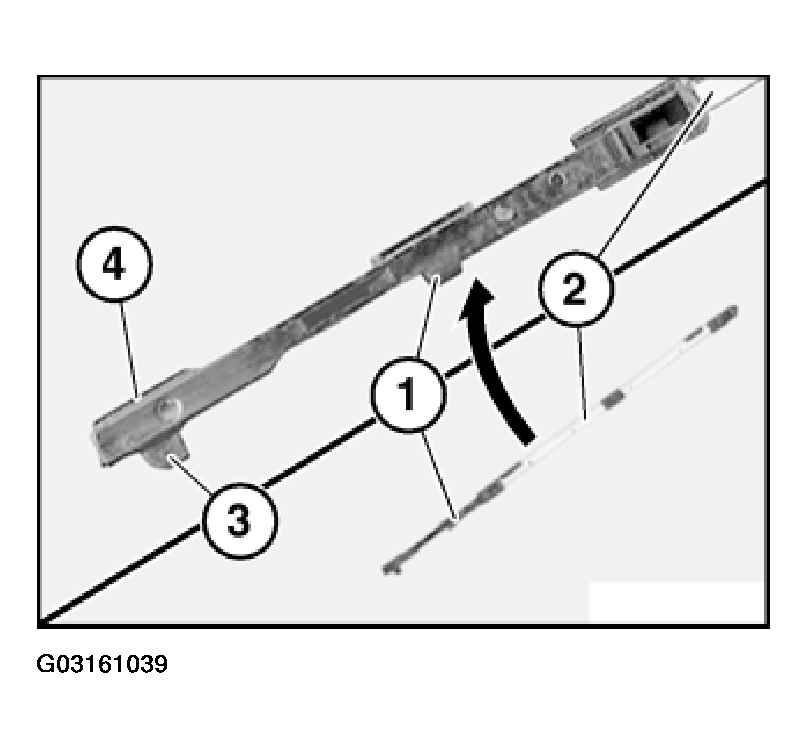

Removal Of Headliner Mechanism With "Flexible Fulcrum Pad"(Only On Right Side):

NOTE: The flexible fulcrum pad (1) is securely attached to the rail (2) (cannot be removed).

3 - Outer guide

4 - Inner guide

Fig 2: Identifying Flexible Fulcrum Pad

Courtesy of BMW OF NORTH AMERICA, INC.

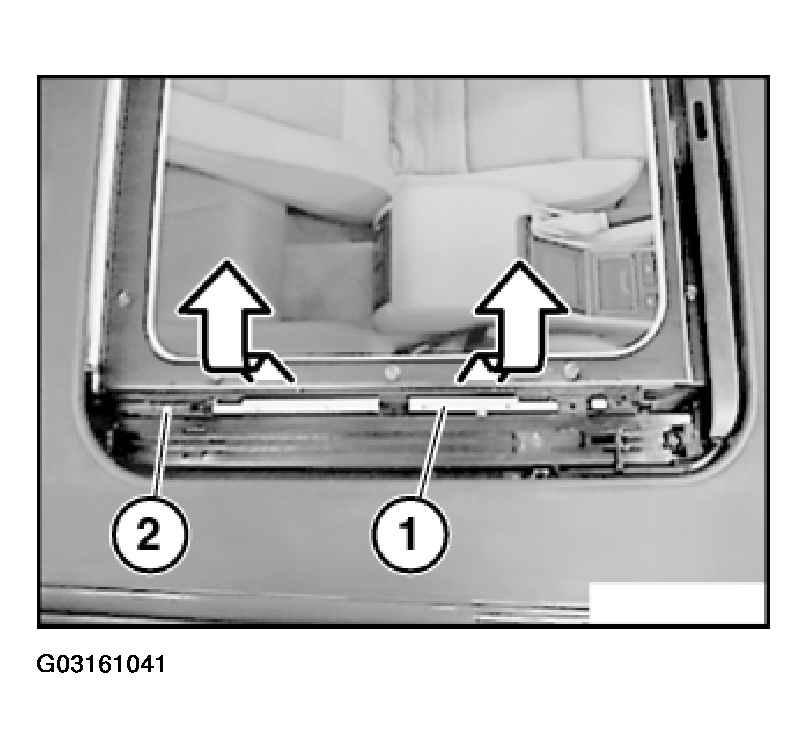

Right side:

Tilt headliner mechanism inwards at front and back of strut (1) and pull outwards (this produces an audible click on flexible fulcrum pad).

Fig 3: Removing Headliner Mechanism (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

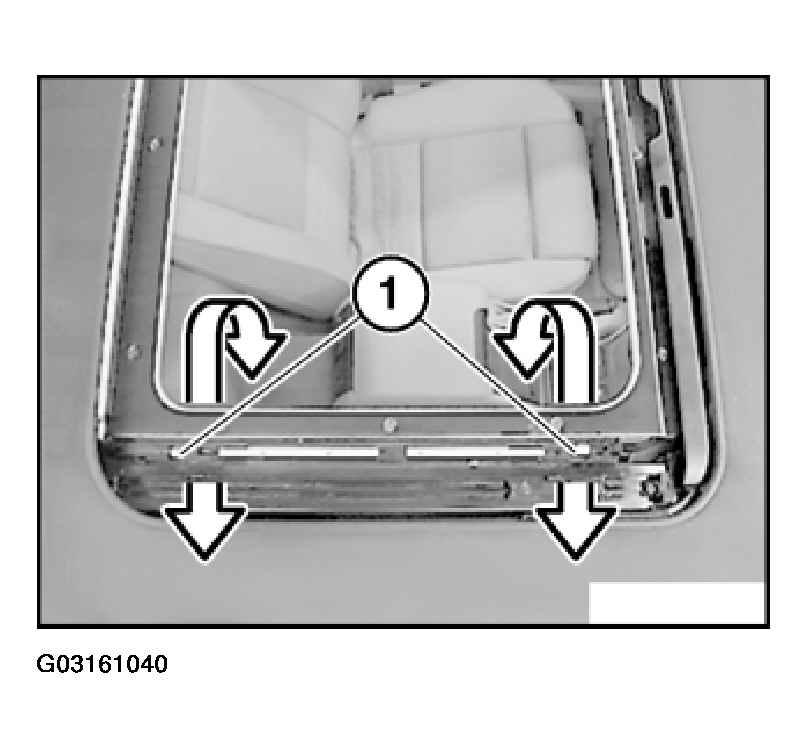

Right side:

Tilt headliner mechanism (1) outwards with flexible fulcrum pad (2) and pull inwards to remove from guide channel.

Fig 4: Removing Headliner Mechanism (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

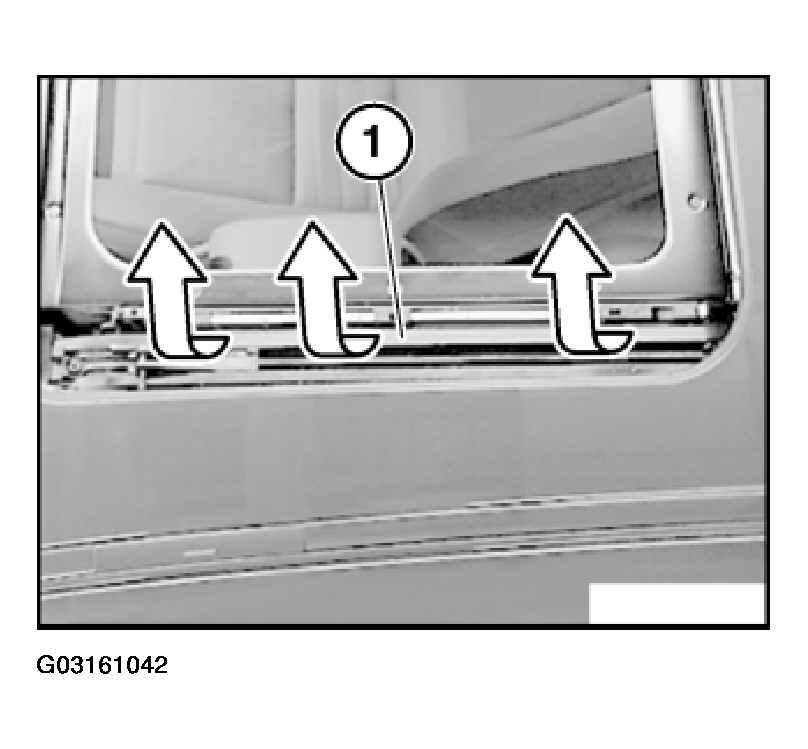

Left side:

Unfasten headliner mechanism (1) and lift inwards/upwards to remove from guide channel.

Fig 5: Removing Headliner Mechanism From Guide Channel (Left Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Of Headliner Mechanism With "Flexible Fulcrum Pad"(Only On Right Side):

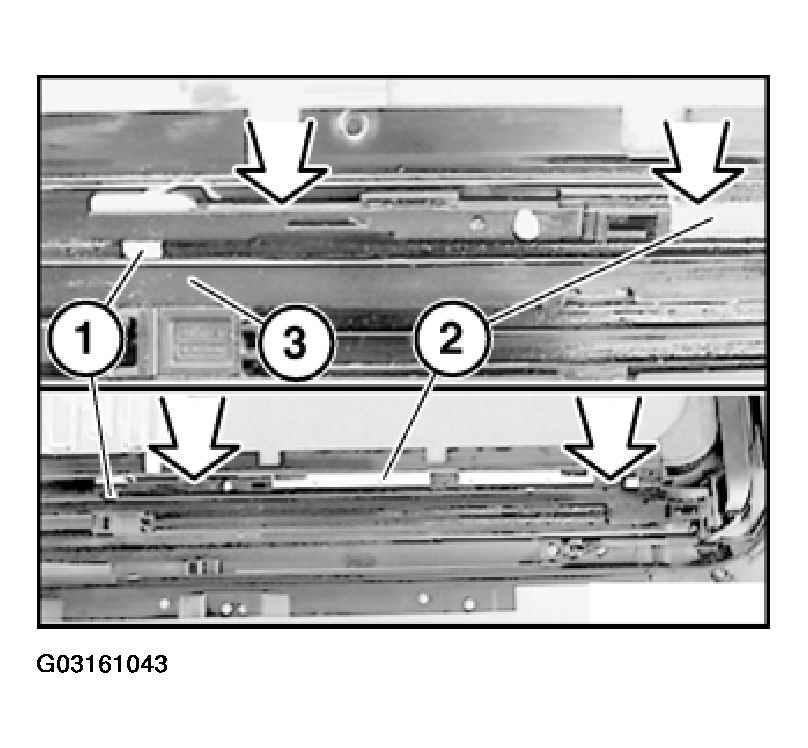

NOTE: To illustrate more clearly, installation shown with a removed glass slide/tilt sunroof.

Install the guide (1) on the flexible fulcrum pad and rest of headliner mechanism (2) facing outwards in guide channel (3).

Fig 6: Installing Headliner Mechanism (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

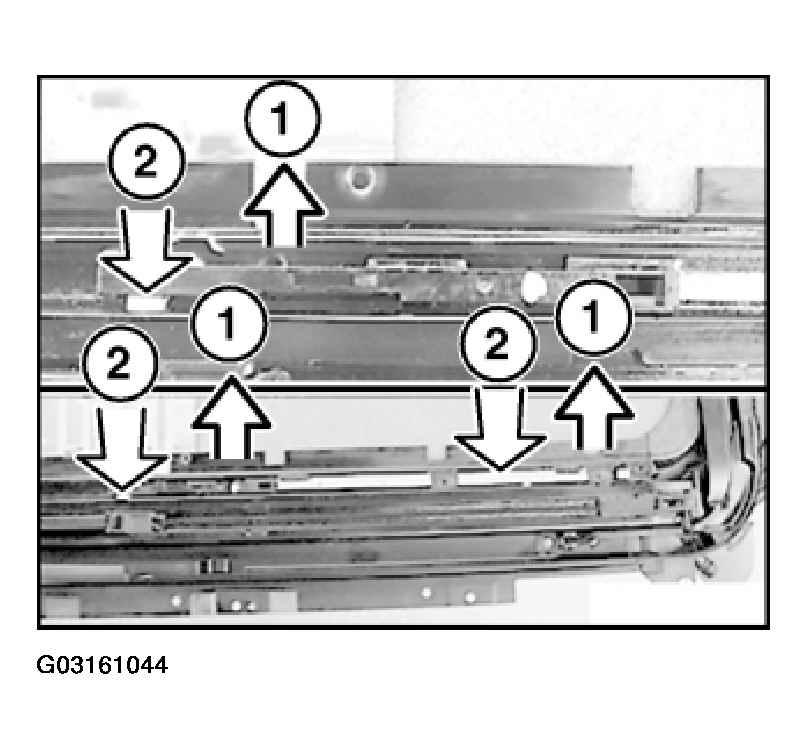

Press headliner mechanism inwards (1) and press outer guide downwards (2) into the guide channel.

Fig 7: Installing Headliner Mechanism (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
