54 12 136 Removing and installing/replacing headliner for glass slide/tilt sunroof cover

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Installation:

If necessary, apply light coat of Renax GL1 (Fuchs) grease to guide duct.

Removing left and right rubber gaiter for glass slide/tilt sunroof cover,

refer to 54 12 015 REPLACING LEFT OR RIGHT RUBBER GAITERS FOR GLASS SLIDE/TILT SUNROOF .

Move mechanism into zero setting.

Slowly pull headliner forwards as far as it will go.

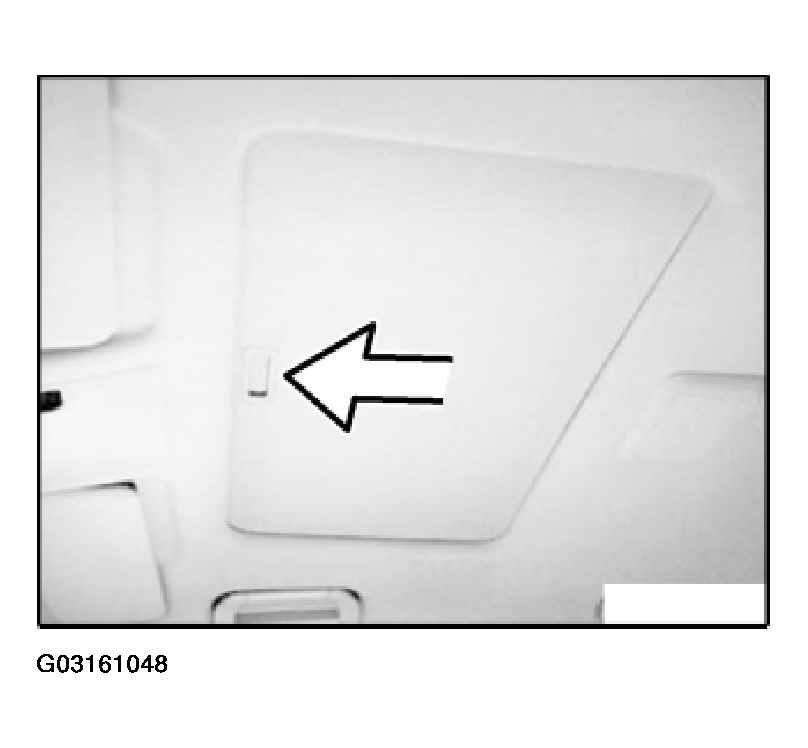

Fig 1: Pulling Headliner Forwards

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left/right screws (1).

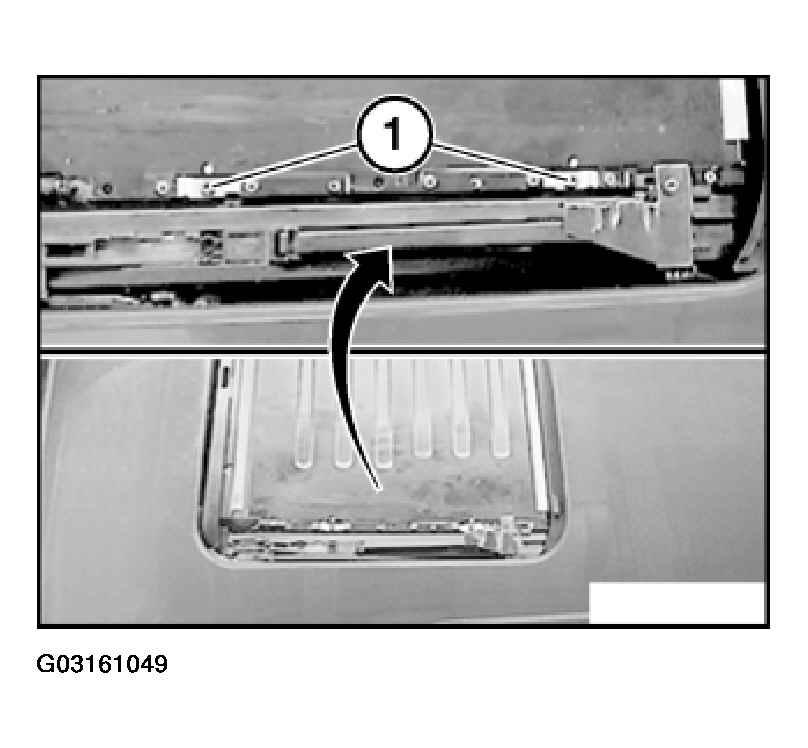

Fig 2: Unfastening Headliner Left/Right Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift headliner upwards to remove.

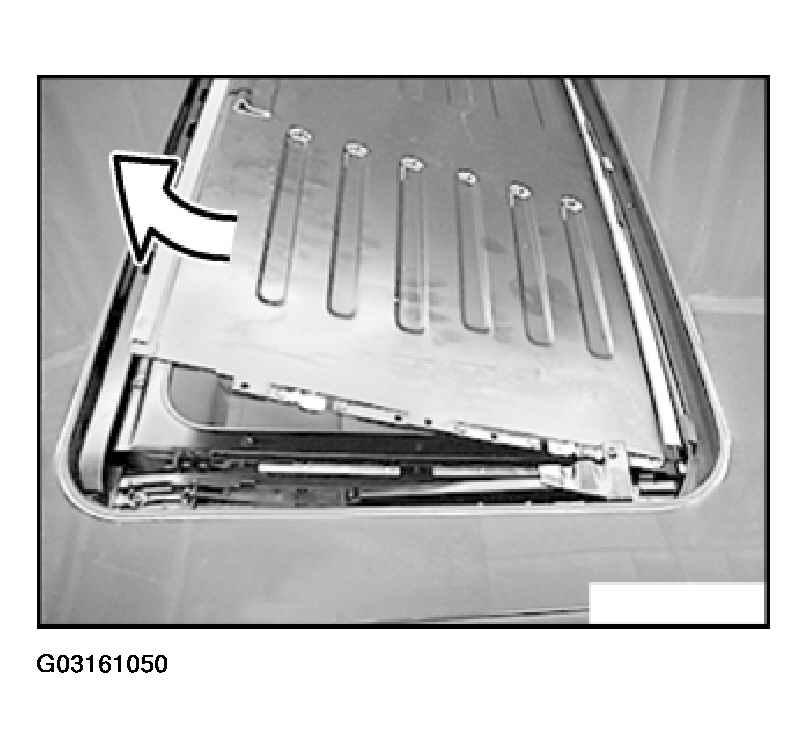

Fig 3: Removing Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert headliner (1) in support (2) from behind/left.

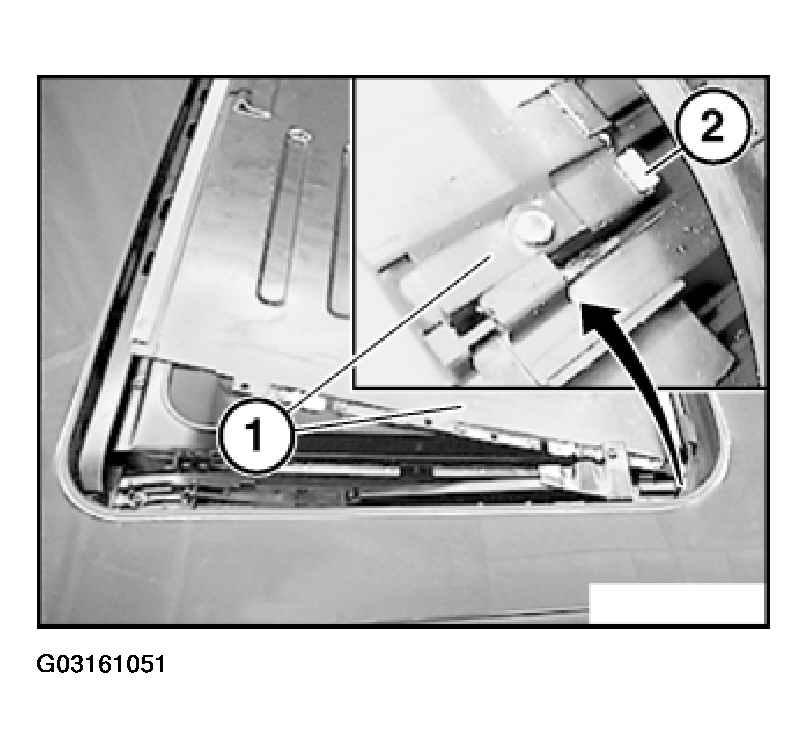

Fig 4: Inserting Headliner

Courtesy of BMW OF NORTH AMERICA, INC.
