52 24 005 Removing and installing/replacing rear seat (normal)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

For version with integrated Child seats, refer to:

Additional work with integrated Child seats, refer to 52 23 511 ADDITIONAL WORK WITH INTEGRATED CHILD SEATS .

Only Version Without Integrated Child Seats:

Unclip left/right rear seat and lift out.

Installation:

Insert seatbelt locks in recesses in rear seat.

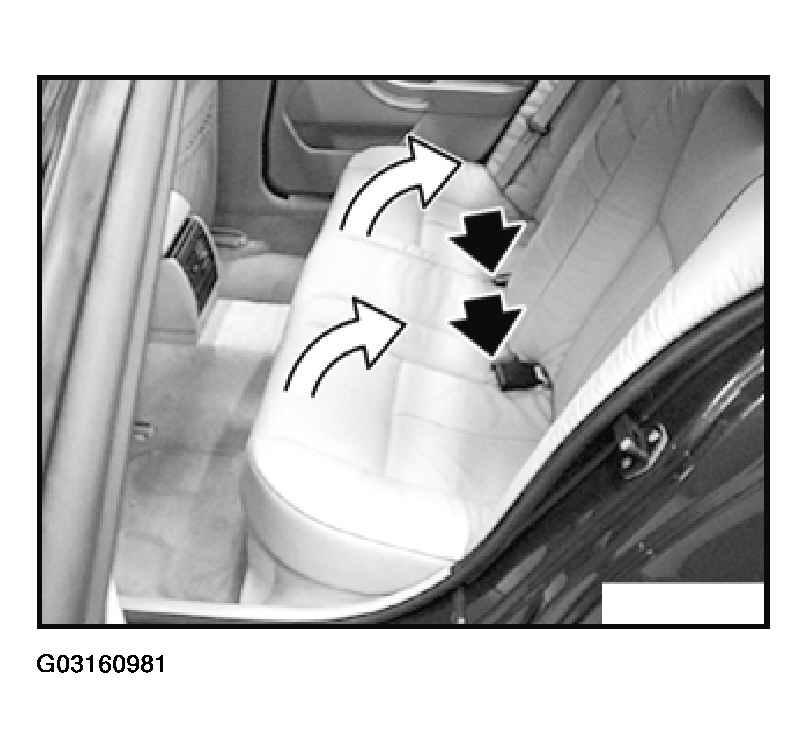

Fig 1: Removing Rear Seat
G03160981Courtesy of BMW OF NORTH AMERICA, INC.
