52 23 511 Additional work with integrated Child seats

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Fold up Child seat (1) and unfasten left/right expansion rivets (2).

NOTE: Remove pins of expansion rivets (2) from vehicle.

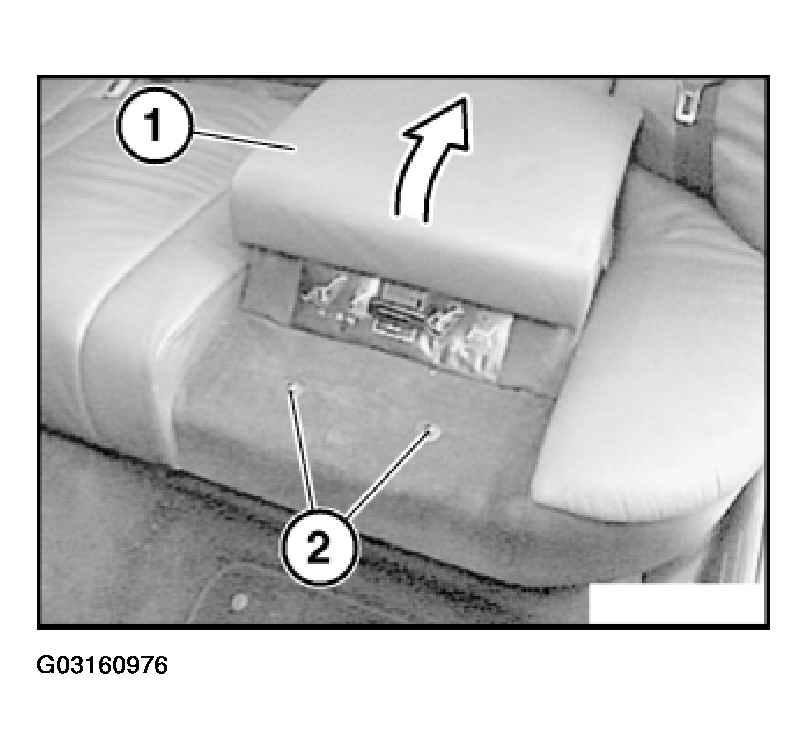

Fig 1: Removing Expansion Rivet Pins

G03160976

Courtesy of BMW OF NORTH AMERICA, INC.

Press down retaining plate (1) and turn left/right locking pin (2) by 180°.

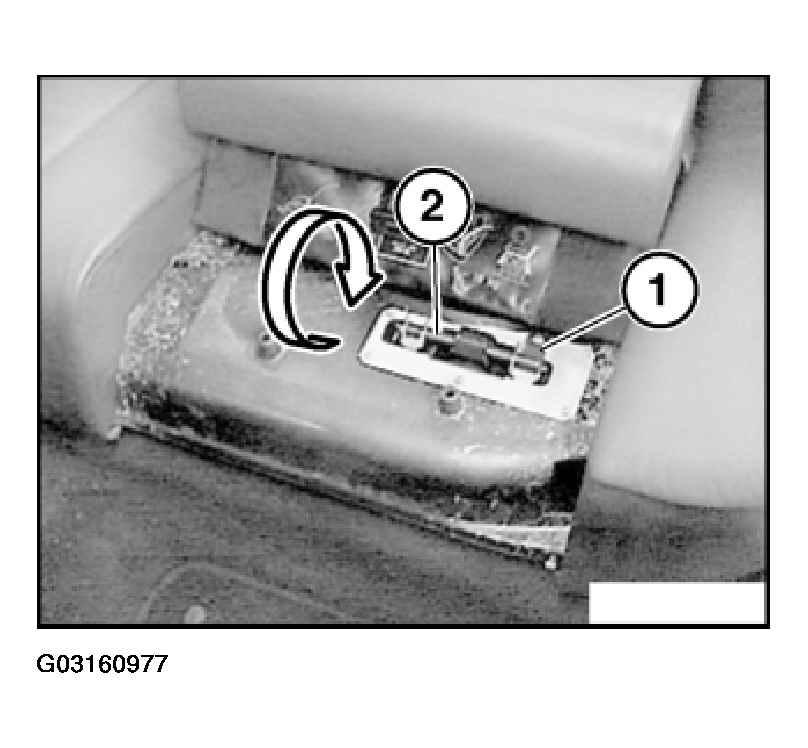

Fig 2: Pressing Down Retaining Plate

G03160977

Courtesy of BMW OF NORTH AMERICA, INC.

Press down retaining plate (1) and pull out left/right locking pin (2) until lug (3) is free.

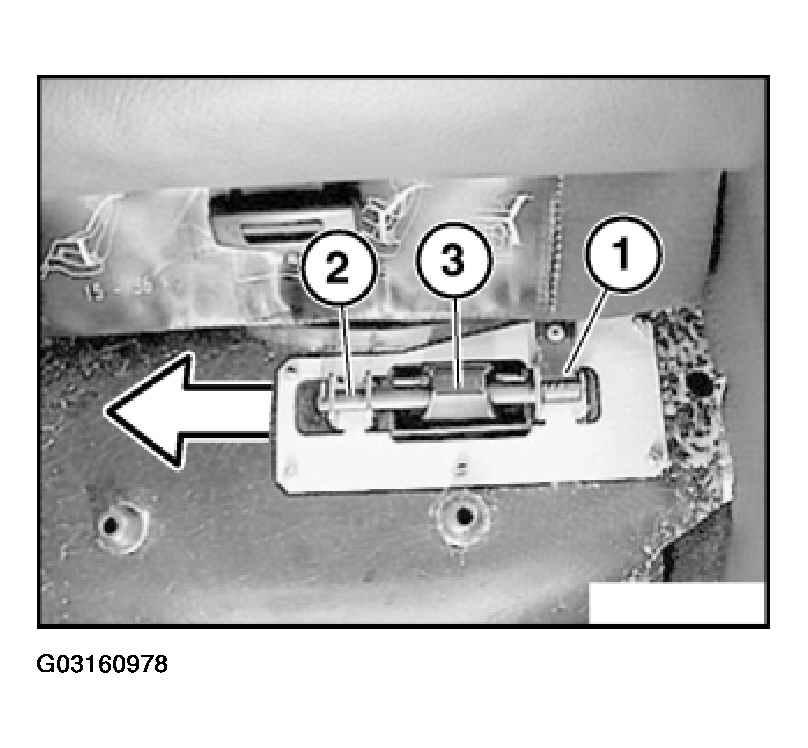

Fig 3: Pulling Out Left/Right Locking Pin

G03160978

Courtesy of BMW OF NORTH AMERICA, INC.

Lift left/right rear seat upward out of lugs (1).

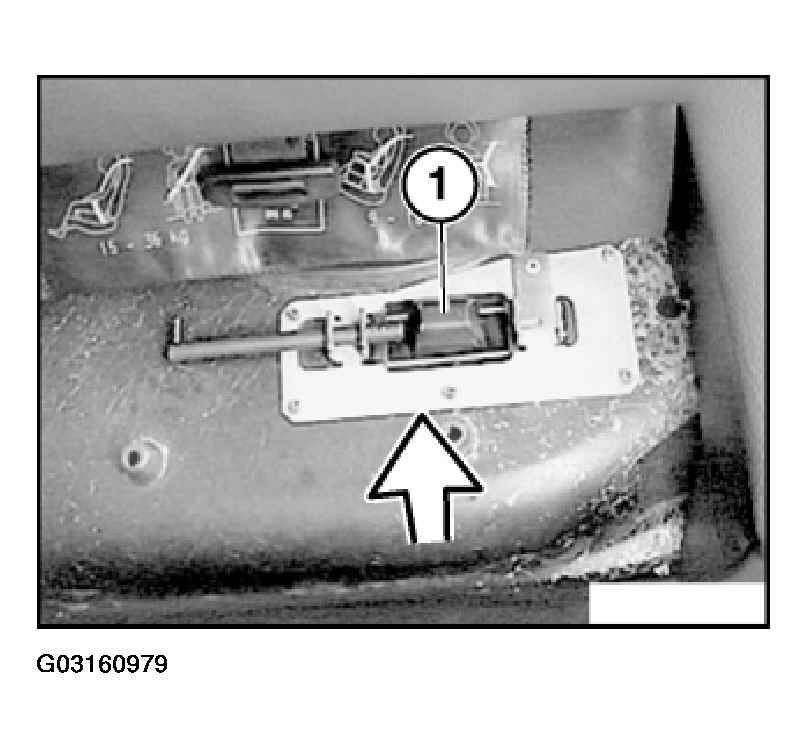

Fig 4: Lifting Left/Right Child Seat Upward Out Of Lugs

G03160979

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out rear seat and remove from vehicle.

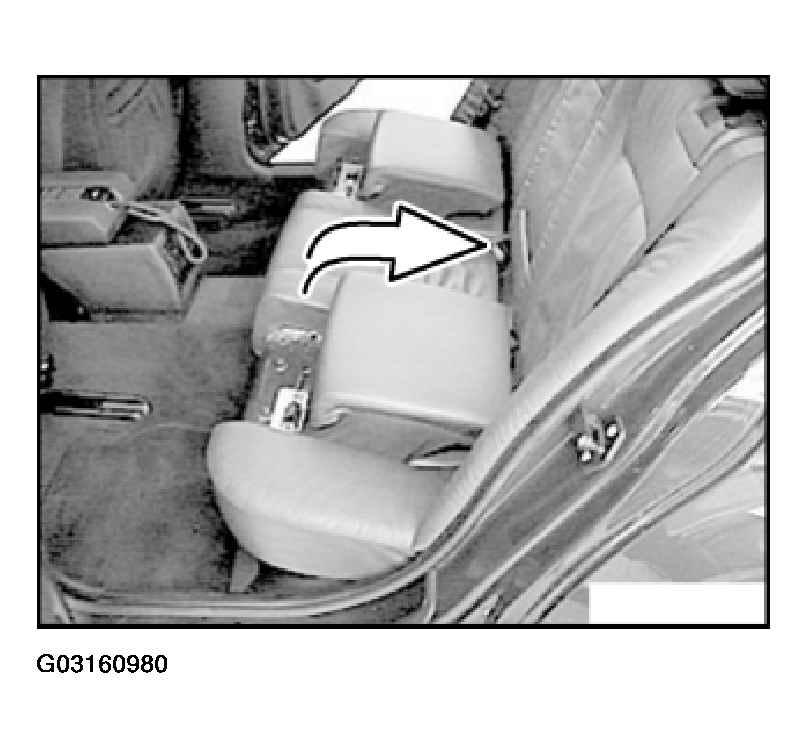

Fig 5: Lifting Out Child Seat

G03160980

Courtesy of BMW OF NORTH AMERICA, INC.
