Removal Of Complete Seat Cushion
Remove both seat rails, refer to 52 13 010 REMOVING AND INSTALLING/REPLACING BOTH SEAT RAILS ON LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) .
Remove inside cover, refer to 52 13 041 REMOVING AND INSTALLING/REPLACING INNER COVER ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/MANUAL) .
Remove actuating unit, refer to 52 13 015 REMOVING AND INSTALLING/REPLACING CONTROLS ON LEFT/RIGHT FRONT SEAT (NORMAL/MANUAL) .

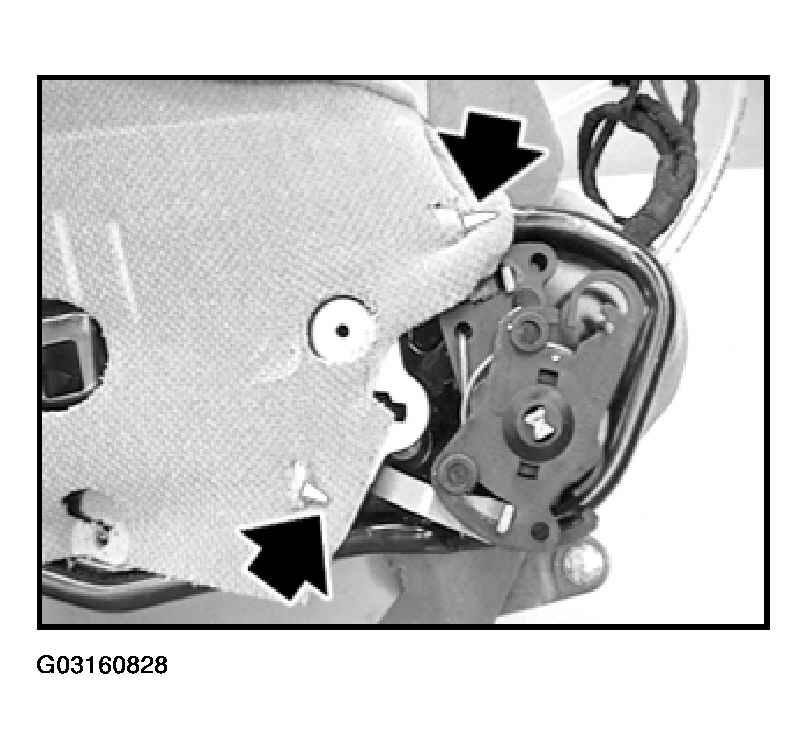

Lift left/right seat cover out of cover clips.
Installation:
End of cover must not be folded or frayed (function error).

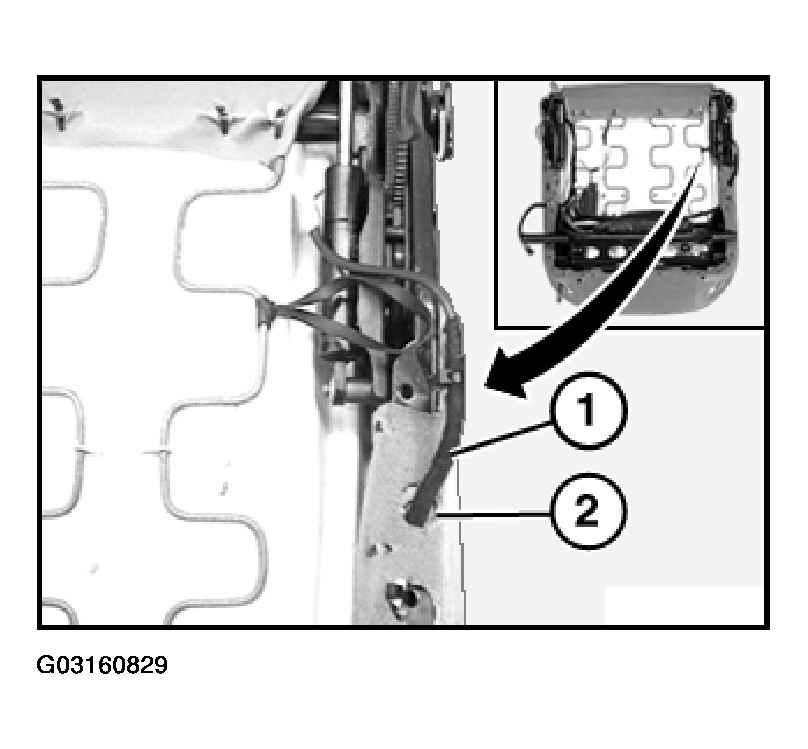

Remove cable (1) for seatbelt tensioner from inside seat cover (2).
Model With Lumbar Supports:

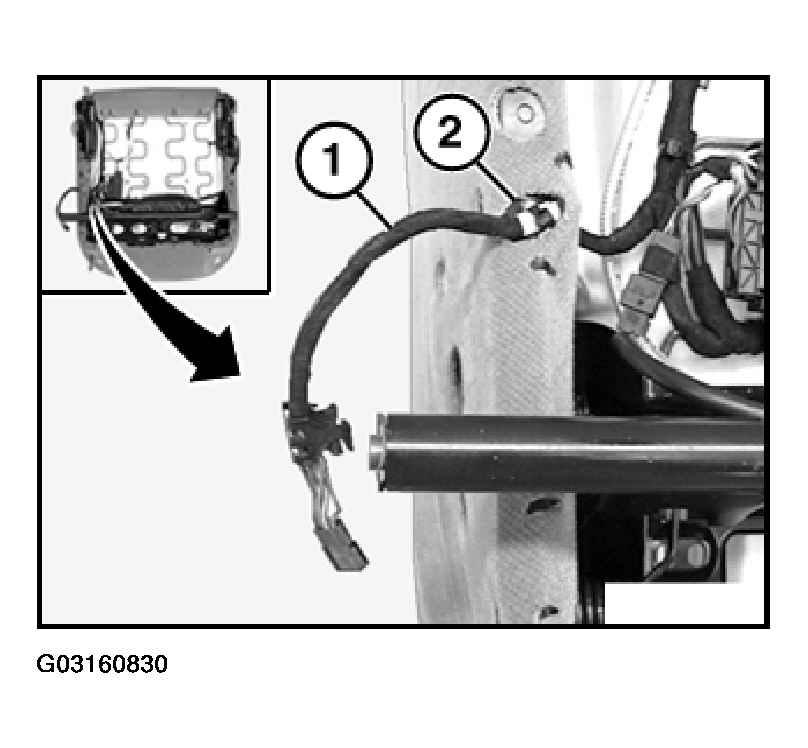

Extract cable (1) from seat cover (2).
Version With Seat Heating:

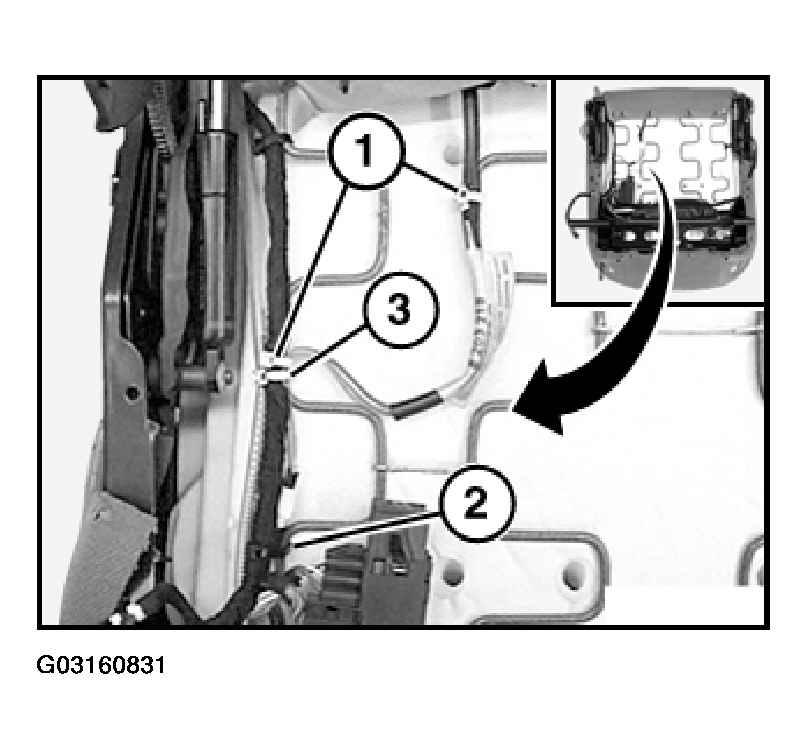

Unfasten cable tie (1) and remove connector (2).
Model With Lumbar Supports:
Do not unfasten cable tie (3) in region of hose reinforcement.

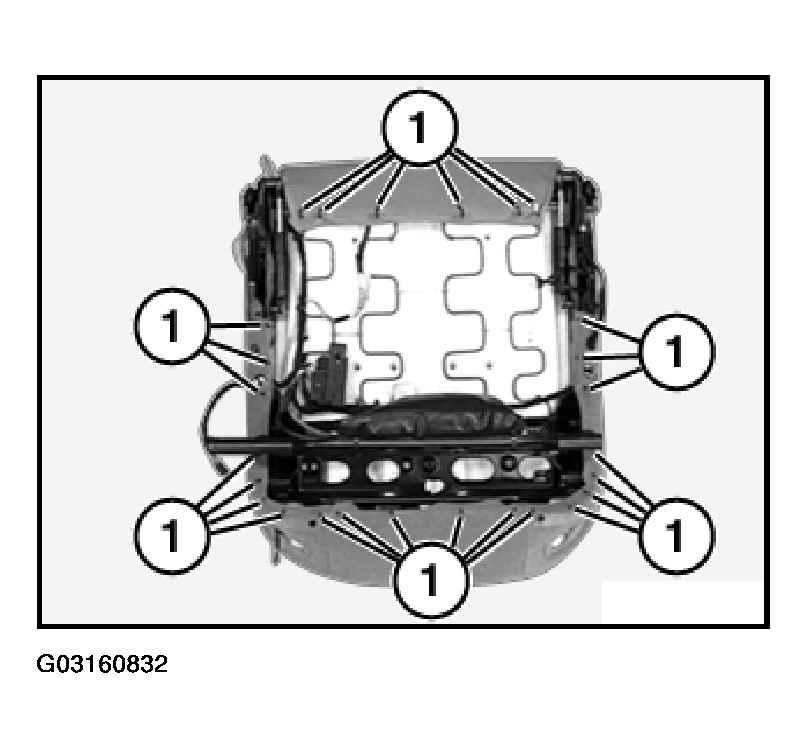

Disconnect seat cover from all cover clips (1) and remove together with foam rubber section (support).
