52 17 380 Removing and installing/replacing headrest support on left or right front seat (comfort)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Removing headrest, refer to 52 17 390 REMOVING AND INSTALLING OR REPLACING FRONT LEFT OR RIGHT HEAD RESTRAINTS (COMFORT) .

Remove bottom of rear panel, refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .

Remove top of cover from claw-type cover clips.

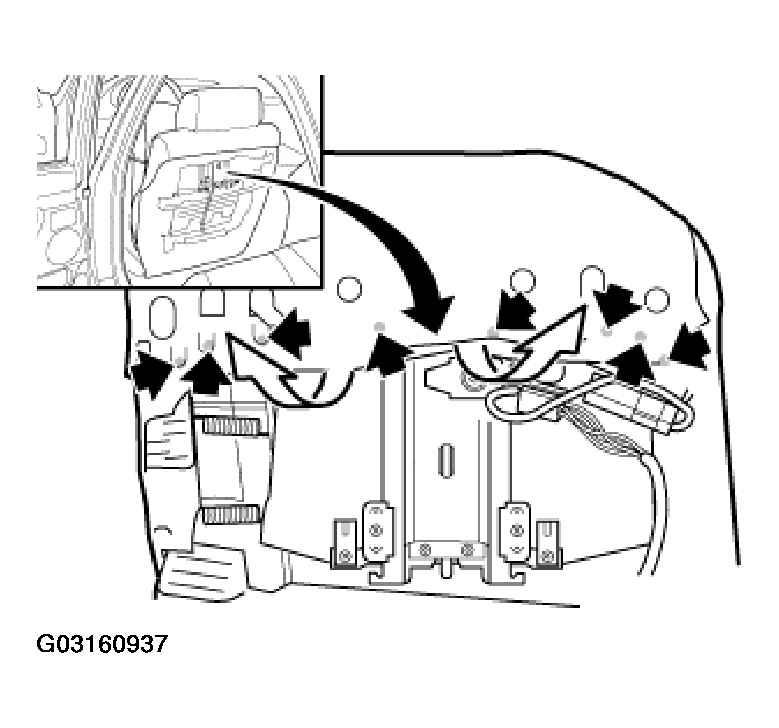

Fig 1: Removing Top Of Seat Cover From Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Multifunction Headrest:

If necessary, remove connector.

Installation:

Check function.

The cable must not be under tension.

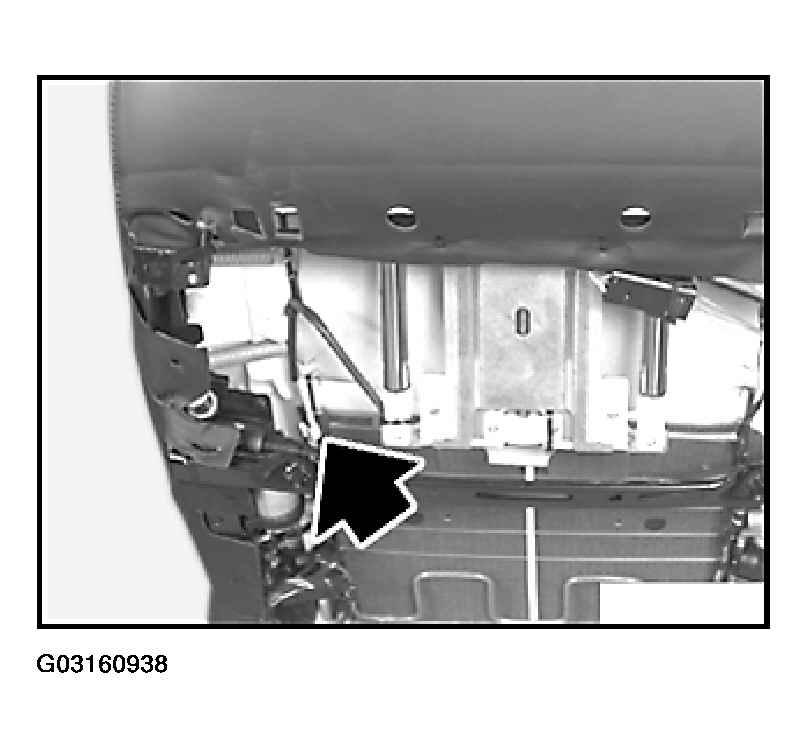

Fig 2: Removing Multifunction Headrest Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

Press cover and support upwards, unfasten screw (1) and pull complete headrest support (2) with semi-circular shell section (3) downwards to remove.

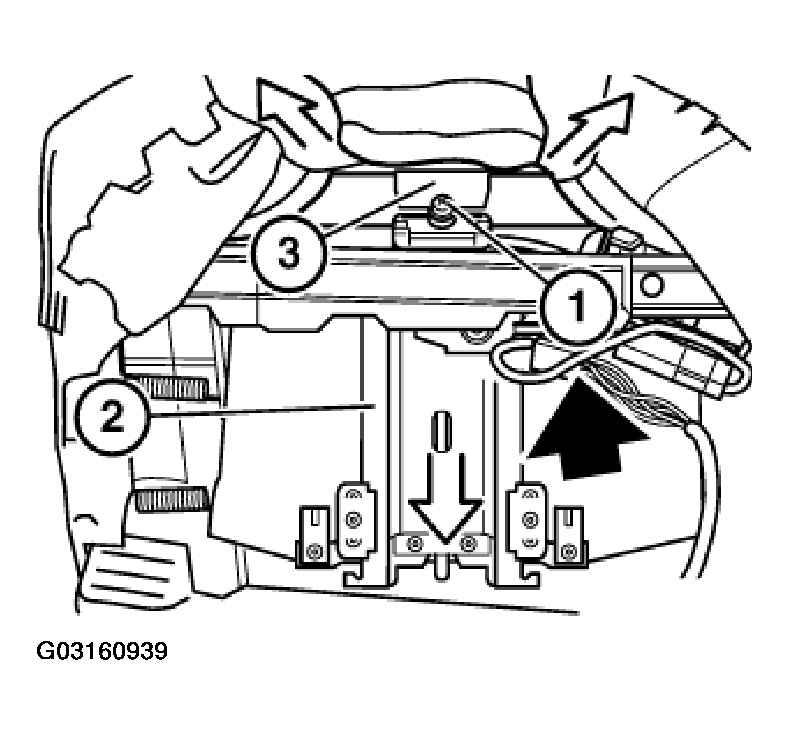

Fig 3: Removing Headrest Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach semi-circular shell section (3) in headrest support (2), install and secure with screw (1).

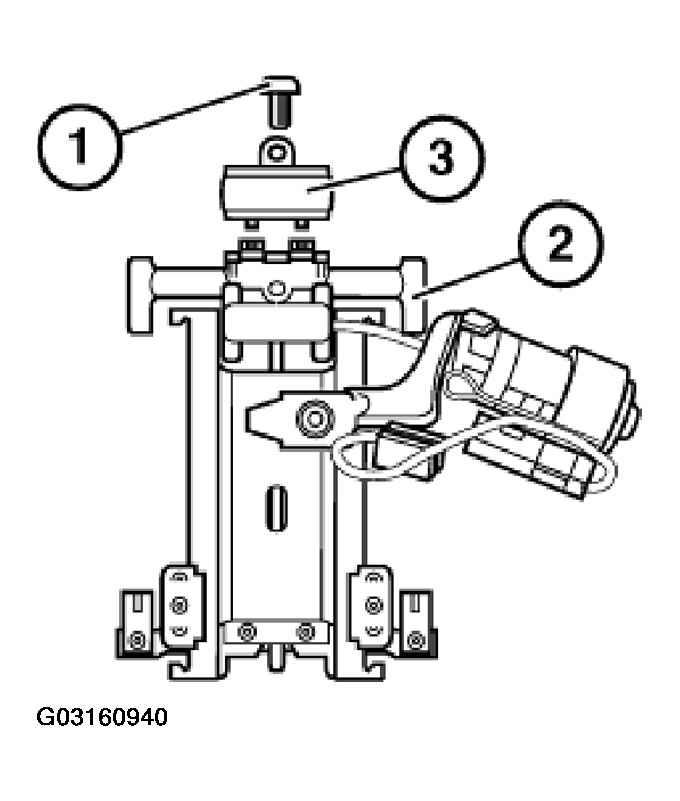

Fig 4: Attaching Semi-Circular Shell Section To Headrest Support

Courtesy of BMW OF NORTH AMERICA, INC.
