52 17 390 Removing and installing or replacing front left or right head restraints (comfort)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Pull headrest upwards firmly.

If necessary, pull headrest upwards into top position and, at the same time, tilt forwards and backwards.

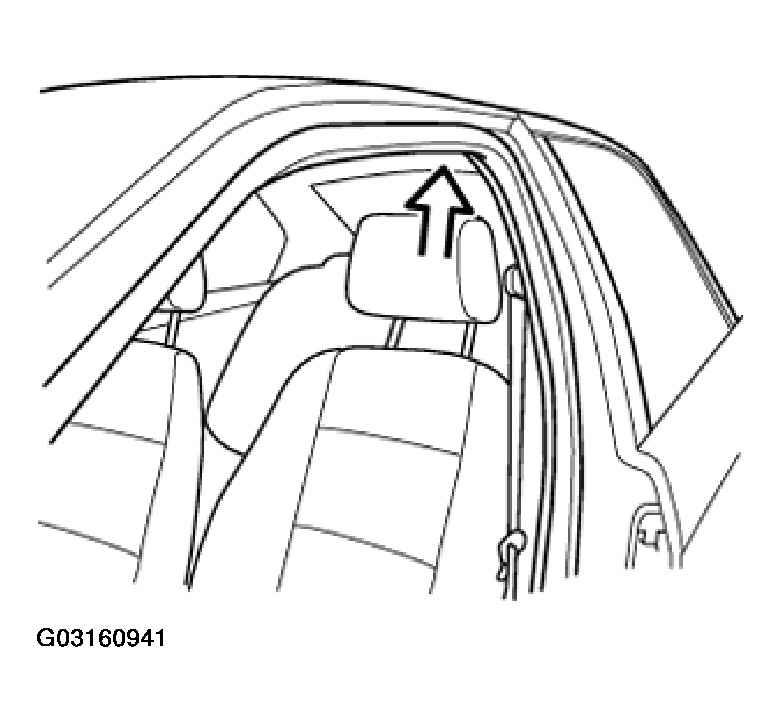

Fig 1: Removing Headrest

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Multifunction Headrest:

CAUTION: If the multifunction headrest is replaced with a normal headrest, the power supply must be interrupted. To do this, remove rear panel, refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .

Version With Multifunction Headrest:

If necessary, remove connector.

Installation:

Check function.

The cable must not be under tension.

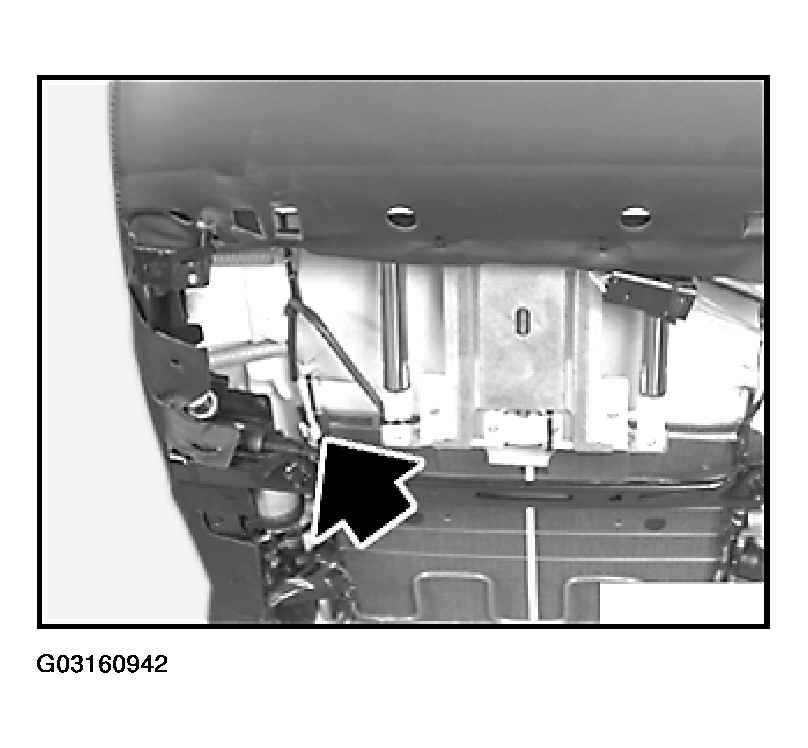

Fig 2: Removing Multifunction Headrest Connector

Courtesy of BMW OF NORTH AMERICA, INC.
