52 23... Repair solution for left or right Child seat mechanism

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing rear seat, (sedan) refer to 52 23 511 ADDITIONAL WORK WITH INTEGRATED CHILD SEATS or (touring) refer to 52 26 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (THROUGH-LOADING) .

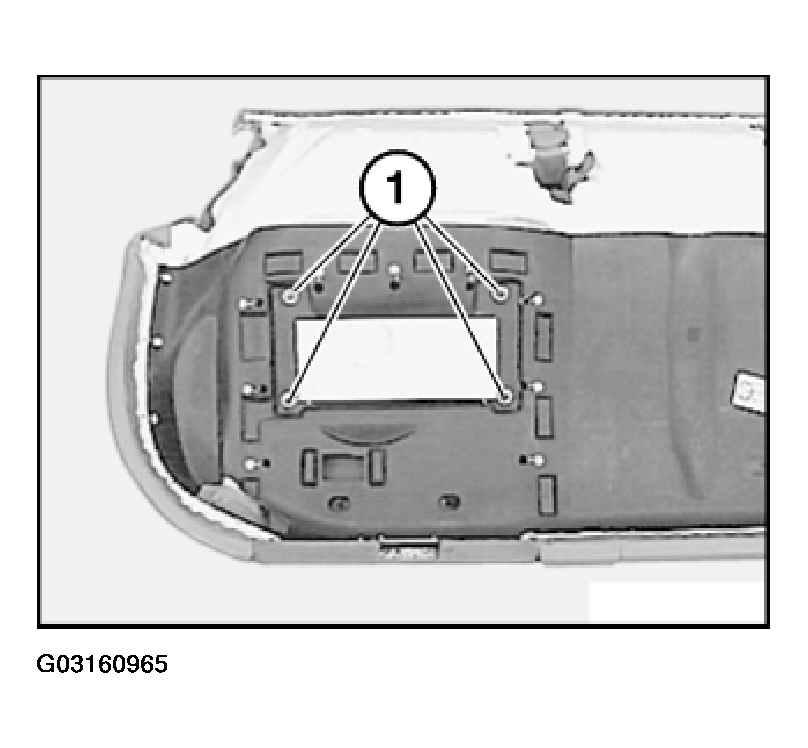

Unfasten nuts (1) and pull Child seat off rear seat.

Fig 1: Removing Child Seat From Rear Seat

G03160965

Courtesy of BMW OF NORTH AMERICA, INC.

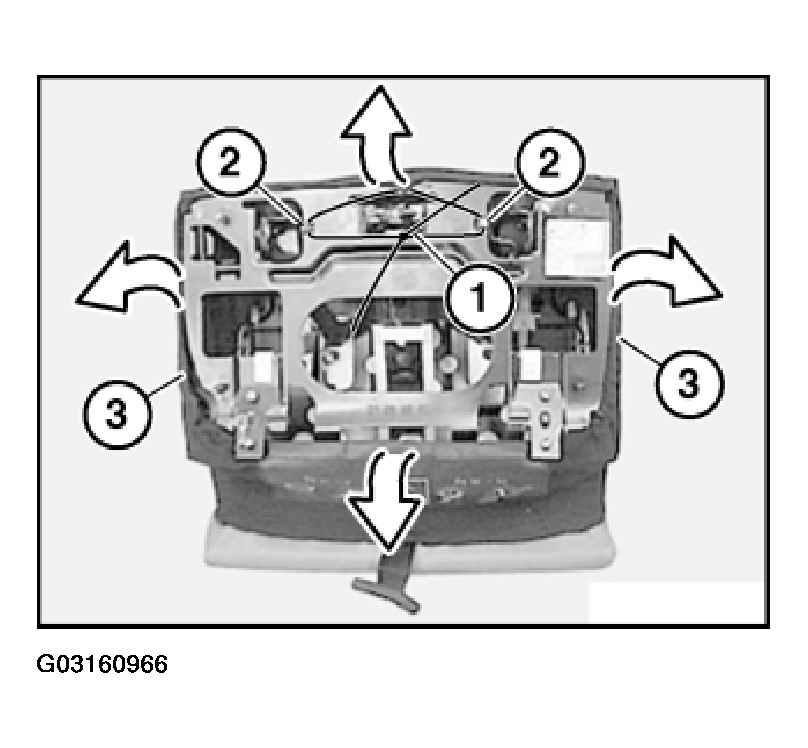

Untie steel cable (1) and lift out of lugs (2). Lift out cover (3) on all sides.

Fig 2: Disconnecting Steel Cable

G03160966

Courtesy of BMW OF NORTH AMERICA, INC.

Replace Loop Cable:

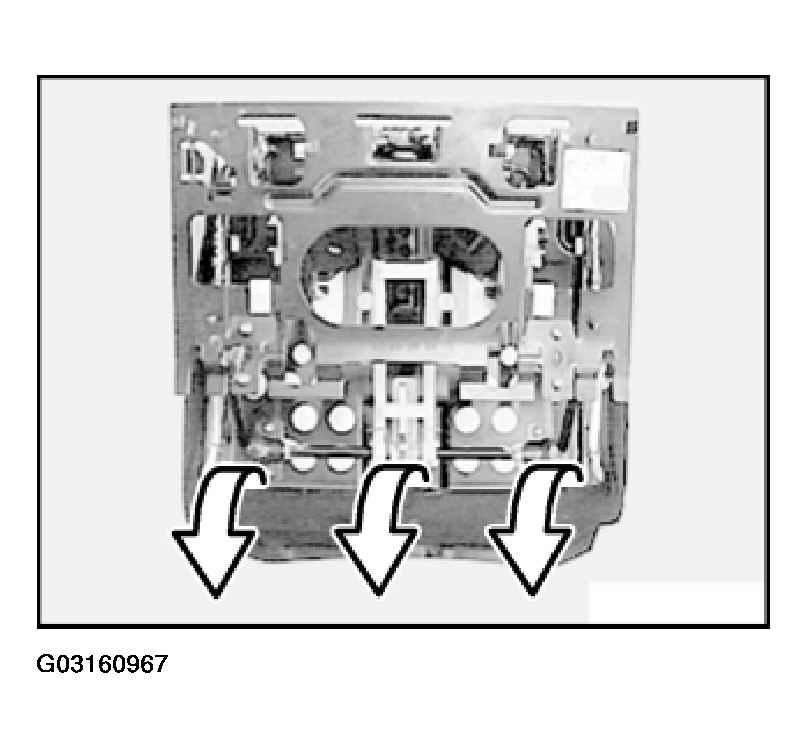

Unhook cover at front.

Fig 3: Unhooking Cover

G03160967

Courtesy of BMW OF NORTH AMERICA, INC.

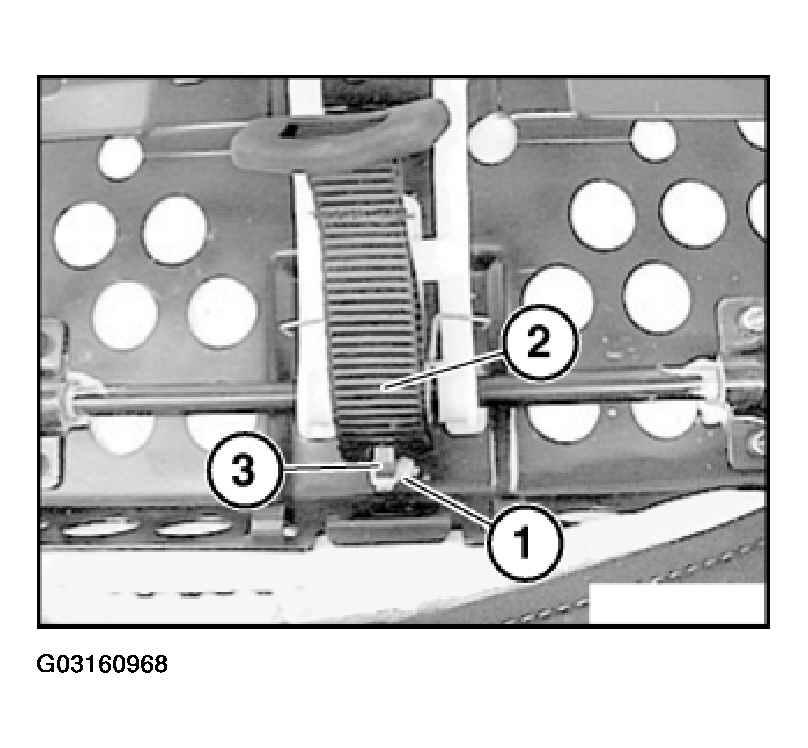

Unfasten cable ties (1) and pull loop cable (2) off bracket (3).

Fig 4: Removing Loop Cable

G03160968

Courtesy of BMW OF NORTH AMERICA, INC.

Replace Central Clip:

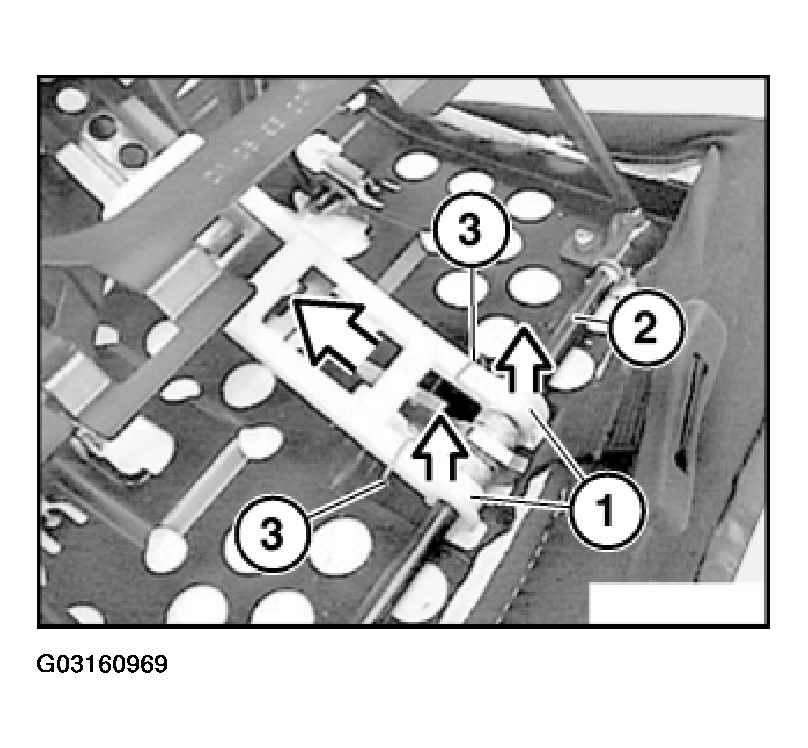

Unclip central clip (1) from rod (2) and thread out of spring (3).

Fig 5: Unclipping Central Clip From Rod

G03160969

Courtesy of BMW OF NORTH AMERICA, INC.

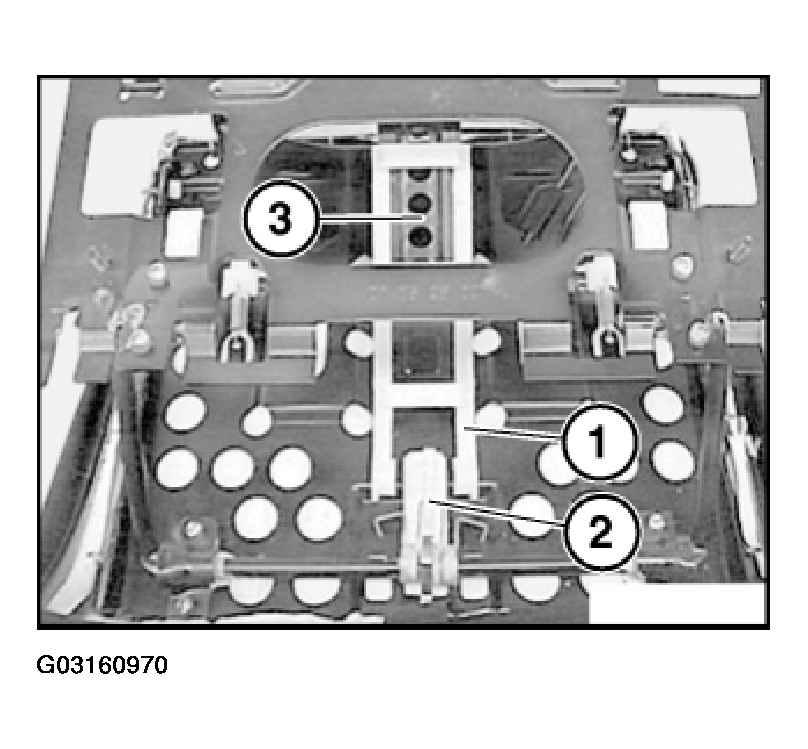

Push up central clip (1) until detent (2) is free, then pull off guide (3).

Fig 6: Removing Central Clip

G03160970

Courtesy of BMW OF NORTH AMERICA, INC.
